BEA 10FLYKITB - Passive Infrared Sensor, Field Adjustable Detection Zone, 0 to 180 Degree Mounting Angle, 12 to 24 V AC/DC BEA-10FLYKITB

BEA 10FLYKITB Fly Kit Passive Infrared Request-to-Exit Sensor with Field Adjustable Detection Zone

(No reviews yet) Write a Review

Model: 10FLYKITB
Selected Passive Infrared Sensor is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$142.58
$93.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10FLYKITB Fly Kit Passive Infrared Request-to-Exit Sensor with Field Adjustable Detection Zone

Industry’s Most Compact PIR Sensor for Professional Access Control

The BEA 10FLYKITB Fly Kit represents the industry’s most compact passive infrared (PIR) sensor specifically designed for request-to-exit (REX) applications. This versatile sensor operates on 12 to 24V AC/DC power and features a field adjustable detection zone with 0 to 180 degree mounting angle capability. The low-profile design allows for surface mounting above any door or recessed ceiling installation, making it an ideal solution for managing building security and traffic flow in commercial environments.

Professional Features & Benefits

  • Compact Design: Industry’s most compact PIR sensor design for discreet installation in space-constrained applications.
  • Flexible Power Options: 12 to 24V AC/DC operation accommodates various access control system requirements.
  • Adjustable Detection Zone: Field adjustable detection zone with 0 to 180 degree mounting angle for precise coverage customization.
  • Versatile Installation: Surface mount above doors or recessed ceiling installation options for architectural flexibility.
  • Request-to-Exit Optimization: Specifically engineered for REX applications to enhance building security and traffic management.
  • Low-Cost Solution: Cost-effective sensor option without compromising professional performance standards.
  • Passive Infrared Technology: Reliable PIR detection technology for consistent occupancy sensing and exit request detection.

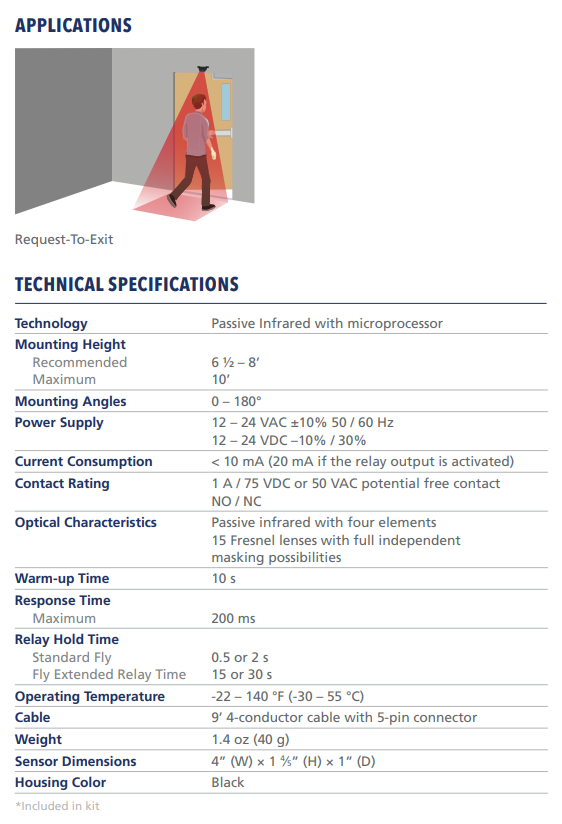

Technical Specifications

  • Technology: Passive Infrared
  • Mounting Height: Recommended: 78 - 96 in (6.5 ft - 8 ft); Maximum: 120 in (10 ft)
  • Mounting Angles: 0 deg. - 180 deg.
  • Power Supply: 12 - 24 VAC; +/-10%; (50/60 Hz) | 12 - 24 VDC; -10% / 30%
  • Current Consumption: < 10 mA (20 mA if the relay output is activated)
  • Contact Rating: 1 A / 75 VDC or 50 VAC potential free contact NO / NC
  • Optical Characteristics: Passive infrared with four elements; 15 Fresnel lenses with full independent masking possibilities
  • Warm-up Time: 10 s
  • Response Time: Maximum: 200 ms
  • Relay Hold Time: Standard Fly: 0.5 or 2 s | Fly Extended Relay Time: 15 or 30 s
  • Operating Temperature: -22 deg. F - 140 deg. F (-30 deg. C - 55 deg. C)
  • Cable: 108 in (9 ft) 4-conductor cable with 5-pin connector
  • Weight: 1.4 oz (40 g)
  • Sensor Dimensions: 4.0 in (W) x 1.8 in (H) x 1.0 in (D)

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm voltage (12 to 24V AC/DC) and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including detection zone adjustment per application requirements.
  6. Restore power and test all functions including normal operation, detection response, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Request-to-Exit Detection for Access Control
  • Healthcare Facility Access Management
  • Educational Institution Safety Systems
  • Retail Loss Prevention Systems
  • Industrial Facility Monitoring
  • Emergency Exit Compliance Applications

Why Choose BEA Quality?

BEA Fly Kit sensors deliver professional-grade reliability with compact passive infrared technology specifically optimized for request-to-exit applications. The field adjustable detection zone and flexible mounting options provide versatile installation capabilities for demanding commercial access control environments. Engineered for consistent performance in building security and traffic management applications where dependable occupancy detection is essential.

Product Specs

Product Type:
Presence Sensor
Series:
Fly Kit
Subcategory:
Sensors, Switches, Relays and Timers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Technology:
Passive Infrared
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA 10FLYKITB – Frequently Asked Questions

1) What voltage does the BEA Fly Kit REX sensor run on, and will it work off my existing access control power supply?
The Fly Kit PIR sensor runs on 12 to 24 VAC (+/-10%, 50/60 Hz) or 12 to 24 VDC (-10% / +30%), so it drops onto the same 12V or 24V supply already feeding most electric strikes and mag locks. Draw is under 10 mA, rising to 20 mA when the relay output is energized, which is small enough that it rarely changes your power supply sizing.
2) How high above the door can a BEA Fly Kit PIR sensor be mounted?
Mount it between 78 and 96 inches (6.5 to 8 feet) for the recommended coverage, with 120 inches (10 feet) the absolute maximum. Above 10 feet the detection pattern is out of spec. On a standard 80 inch opening that puts the sensor just above the frame, which is the normal REX position.
3) Can I aim the Fly Kit sensor so it only picks up someone leaving and not people walking past the door?
Yes. The detection zone is field adjustable and the housing mounts at any angle from 0 to 180 degrees, so you can rotate the pattern off the cross-traffic path. Beyond that, the optics are four-element passive infrared behind 15 Fresnel lenses, and every one of those lenses can be masked independently, so you can blank out individual segments (a nearby corridor, a stairwell) instead of just tilting the whole head.
4) Will the BEA Fly Kit sensor switch my electric strike directly, or do I need a relay in between?
The output is a potential free (dry) contact available as NO or NC, rated 1 A at 75 VDC or 50 VAC. It switches your circuit, it does not supply power to it. A 12V or 24V strike drawing under 1 amp can be run through it; anything above that rating, or any line-voltage load, needs an interposing relay.
5) How long does the Fly Kit sensor hold the relay closed after it detects someone?
The standard Fly gives you a choice of 0.5 or 2 seconds of relay hold time. If you need the lock to stay released longer, for example on a door with a delayed egress panel or a slow closer, the Fly Extended Relay Time version holds 15 or 30 seconds. Pick the version at order time, since hold time is what separates them.
6) Can I install a BEA Fly Kit REX sensor in the ceiling instead of on the door frame?
Both are supported. The low profile housing surface mounts above the opening, or recesses into the ceiling when the architect does not want hardware visible on the frame. Ceiling mounting still has to respect the 120 inch maximum mounting height, so a high open ceiling is not a valid location, drop the sensor to within 10 feet of the floor.
7) How much cable comes with the BEA Fly Kit, and do I need to splice at the sensor?
A 108 inch (9 foot) 4-conductor cable with a 5-pin connector is supplied with the kit, so the connection at the sensor end is plug-in rather than a field splice. You make your joints at the controller or in a junction box up to 9 feet away; a longer run means extending that cable yourself.
8) Can a BEA Fly Kit PIR sensor be used on an exterior door or in an unheated garage or loading dock?
Operating range is -22 deg F to 140 deg F (-30 deg C to 55 deg C), which covers unconditioned vestibules, parking structures, and loading docks in most of North America. Note it is a passive infrared device: it senses body heat against background temperature, so performance is at its weakest when ambient air is close to skin temperature.
9) Should I use a PIR request-to-exit sensor or a push button to release the lock on the way out?
A push button requires the person to find it and press it; a PIR REX like the Fly Kit releases hands free as someone approaches, which is what you want on high traffic corridors, carts and gurneys in healthcare, and anywhere a button would be a nuisance or an accessibility problem. The trade off is a detection zone you have to set up correctly, which is why the Fly Kit gives you 0 to 180 degree aiming and per-lens masking across its 15 Fresnel lenses. If the opening is low traffic and the exit path is obvious, a button is the simpler install.
10) How fast does the Fly Kit sensor react, and is there a delay after power up?
Response time is 200 ms maximum, so the lock releases before someone reaches the door at walking pace. On power up there is a 10 second warm up before the sensor is live, which matters during commissioning and after any power interruption: wait the full 10 seconds before you decide a unit is not detecting.
11) Is the BEA Fly Kit rated for commercial access control work or is it a residential device?
It is a commercial-duty device, sold as a single Fly Kit configuration with no finish or size options to choose between, and it is specified for building security and traffic management in commercial access control: healthcare, education, retail, and industrial facilities. There is one part to order, the 10FLYKITB.
