Prodatakey High Performance Re...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$139.20
$101.59

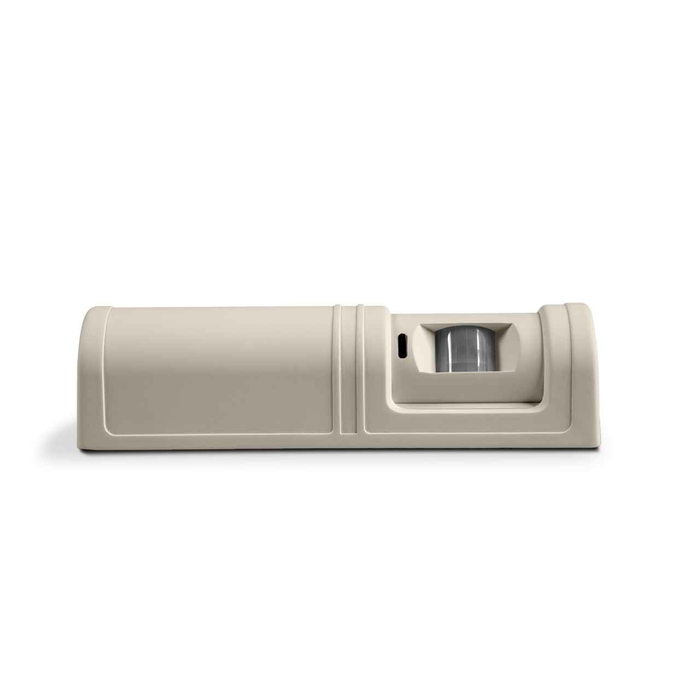

Prodatakey High Performance Request-to-Exit Passive Infrared Sensor 12-24VDC

Prodatakey High Performance Request-to-Exit Passive Infrared Sensor 12-24VDC

(No reviews yet) Write a Review

Model: REXHP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.20
$101.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Prodatakey High Performance Request-to-Exit Passive Infrared Sensor 12-24VDC

The ProdataKey REXHP High-Performance Request-to-Exit device allows free egress by cutting power to a maglock. The REXHP sensor utilizes a passive infrared sensor with qualified motion analysis. The REXHP features an adjustable time delay and is intended for indoor use only.

Specifications:

Supply Voltage 12-24VDC or VAC (50-60hz)
Supply Current 18-30mA@12-24VDC, 45-80mA@12-24VAC
Relay Output 2C Contact (NC/NO), 24VDC 1A max,0.6PFC
Detection Type Passive Infrared
Relay Hold Time 0.5-64 seconds
LED Indication Green
Range Coverage 12x5ft at 7ft high, 30x12ft at 15ft high. Not evaluated by UL.
Operating Temperature -20°F to 120°F (-29°C to 49°C)
Weight 0.4lbs (0.18kg)
Humidity 0-95% non-condensing
Dimensions 7"W x 1.87"H x 1.87"D (178x48x48mm)

Long & Short Range Adjustment:

The REXHP Sensor can be configured to detect individuals at either long-range (multiple steps from the door) or short-range (immediately in front of the door) by adjusting the angle of the detection module. If the building includes a lengthy approach to the exit doorway and no other foot traffic in the detection area, adjust the cover lens for longer range.

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Product Group:
Door Controller
Subcategory:
Access Controls
Product Type:
Hardwired
Product Model:
Door Controller
Product Voltage:
12-24VDC
Product Size:
7" x 1.87" x 1.87"
Product Category:
Access Controls
Department:
Door Hardware

Prodatakey REXHP – Frequently Asked Questions

1) Will the ProdataKey REXHP request-to-exit sensor run on my 12VDC access control power supply?
The REXHP runs on 12-24VDC or 12-24VAC at 50-60Hz, so a standard 12VDC access panel or maglock supply powers it directly. Draw is 18-30mA on DC and 45-80mA on AC, so it adds almost nothing to your power budget when you are sizing a supply that is already carrying a maglock.
2) Can a REXHP motion sensor cut power to a maglock directly, or do I need a relay between them?
Wiring goes through the sensor's own relay, which is a 2C form contact giving you both normally closed and normally open, rated 24VDC at 1A max with a 0.6 power factor. On a typical single maglock that is enough to break the lock power leg on its own. If the lock draw or the lock voltage exceeds 24VDC at 1A, or you are dropping several maglocks off one sensor, drive an interposing relay from the contact instead.
3) How high can I mount a request-to-exit PIR sensor and still cover the door?
Coverage on the REXHP is 12 by 5 feet when mounted at 7 feet, widening to 30 by 12 feet at 15 feet. That gives you a workable pattern on both a standard-height door header and a tall storefront or lobby transom. The wider high-mount pattern is worth checking against nearby foot traffic, since anything crossing that 30 foot spread will trip the relay and drop the lock.
4) My REXHP keeps releasing the maglock when people walk past the door. How do I stop the false triggers?
Angle of the detection module sets the range. Tilt it for short range and it only picks up someone standing immediately in front of the door, which is the fix when a corridor or cross-traffic passes through the pattern. Long range, set by adjusting the cover lens, is for a building with a long straight approach to the exit and no other foot traffic in the detection area.
5) Can I mount a ProdataKey REXHP on an exterior door or in an unheated garage?
Indoor use only. The REXHP is rated -20F to 120F (-29C to 49C) and 0-95 percent humidity non-condensing, so a conditioned lobby, corridor or stairwell is where it belongs. For an exterior opening, put the sensor on the inside face of the door and keep it out of direct weather.
6) How long does the ProdataKey REXHP hold the door unlocked after it sees someone?
Hold time is adjustable from 0.5 to 64 seconds on the sensor itself. Short settings suit a fast single-leaf egress door; longer settings are what you want on a slow-closing door, an ADA operator, or a vestibule where someone needs time to clear the opening before the maglock re-energizes.
7) How much header space do I need above the door for the REXHP sensor?
The housing measures 7 x 1.87 x 1.87 inches (178 x 48 x 48 mm), so it wants a clear 7 inch run on the header or frame face with under 2 inches of depth. On a narrow aluminum storefront header, check that 7 inch dimension before you commit, since the long axis is what runs out of room first.
8) Is a PIR request-to-exit sensor the right choice, or should I use an exit push button?
A passive infrared REX like the REXHP detects motion approaching the door and releases the maglock with no action from the person leaving, which is what you want on egress paths where a code official or the occupants expect hands-free exit. A push button requires a deliberate press and only fires when someone finds it. The tradeoff with PIR is that anything moving in the pattern releases the lock, so on doors with heavy cross-traffic the button gives you tighter control. The REXHP also carries a green LED so you can confirm at a glance that it detected.
9) What is the ProdataKey REXHP part number for ordering?
REXHP is the model designation for the ProdataKey high-performance request-to-exit passive infrared sensor, ordered under manufacturer part number AHDS30RVFD. It ships as a single hardwired configuration, so there are no finish or voltage options to specify.
