BEA 10GL1200R Weather Resistant Sliding Gate Electromagnetic Lock with 1200 LB Holding Force

BEA 10GL1200R Weather Resistant Sliding Gate Electromagnetic Lock with 1200 LB Holding Force

Professional UL Listed Gate Security Solution

The BEA 10GL1200R electromagnetic lock delivers professional-grade security for sliding gates and exterior doors with a powerful 1200 LB holding force and weather-resistant construction. This UL listed gatelock features a stainless steel exterior housing with IP65 enclosure protection, making it ideal for industrial gate and outdoor applications requiring reliable access control. Operating on 12/24 VDC power with a built-in lock status sensor and output relay, this front mount model includes a 3/4 inch male NPS threaded conduit fitting for streamlined installation.

Professional Features & Benefits

• Powerful Holding Force: 1200 LB holding capacity provides exceptional security for sliding gates and heavy-duty applications.
• Weather-Resistant Construction: Stainless steel exterior housing with IP65 enclosure rating protects internal electronics from outdoor elements.
• Flexible Power Options: 12/24 VDC operation accommodates various system voltage requirements with UL listed power supply.
• Built-In Status Monitoring: Integrated lock status sensor with output relay enables remote monitoring and system integration.

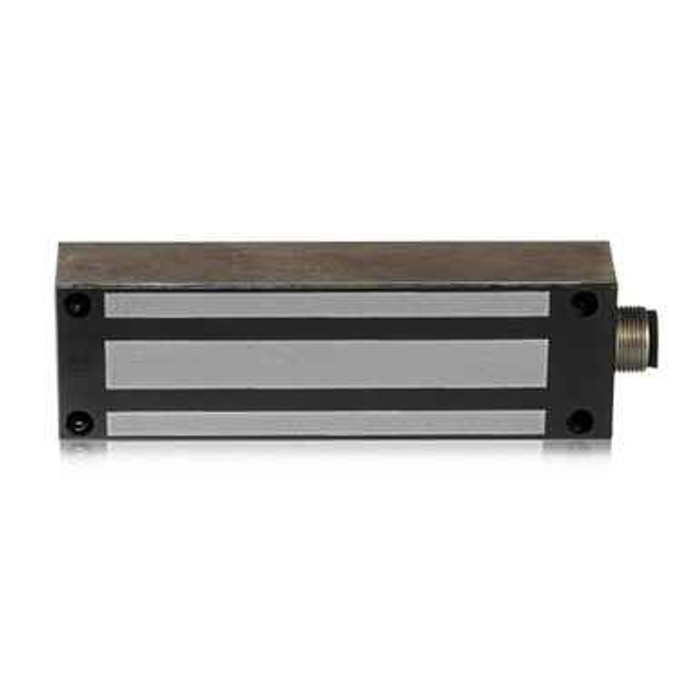

• Front Mount Design: Specifically engineered for sliding gate applications with included 3/4 inch male NPS threaded conduit fitting.
• UL Listed Certification: UL listed construction ensures compliance with safety standards for commercial installations.
• Multiple Mounting Options: Available in both front mount and side mount configurations for versatile gate and door applications.
• Easy Installation: Pre-installed conduit fitting and comprehensive mounting hardware simplify field installation.

Technical Specifications

• Door Configuration (10GL1200R): Sliding gate, front mount

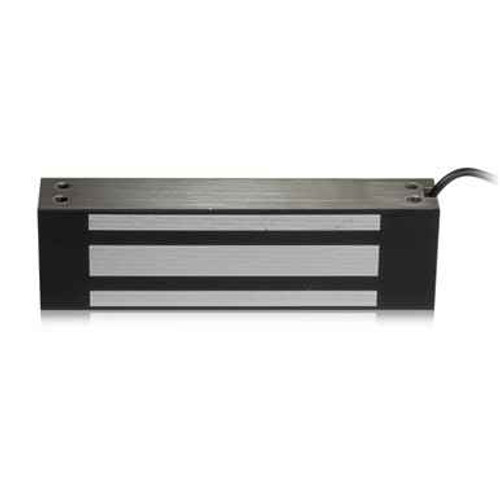

• Door Configuration (10GL1200SR): Swinging door / gate, side mount
• Holding Force: 1200 lb
• Input Voltage: 12 / 24 VDC (UL Listed power supply recommended)
• Current Draw: 500 mA @ 12 VDC; 250 mA @ 24 VDC
• Relay Switch: 250 mA @ 12 VDC; 125 mA @ 24 VDC
• Dimensions: 8.75 in (W) x 2.50 in (H) x 1.625 in (D)
• Material: Stainless steel
• Sensor: Lock status sensor with relay output
• Cable Specifications: 24 AWG 7-conductor cable, 3.5 ft
• Norm Conformance (10GL1200R): UL and CUL, ANSI 156.10, NEMA 4 / IP65
• Conduit Fitting (10GL1200R only): 3/4 inch NPS conduit fitting, 14 threads per inch

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage and current capacity before proceeding with UL listed power supply.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location on the sliding gate ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring through the included 3/4 inch male NPS threaded conduit fitting according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including lock status sensor output relay per application requirements.
6. Restore power and test all functions including normal locking operation, status sensor feedback, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Industrial Facility Sliding Gate Security
• Commercial Property Perimeter Access Control
• Warehouse and Distribution Center Entry Points
• Parking Facility Automated Gate Systems
• Multi-Unit Residential Complex Security
• Government and Municipal Facility Access
• Outdoor Storage Facility Protection

Weatherized Construction

The BEA 10GL1200R features weather-resistant stainless steel housing with IP65 enclosure rating, making it suitable for demanding outdoor applications where exposure to elements is a concern. The robust construction protects internal electronics while maintaining reliable operation in industrial gate and exterior door installations.

Why Choose BEA Quality?

BEA electromagnetic locks deliver professional-grade reliability with weather-resistant stainless steel construction and UL listed certification for demanding commercial applications. The 1200 LB holding force and IP65 enclosure rating ensure dependable performance in outdoor gate security installations. Engineered for industrial environments where robust access control and weather resistance are essential.
