BEA LZR-I30 Laser Scanner for Industrial Automation and Safety Detection

BEA LZR-I30 Laser Scanner for Industrial Automation and Safety Detection

Advanced Laser-Based Time-of-Flight Sensor Technology

The BEA LZR-I30 is a high-precision laser-based Time-of-Flight sensor designed for accurate object detection in demanding industrial environments. This advanced sensor provides four laser-based curtains that create a three-dimensional safety zone for comprehensive people and vehicle detection. Housed in an IP65 rated enclosure, the LZR-I30 delivers reliable performance in both indoor and outdoor applications where precision detection is critical.

Professional Features & Benefits

• Advanced Laser Technology: Time-of-Flight laser sensor technology ensures high precision object detection for reliable safety zone monitoring.
• Three-Dimensional Detection Zone: Four laser-based curtains create comprehensive 3D safety coverage for enhanced protection and monitoring capabilities.
• Weatherproof Construction: IP65 rated enclosure provides protection against dust and water ingress for reliable outdoor and harsh environment operation.
• Versatile Detection Capability: Designed for detection of both people and vehicles in indoor and outdoor environments with consistent accuracy.
• Visual Alignment System: Three visible LED spots provide accurate reference points for precise tilt angle adjustment during installation and setup.
• Remote Configuration: Parameter adjustments can be made using BEA universal remote control for convenient setup and maintenance.
• Industrial-Grade Durability: Engineered for high performance industrial doors, vehicle flow safety, perimeter protection and demanding automation applications.

Technical Specifications

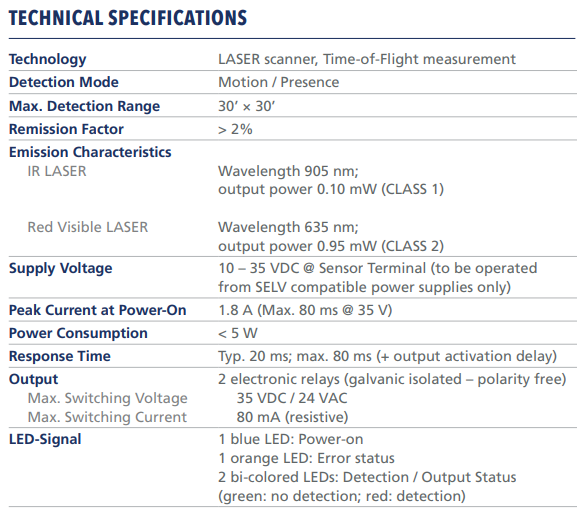

• Technology: LASER scanner, Time-of-Flight measurement
• Detection Mode: Motion / Presence (EN 12453 Typ. E)
• Max. Detection Range: 360 x 360 in (30 x 30 ft)
• Detection Plane: 4 curtains per sensor; curtain spread dependent on mounting height
• Remission Factor: > 2%
• Emission Characteristics (IR LASER): Wavelength 905 nm; maximum output pulse power 75 W (Class 1)
• Emission Characteristics (Visible LASER): Wavelength 650 nm; maximum output CW power 3 mW (Class 3R)
• Supply Voltage: 10 - 35 VDC @ Sensor Terminal (SELV compatible power supplies only)
• Peak Current at Power-On: 1.8 A (Max. 80 ms @ 35 V)
• Power Consumption: < 5 W
• Response Time: Typ. 20 ms; max. 80 ms (+ output activation delay)
• Output: 2 electronic relays (galvanic isolated, polarity free)
• Max. Switching Voltage: 35 VDC / 24 VAC
• Max. Switching Current: 80 mA (resistive)
• LED-Signal: 1 Blue LED: Power-on | 1 Orange LED: Error | 2 Bi-colored LEDs: Detection/Output Status
• Cable Length: 360 in (30 ft)
• Material: PC / ASA
• Color: Black
• Rotation Angle on Bracket: +/-5 deg. (Lockable)
• Tilt Angle on Bracket: +/-3 deg.

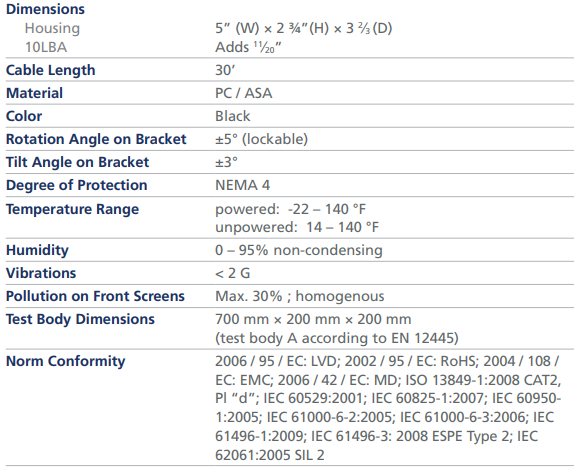

• Dimensions: 5 in (W) x 2.75 in (H) x 3.66 in (D)
• Degree of Protection: NEMA 4 / IP65
• Temperature Range: -22 deg. F - 140 deg. F if powered | 14 deg. F - 140 deg. F if unpowered

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings and detection parameters per application requirements using BEA universal remote control.
6. Restore power and test all functions including normal operation, detection accuracy, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Industrial Door Automation and Safety Systems
• Vehicle Flow Monitoring and Safety
• Perimeter Protection and Security
• Warehouse and Distribution Center Automation
• Manufacturing Facility Safety Zones
• Loading Dock Safety Systems
• Commercial Building Access Control

Why Choose BEA Quality?

BEA laser sensor technology delivers professional-grade reliability with IP65 rated construction engineered for demanding industrial automation applications. The LZR-I30’s Time-of-Flight laser technology and three-dimensional detection capabilities provide the precision and durability required for critical safety and automation systems where dependable performance is essential.
