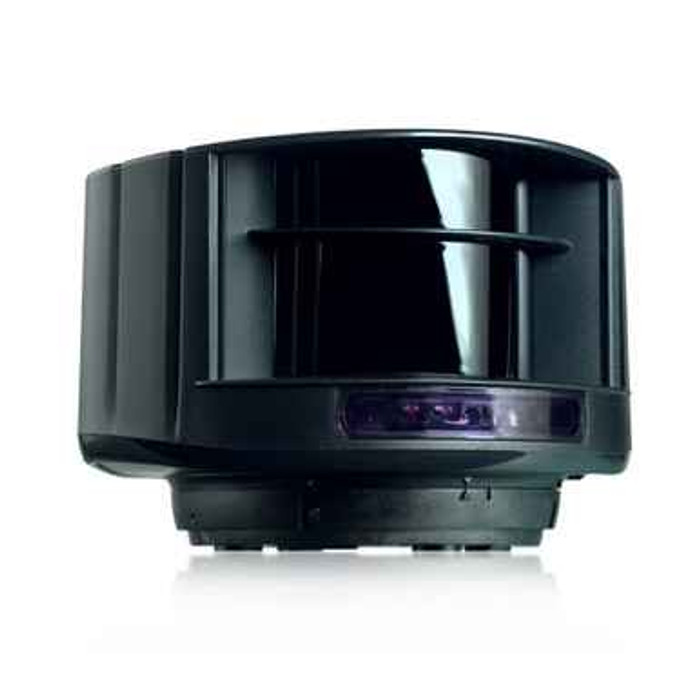

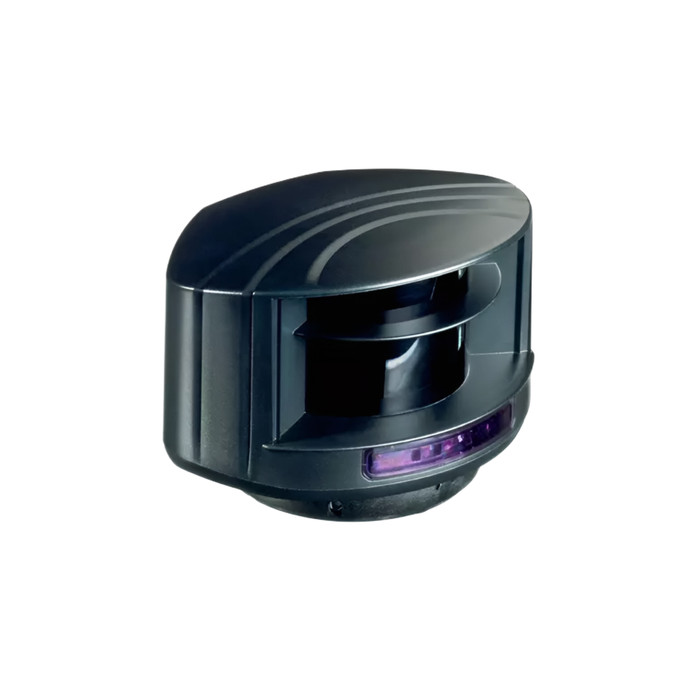

Advanced Laser Time-of-Flight Presence Detection Technology

The BEA LZR-S600 is a high-precision laser-based Time-of-Flight sensor that delivers accurate three-dimensional presence detection through four laser-based curtains. This advanced sensor represents the largest detection field in BEA's laser Time-of-Flight product portfolio, making it ideal for perimeter security protection, industrial automation, and large industrial door/gate applications requiring wide field detection. The unit features IP65 rated enclosure construction for reliable operation in outdoor, industrial, and harsh environments.

Professional Features & Benefits

• Laser Time-of-Flight Technology: High-precision laser-based detection ensures accurate presence sensing with four laser-based curtains for comprehensive three-dimensional coverage.
• Wide Detection Field: Largest detection field available in BEA's laser Time-of-Flight portfolio, perfect for large industrial door/gate applications and perimeter security.
• IP65 Environmental Rating: Weatherproof enclosure allows reliable installation in outdoor, industrial, and harsh environmental conditions.
• Visual Alignment System: Three visible LED spots provide accurate reference points for precise tilt angle adjustment during installation.
• Remote Configuration: Parameter adjustments can be made using BEA universal remote control for convenient setup and maintenance.
• Versatile Applications: Designed for perimeter security protection, industrial automation, and building automation systems requiring reliable presence detection.

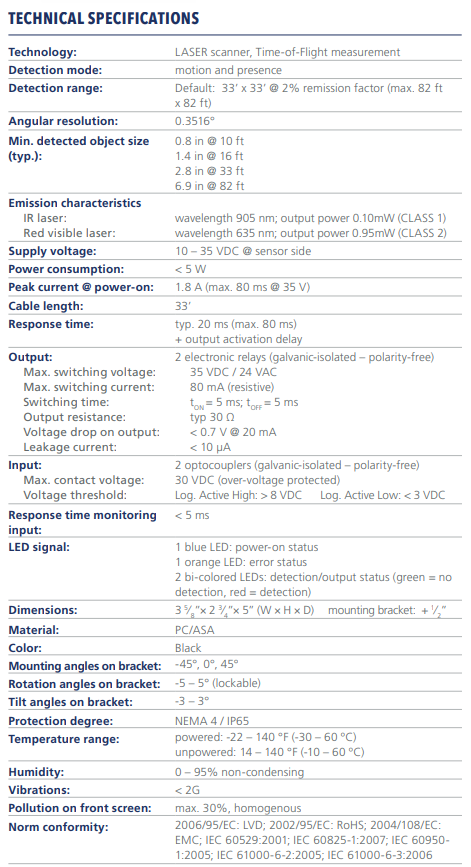

Technical Specifications

• Technology: LASER scanner, Time-of-Flight measurement
• Detection Mode: Motion / Presence (EN 12453 Typ. E)
• Max. Detection Range: 984 x 984 in (82 x 82 ft)
• Detection Plane: 4 curtains per sensor; curtain spread dependent on mounting height
• Angular Resolution: 0.3516 deg.
• Emission Characteristics (IR LASER): Wavelength 905 nm; maximum output pulse power 75 W (Class 1)
• Emission Characteristics (Visible LASER): Wavelength 650 nm; maximum output CW power 3 mW (Class 3R)
• Supply Voltage: 10 - 35 VDC @ Sensor Terminal
• Peak Current at Power-On: 1.8 A (Max. 80 ms @ 35 V)
• Power Consumption: < 5 W
• Response Time: Typ. 20 ms; max. 80 ms (+ output activation delay)
• Output: 2 electronic relays (galvanic isolated, polarity free)
• Max. Switching Voltage: 35 VDC / 24 VAC
• Max. Switching Current: 80 mA (resistive)
• LED-Signal: 1 Blue LED: Power-on | 1 Orange LED: Error | 2 Bi-colored LEDs: Detection/Output Status
• Cable Length: 360 in (30 ft)
• Material: PC / ASA
• Color: Black
• Rotation Angle on Bracket: +/-5 deg. (Lockable)
• Tilt Angle on Bracket: +/-3 deg.
• Dimensions: 5 in (W) x 2.75 in (H) x 3.66 in (D)
• Degree of Protection: NEMA 4 / IP65
• Temperature Range: -22 deg. F - 140 deg. F if powered | 14 deg. F - 140 deg. F if unpowered

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings using BEA universal remote control per application requirements and adjust tilt angle using the three visible LED reference spots.
6. Restore power and test all functions including normal operation, detection coverage, and integration with connected building automation or security systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Perimeter Security Protection Systems
• Industrial Automation and Process Control
• Large Industrial Door and Gate Applications
• Building Automation and Access Control
• Warehouse and Distribution Center Monitoring
• Commercial Property Security Systems
• Harsh Environment Industrial Facilities

Why Choose BEA Quality?

BEA LZR-S600 laser scanner products deliver professional-grade reliability with IP65 rated construction for demanding outdoor and industrial environments. The high-precision laser Time-of-Flight technology ensures accurate detection performance with the largest detection field available in the BEA laser sensor portfolio. Engineered for demanding commercial applications where dependable presence detection and environmental durability are essential.
