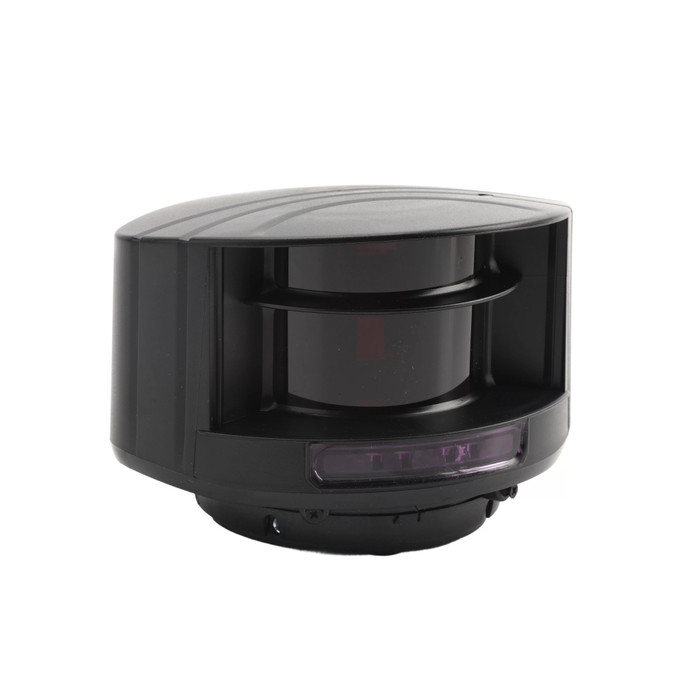

BEA LZR-H100 Laser Scanner for Gate & Barrier Vehicle Detection

BEA LZR-H100 Laser Scanner for Gate & Barrier Vehicle Detection

Advanced Laser-Based Time-of-Flight Sensor Technology

The BEA LZR-H100 is a professional-grade LASER-based Time-of-Flight sensor specifically engineered for gate and barrier applications. This advanced detection system provides four LASER-based curtains that create a three-dimensional detection zone for precise object detection in vehicle sensing applications. Housed in an IP65 rated enclosure, the LZR-H100 delivers reliable performance in demanding outdoor environments and serves as an effective alternative to traditional induction loops.

Professional Features & Benefits

• Four LASER-Based Detection Curtains: Creates comprehensive three-dimensional detection zones for accurate vehicle and object sensing in gate applications.
• Time-of-Flight Technology: Advanced LASER-based sensing provides precise detection capabilities superior to traditional loop systems.
• Highly-Configurable Detection: Curtains can be customized for both activation and presence detection to meet specific vehicle sensing requirements.
• IP65 Weatherproof Rating: Sealed enclosure ensures reliable operation in outdoor environments with protection against dust and water ingress.
• Induction Loop Alternative: Provides effective vehicle detection without the installation complexity and maintenance requirements of buried loop systems.
• Gate and Barrier Optimization: Purpose-built design specifically engineered for gate and barrier control applications.
• Three-Dimensional Detection Zone: Multi-curtain configuration enables comprehensive coverage for enhanced detection accuracy and reliability.

Technical Specifications

• Technology: LASER scanner, Time-of-Flight measurement
• Detection Mode: Motion / Presence (EN 12453 Typ. E)
• Max. Detection Range: 360 x 360 in (30 x 30 ft)
• Detection Plane: 4 curtains per sensor; curtain spread dependent on mounting height
• Remission Factor: > 2%
• Emission Characteristics (IR LASER): Wavelength 905 nm; maximum output pulse power 75 W (Class 1)
• Emission Characteristics (Visible LASER): Wavelength 650 nm; maximum output CW power 3 mW (Class 3R)
• Supply Voltage: 10 - 35 VDC @ Sensor Terminal (SELV compatible power supplies only)
• Peak Current at Power-On: 1.8 A (Max. 80 ms @ 35 V)
• Power Consumption: < 5 W
• Response Time: Typ. 20 ms; max. 80 ms (+ output activation delay)
• Output: 2 electronic relays (galvanic isolated, polarity free)
• Max. Switching Voltage: 35 VDC / 24 VAC
• Max. Switching Current: 80 mA (resistive)
• LED-Signal: 1 Blue LED: Power-on | 1 Orange LED: Error | 2 Bi-colored LEDs: Detection/Output Status
• Cable Length: 360 in (30 ft)
• Material: PC / ASA
• Color: Black
• Rotation Angle on Bracket: +/-5 deg. (Lockable)
• Tilt Angle on Bracket: +/-3 deg.
• Dimensions: 5 in (W) x 2.75 in (H) x 3.66 in (D)
• Degree of Protection: NEMA 4 / IP65
• Temperature Range: -22 deg. F - 140 deg. F if powered | 14 deg. F - 140 deg. F if unpowered

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including detection curtain parameters and sensitivity levels per application requirements.
6. Restore power and test all functions including normal operation, detection accuracy, and integration with gate or barrier control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Gate Access Control Systems
• Parking Facility Entry and Exit Points
• Industrial Facility Vehicle Detection
• Warehouse and Distribution Center Barriers
• Multi-Unit Residential Property Access
• Security Perimeter Vehicle Monitoring
• Automated Parking System Integration

Why Choose BEA Quality?

BEA LZR-H100 sensors deliver professional-grade reliability with advanced LASER-based Time-of-Flight technology and IP65 weatherproof construction for demanding outdoor applications. The four-curtain detection system provides superior accuracy compared to traditional sensing methods while eliminating the installation complexity of induction loops. Engineered for commercial gate and barrier applications where dependable vehicle detection performance is essential.
