BEA 10PBDGP1 Stainless Steel Dual Plate Vestibule Push Plate with Blue Handicap Logo and Wireless Compatibility

BEA 10PBDGP1 Stainless Steel Dual Plate Vestibule Push Plate with Blue Handicap Logo and Wireless Compatibility

ADA-Compliant Automatic Door Activation Solution

The BEA 10PBDGP1 vestibule push plate enhances accessibility for individuals with limited mobility and disabilities while seamlessly integrating with automatic door activation systems. This ADA-compliant dual plate design measures 4.75" by 4.75" and features stainless steel construction with blue handicap logo, text, and directional arrow. The unit combines two jamb style plates that fit into one double gang mounting box and includes an adapter ring for streamlined installation.

Professional Features & Benefits

• Dual Plate Design: 4.75" by 4.75" stainless steel construction combines two jamb style plates in one double gang mounting box for simplified installation.
• ADA Compliance: Meets accessibility requirements with clear blue handicap logo, text, and directional arrow for enhanced visibility and usability.
• Wireless Compatibility: Reduces installation time by eliminating the need to run wires from the push plate and connects to BEA’s line of wireless transmitters.
• Versatile Mounting Options: Compatible with both surface and flush mount boxes for flexible installation configurations.
• Professional Construction: Stainless steel actuator provides durability and corrosion resistance for long-term commercial applications.
• Complete Integration: May be hard wired to door operator or connected wirelessly for seamless automatic door activation.
• Included Adapter Ring: Comes with adapter ring for proper mounting and professional installation appearance.

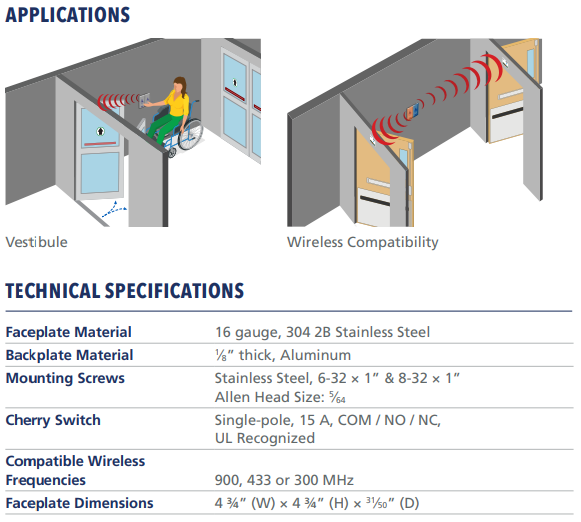

Technical Specifications

• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8 inch thick, Aluminum
• Mounting Screws: Stainless Steel, 6-32 x 1 in & 8-32 x 1 in Allen Head Size: 5/64
• Cherry Switch: Single-pole, 15 A, COM / NO / NC, UL Recognized
• Compatible Wireless Frequencies: 900, 433 or 300 MHz
• Faceplate Dimensions: 4.75 in (W) x 4.75 in (H) x 0.62 in (D)

Installation & Operation

1. Verify electrical requirements and confirm compatibility with existing automatic door operator system before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the dual plate unit in the specified double gang mounting box location ensuring adequate clearance for wiring access and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams or configure wireless transmitter connection per BEA specifications. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings for proper integration with automatic door activation system per application requirements.
6. Restore power and test all functions including push plate activation, wireless communication if applicable, and integration with connected door operator systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Enhancement
• Educational Institution ADA Compliance
• Retail Establishment Entry Systems
• Government and Municipal Building Access
• Multi-Tenant Residential Automatic Doors
• Industrial Facility Accessible Entry Points

Why Choose BEA Quality?

BEA vestibule push plates deliver professional-grade accessibility solutions with stainless steel construction and ADA-compliant design features. The wireless compatibility and dual plate configuration provide installation flexibility while maintaining reliable automatic door activation performance. Engineered for demanding commercial applications where dependable accessibility and seamless integration are essential.
