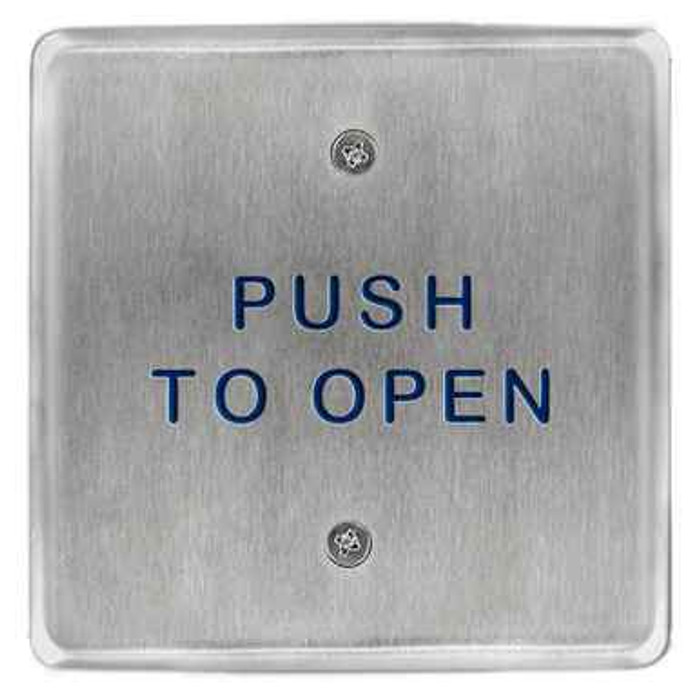

BEA 10PBS45X Stainless Steel 4.5" Square ADA-Compliant Push Plate

BEA 10PBS45X Stainless Steel 4.5" Square ADA-Compliant Push Plate

Professional ADA-Compliant Access Control Solution

The BEA 10PBS45X delivers professional-grade accessibility enhancement with its 4.5" square stainless steel construction designed for automatic door activation systems. This ADA-compliant push plate integrates seamlessly with door operators through hardwired connections or wireless transmitter compatibility, providing enhanced accessibility for users with limited mobility or disabilities while meeting commercial accessibility requirements.

Professional Features & Benefits

• 4.5" Square Dimensions: Optimal size for clear visibility and easy activation in commercial applications.
• ADA Compliance: Meets accessibility requirements with variety of popular faceplate graphic options for enhanced usability.
• Wireless Compatibility: Reduces installation time by eliminating the need to run wires from the push plate or use additional mounting hardware.
• Dual Installation Options: Compatible with both surface and flush mount boxes for versatile installation configurations.
• Stainless Steel Construction: Durable actuator material provides long-term reliability in high-traffic commercial environments.
• Complete Kit Availability: Available in complete kits including plates, mounting boxes and optional wireless devices for ease of ordering.
• Enhanced Accessibility Design: Improves overall access and seamlessly integrates with automatic door activation systems.

Technical Specifications

• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8 inch thick, Aluminum
• Mounting Screws: Stainless Steel, 6-32 x 1 in & 8-32 x 1 in Allen Head Size: 5/64
• Cherry Switch: Single-pole, 15 A, COM / NO / NC, UL Recognized
• Compatible Wireless Frequencies: 900, 433 or 300 MHz

Installation & Operation

1. Verify electrical requirements match available power supply and confirm compatibility with existing door operator system.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams or configure wireless transmitter connection as applicable. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including any configurable options per application requirements.
6. Restore power and test all functions including normal operation, activation response, and integration with connected door operator systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Access Control
• Educational Institution Accessibility Compliance
• Retail Establishment Entry Systems
• Government and Municipal Building Access
• Multi-Tenant Residential Properties
• Industrial Facility Entry Points

Why Choose BEA Quality?

BEA electronic access control products deliver professional-grade reliability with stainless steel construction engineered for demanding commercial applications. The 10PBS45X series enhances accessibility while providing seamless integration with automatic door systems, ensuring dependable performance where ADA compliance and user accessibility are essential.
