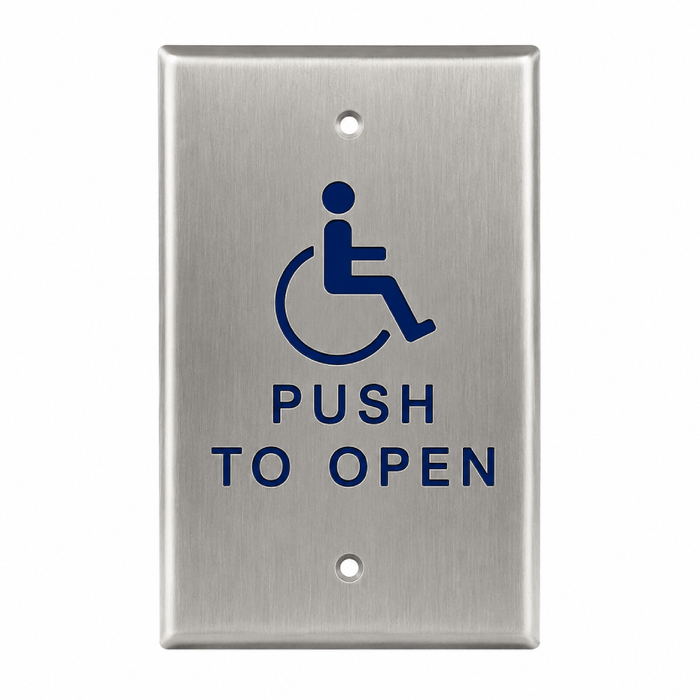

BEA 10PBOX stainless steel single gang push plate with blue handicap logo and PUSH TO OPEN text, 2.75 by 4.5 inch

BEA 10PBOX Stainless Steel 2.75" x 4.5" Single Gang Push Plates

(No reviews yet) Write a Review

Model: 10PBO241
Selected Push Plate Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$83.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10PBOX Stainless Steel Single Gang Push Plate with ADA Compliance and Wireless Compatibility

Professional ADA-Compliant Access Control Solution

The BEA 10PBOX stainless steel single gang push plate delivers professional-grade accessibility enhancement for automatic door systems. This ADA-compliant push plate measures 2-3/4" × 4-1/2" and features wireless compatibility to reduce installation complexity while improving door access for individuals with limited mobility or disabilities. The stainless steel construction provides durability for commercial applications with seamless integration to automatic door activation systems.

Professional Features & Benefits

  • ADA Compliance: Meets accessibility requirements with variety of popular faceplate graphic options for enhanced usability.
  • Wireless Compatibility: Reduces installation time by eliminating the need to run wires from the push plate or use additional mounting hardware.
  • Stainless Steel Construction: Durable 2-3/4" × 4-1/2" single gang design provides long-lasting performance in commercial environments.
  • Flexible Installation Options: Compatible with both surface and flush mount boxes for versatile mounting configurations.
  • Complete Kit Availability: Available in complete kits including plates, mounting boxes and optional wireless devices for simplified ordering and installation.
  • Enhanced Accessibility: Improves overall door access and enhances accessibility for those with limited mobility or disabilities.
  • Seamless Integration: Designed to integrate seamlessly with automatic door activation systems for reliable operation.

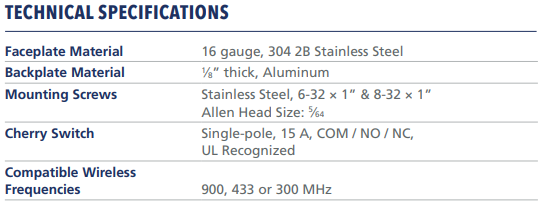

Technical Specifications

  • Faceplate Material: 16 gauge, 304 2B Stainless Steel
  • Backplate Material: 1/8 inch thick, Aluminum
  • Mounting Screws: Stainless Steel, 6-32 x 1 in & 8-32 x 1 in Allen Head Size: 5/64
  • Cherry Switch: Single-pole, 15 A, COM / NO / NC, UL Recognized
  • Compatible Wireless Frequencies: 900, 433 or 300 MHz

Installation & Operation

  1. Select appropriate mounting method (surface or flush mount) based on application requirements and available mounting boxes.
  2. For wireless installations, configure wireless transmitter settings according to manufacturer specifications before mounting the push plate.
  3. Mount the push plate in the specified location ensuring proper height and positioning for ADA compliance and user accessibility.
  4. For hardwired installations, route and connect wiring according to manufacturer wiring diagrams using appropriate wire gauge and connections.
  5. Configure operational settings and test wireless connectivity or hardwired operation with the automatic door system.
  6. Test all functions including push plate activation, door response, and integration with connected automatic door systems.
  7. Complete final inspection and verify ADA compliance positioning. Refer to manufacturer documentation for complete installation specifications and troubleshooting.

Professional Applications

  • Commercial Building Automatic Door Systems
  • Healthcare Facility Accessibility Enhancement
  • Educational Institution ADA Compliance
  • Retail Store Entrance Automation
  • Office Building Access Control
  • Multi-Tenant Residential Accessibility
  • Government and Municipal Building Compliance

Why Choose BEA Quality?

BEA push plate products deliver professional-grade accessibility solutions with stainless steel construction designed for demanding commercial applications. The 10PBOX series combines ADA compliance with wireless compatibility for enhanced installation flexibility and reliable automatic door activation. Engineered for commercial environments where dependable accessibility performance is essential.

Product Specs

Product Type:
Single Gang Push Plates
Series:
10PBOX
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Size:
2-3/4" x 4-1/2"
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA 10PBO241 – Frequently Asked Questions

1) What size opening does the BEA 10PBOX push plate need, and will it fit a standard single gang box?
The 10PBOX faceplate measures 2-3/4 x 4-1/2 inches, which is the single gang push plate footprint. It mounts to either a surface mount box or a flush mount box, so you can run it on a wall with an existing single gang cutout or box out on the surface where there is no cavity to work with.
2) Which faceplate graphic should I order on the BEA 10PBOX single gang push plate?
Three faceplates are offered: a blue handicap logo with text, a blue PUSH TO EXIT text plate, and a plain plate with no marking. Use the handicap logo plate on the exterior or public-approach side of an accessible entrance, PUSH TO EXIT on the egress side where the plate only releases the door on the way out, and the plain plate where the door is a staff or back-of-house opening and you do not want a public accessibility marking on it.
3) Can I install a BEA 10PBOX push plate without running wire back to the door operator?
Yes. The 10PBOX is wireless compatible and works on 900, 433 or 300 MHz, so on a retrofit you can put a plate on a masonry wall or a glass mullion without cutting in a wire path. The plate can also be hardwired if you already have a home run to the operator, so the same part covers both jobs. Wireless kits include the transmitter; a hardwired install just uses the switch contacts.
4) What switch is in the BEA 10PBOX push plate and will it work with my automatic door operator?
Inside is a single-pole Cherry switch rated 15 A with COM, NO and NC terminals, UL Recognized. Because it gives you both normally open and normally closed, it lands on essentially any low voltage actuation input on a swing door operator, and the dry contact means the operator supplies its own voltage. Wire COM and NO for a standard momentary activation.
5) Is the BEA 10PBOX push plate tough enough for a hospital or school entrance?
The faceplate is 16 gauge 304 2B stainless steel over a 1/8 inch aluminum backplate, which is the build you want on a high traffic public opening where carts, wheelchairs and gloved hands hit the plate all day. 304 stainless also cleans up after disinfectant wipe-downs, which is why it holds up on healthcare corridors.
6) What screws come with the BEA 10PBOX push plate and what tool do I need on site?
Mounting hardware is stainless steel 6-32 x 1 inch and 8-32 x 1 inch screws, both Allen head taking a 5/64 key. Two thread sizes are supplied because surface boxes and flush boxes tap differently. Bring the 5/64 hex key, the plate does not take a screwdriver.
7) I need to add accessible door actuators across a building. Can I standardize on the 10PBOX single gang plate?
Yes, and that is the usual approach for a fleet. Every opening takes the same 2-3/4 x 4-1/2 inch plate and the same 5/64 Allen hardware, and you vary only the faceplate graphic by opening: handicap logo on the approach side, PUSH TO EXIT on the egress side, plain where no public marking is wanted. That keeps one spare part on the shelf for the whole building.
8) Is the BEA 10PBOX push plate rated for exterior or residential use?
It is a commercial product. The 10PBOX is built for commercial automatic door systems in offices, retail, healthcare, schools and government buildings, and for multi-tenant residential common entrances rather than a private home door.
