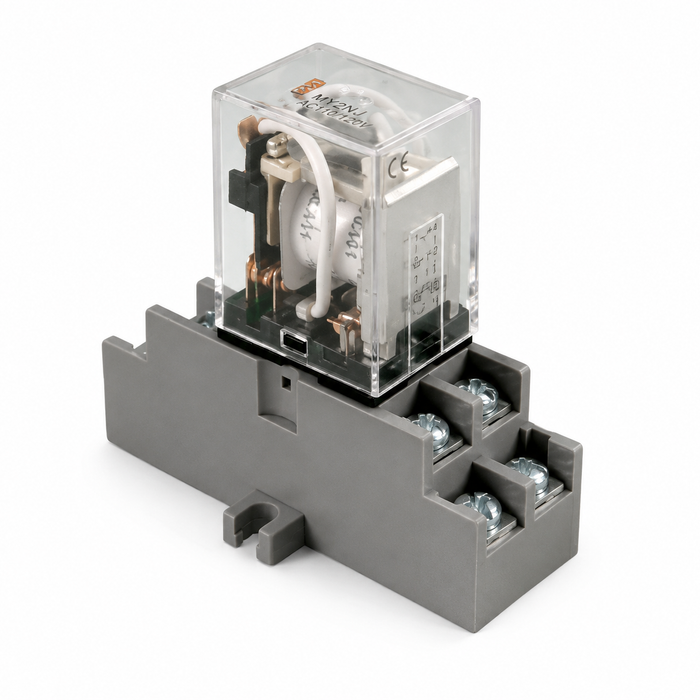

BEA 10REL12VAC DPDT Isolation Relay 12 VAC Electronic Access Control Component

BEA 10REL12VAC DPDT Isolation Relay 12 VAC Electronic Access Control Component

Professional Utility Switching Device for Electronic Access Control Systems

The BEA 10REL12VAC is a DPDT isolation relay designed specifically for 12 VAC applications in electronic access control systems. This utility switching device provides reliable voltage isolation and contact rating enhancement for automatic door systems, alarm interfaces, and general-purpose switching applications. Engineered for commercial installations requiring dependable relay operation in access control environments.

Professional Features & Benefits

• 12 VAC Operation: Designed specifically for 12 VAC systems providing reliable switching performance in low-voltage applications.
• DPDT Configuration: Double-pole, double-throw contact arrangement offers versatile switching options for complex control circuits.
• Voltage Isolation: Provides electrical isolation between control circuits and load circuits for enhanced system protection and safety.
• Contact Rating Enhancement: Steps up detector contact ratings to handle line voltage applications safely and reliably.
• Automatic Door Integration: Interfaces automatic door systems with alarm systems and enunciator panels for comprehensive facility management.
• Activator Control: Enables turning off activators upon reaching wall positions for precise door operation control.
• General-Purpose Switching: Suitable for various voltage isolation applications beyond door control systems.

Technical Specifications

• Model: 10REL12VAC DPDT Isolation Relay
• Input Voltage: 12 VAC
• Relay Type: DPDT (Double Pole Double Throw)
• Application: Electrical isolation between door control and access control systems

Installation & Operation

1. Verify electrical requirements match available 12 VAC power supply. Confirm voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the relay in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including any configurable options per application requirements.
6. Restore power and test all functions including normal operation, switching functions, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Automatic Door Control Systems
• Electronic Access Control Integration
• Alarm System Interfaces
• Enunciator Panel Connections
• Commercial Building Security Systems
• Detector Contact Rating Enhancement
• General-Purpose Voltage Isolation

Why Choose BEA Quality?

BEA isolation relays deliver professional-grade reliability with specialized 12 VAC operation designed for demanding electronic access control applications. The DPDT configuration and voltage isolation capabilities ensure dependable performance in commercial installations where precise switching control is essential. Engineered for seamless integration with automatic door systems and security equipment.
