BEA 10SPOTFINDER Active Infrared Spot Finder with LED Indicator

Professional Infrared Detection Tool for Sensor Zone Identification

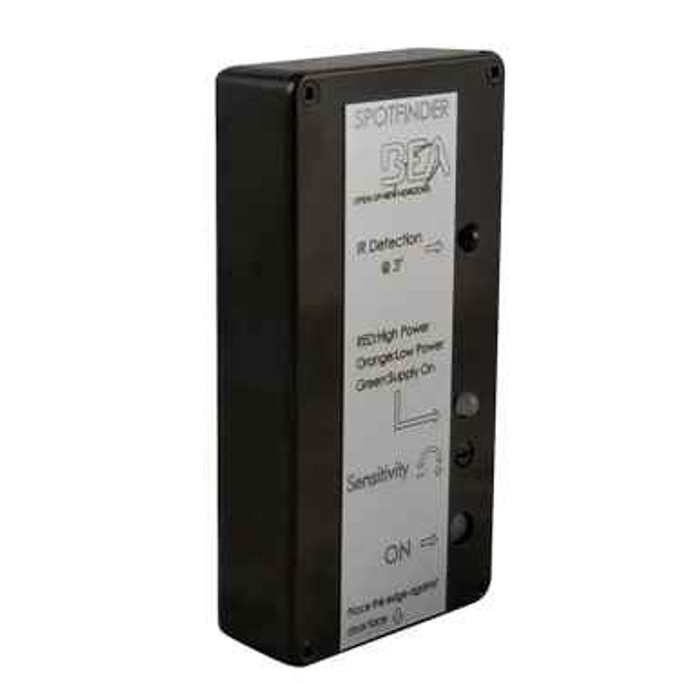

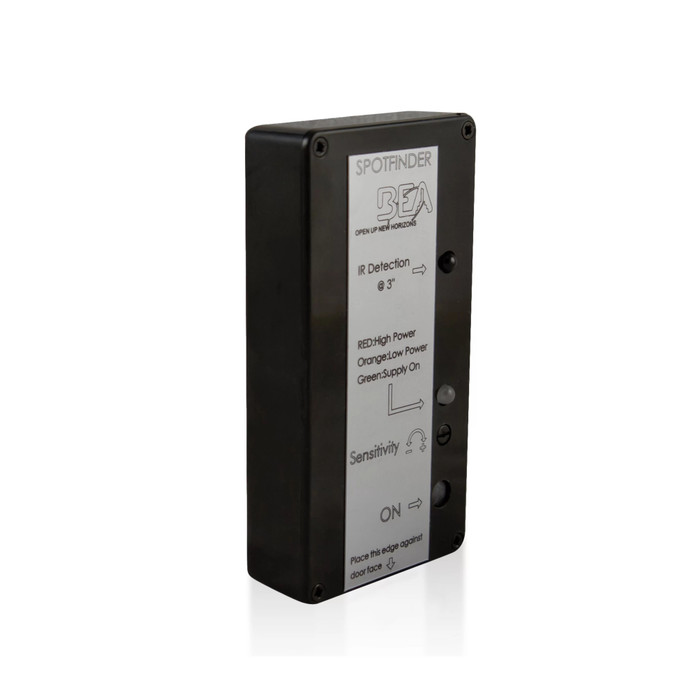

The BEA 10SPOTFINDER is a hand-held infrared detection tool designed to locate active infrared sources and approximate sensing zones from sensors. This compact device measures 4 5/16" X 2 1/4" X 13/16" and features LED indicator functionality for easy identification of infrared areas. Constructed from durable ABS plastic and powered by two AAA alkaline batteries, this professional tool provides reliable infrared detection capabilities for technicians and installers.

Professional Features & Benefits

  • Compact Handheld Design: Measures 4 5/16" X 2 1/4" X 13/16" (110mm X 57mm X 20mm) for easy portability and one-handed operation during installations.
  • LED Visual Indicator: Provides clear visual confirmation when active infrared sources are detected for accurate zone identification.
  • Universal Compatibility: Works with any active infrared emitting device to locate and approximate sensing zones across different sensor types.
  • Battery-Powered Operation: Uses two AAA alkaline batteries for cordless convenience and extended field use without external power requirements.
  • Durable ABS Construction: ABS plastic housing provides impact resistance and long-term durability for professional tool applications.
  • Easy Zone Approximation: Serves as an effective identifier for infrared detection areas, simplifying sensor alignment and troubleshooting procedures.

Technical Specifications

  • Model: 10SPOTFINDER Active Infrared Spotfinder
  • Application: Alignment and verification tool for IS40P and IS40 industrial presence sensors
  • Feature: Improved active infrared Spotfinder that increases accuracy reducing installation and maintenance time

Installation & Operation

This detection tool is designed for use with compatible infrared sensor systems. Refer to the manufacturer documentation for proper operation procedures and infrared detection techniques. Ensure fresh AAA alkaline batteries are installed before use.

Professional Applications

  • Automatic Door Sensor Installation and Alignment
  • Security System Infrared Detector Setup
  • Access Control Sensor Zone Verification
  • Infrared Detection System Troubleshooting
  • Commercial Building Automation Systems
  • Industrial Facility Sensor Maintenance

Why Choose BEA Quality?

BEA detection tools deliver professional-grade reliability with durable ABS plastic construction designed for demanding commercial applications. The compact 4 5/16" handheld design and LED indicator system provide accurate infrared detection capabilities essential for proper sensor installation and maintenance. Engineered for technicians and installers who require dependable infrared detection performance in the field.

Product Specs

Product Type:
Spot Finder
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10SPOTFINDER – Frequently Asked Questions

1) What is the BEA 10SPOTFINDER used for on an automatic door job?
It's a hand-held tool that finds active infrared sources so you can see roughly where a sensor's detection zone actually falls. Point it at the sensor's emitters and the LED lights when it picks up active IR, which is how you confirm alignment instead of walking the zone and guessing. BEA calls out the IS40 and IS40P presence sensors specifically, but it works with any active infrared emitting device.
2) Will the 10SPOTFINDER work with sensors from brands other than BEA?
Yes, as long as the sensor uses active infrared. The Spotfinder detects emitted IR, so it isn't tied to one manufacturer's head. What it won't help with is a passive infrared or microwave motion sensor, because there's no active IR emission for it to pick up.
3) Does the BEA 10SPOTFINDER need batteries, and what kind?
Two AAA alkaline cells power it, and they aren't part of a wired hookup, so there's nothing to plug in at the door. Put fresh cells in before a service call: a weak battery reads as a weak detection, which is exactly the wrong signal when you're chasing a sensor fault.
4) Can the Spotfinder tell me the exact size of a door sensor's detection field?
It approximates the zone, not measures it. The LED tells you where active IR is present and where it stops, which is enough to check that a presence sensor covers the door swing and threshold area. For an exact pattern and the adjustment procedure, work from the sensor's own documentation alongside the Spotfinder user's guide.
5) Do I need the 10SPOTFINDER if I'm only commissioning one IS40 presence sensor?
BEA lists it as the alignment and verification tool for the IS40 and IS40P, and the point of it is cutting install and troubleshooting time by showing you where the beams actually land. On a single sensor you can get by walking the zone, but a callback on a presence sensor that misses part of the threshold costs more than the tool.
6) Is the BEA 10SPOTFINDER a sensor itself, or just a tool?
It's a hand-held test tool, not a door sensor and not part of the door's operating system. Nothing gets mounted or wired. If you're looking for the device that actually detects a person at the opening, you want a presence or motion sensor head instead.
7) How big is the BEA Spotfinder and does it fit in a tool pouch?
It measures 4 5/16 x 2 1/4 x 13/16 inches (110 x 57 x 20 mm), so it drops into a pouch or shirt pocket and runs one-handed while you're on a ladder adjusting a header-mounted sensor.
8) Is the BEA Spotfinder rugged enough for daily service truck use?
The housing is ABS plastic, chosen for impact resistance on a tool that gets dropped. It's a commercial-duty item rather than a homeowner gadget.
9) How many versions of the BEA Spotfinder are there?
One: model 10SPOTFINDER. There are no finish, size, or configuration options to pick.
