Door-Mounted Active Infrared Safety Detection System

The BEA 10SSTII40 SUPERSCAN-T is a door-mounted active infrared safety sensor engineered for automatic swinging, revolving, folding and low energy doors. This advanced sensor uses triangulation technology to detect pedestrian presence during door opening and closing operations, with 40" end cap to end cap coverage and flexible 12 to 24V AC/DC power options. The system features background suppression technology and supports both individual module operation and daisy chain configuration with secondary modules.

Professional Features & Benefits

• 40" Detection Coverage: End cap to end cap coverage provides comprehensive pedestrian detection for wide door applications.
• Flexible Power Options: 12 to 24V AC/DC operation accommodates various system voltage requirements for versatile installation.
• Advanced Triangulation Technology: Active infrared detection with triangulation ensures accurate pedestrian presence detection during door operation cycles.
• Background Suppression: Integrated background suppression technology minimizes false activations from environmental factors.
• Modular Configuration: Individual module operation or daisy chain capability with secondary modules allows adaptation to both narrow and wide door applications.
• Independent Zone Adjustment: Each module detection zone can be adjusted independently for optimized performance in specific applications.
• Multi-Door Compatibility: Designed for automatic swinging, revolving, folding and low energy door systems.
• Professional Safety Compliance: Engineered specifically for pedestrian safety detection in commercial automatic door applications.

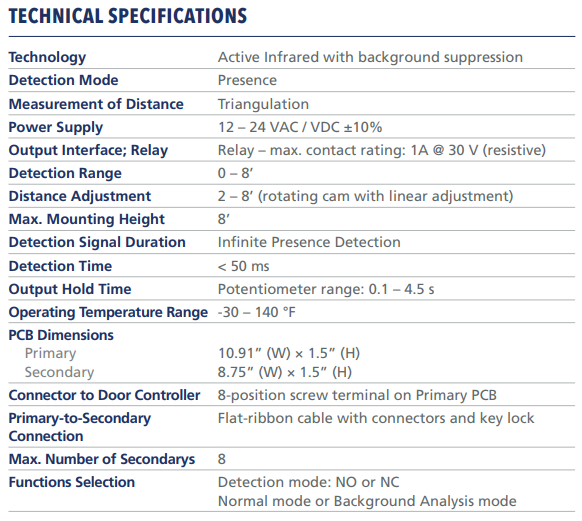

Technical Specifications

• Technology: Active Infrared with background suppression
• Detection Mode: Presence
• Measurement of Distance: Triangulation
• Power Supply: 12 - 24 VAC +/-10% / 12 - 24 VDC +/-10%
• Detection Range: 96 in (8 ft)
• Max Mounting Height: 0 in - 96 in (0 ft - 8 ft)
• Detection Signal Duration: Infinite presence detection
• Detection Time: < 50 ms
• Input Inhibit: 12 - 24 VAC +/-10% / 12 - 24 VDC +/-10% / Inhibited when voltage is applied
• SMR Input Data: 12 - 18 VDC; Inhibited when voltage is applied
• Output / Relay Max. Contact Rating: 1 A @ 30 V (resistive)
• Hold Time: 0.1 s - 4.5 s
• LED Indications: Master: Red LED = Detection; Green LED = Active Output | Slave: Red LED = Detection
• Operating Temperature Range: -30 deg. F - 140 deg. F
• PCB Dimensions: Master: 10.91 in (W) x 1.5 in (H) | Slave: 8.75 in (W) x 1.5 in (H)
• Connection (Door Controller): 8-position screw terminal on master PCB
• Connection (Master to Slave): Flat ribbon cable with connectors and key lock
• Max. Number of Slaves: Standard: 9 | With monitoring: 8
• Functions Selection: Detection mode - NO or NC; Normal mode or background analysis mode

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (12 to 24V AC/DC) and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including detection zone adjustments per application requirements.
6. Restore power and test all functions including normal operation, safety detection response, and integration with connected door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.
