BEA 10SSTII SUPERSCAN-T Active Infrared Safety Sensor with Background Suppression 34.5" Coverage

BEA 10SSTII SUPERSCAN-T Active Infrared Safety Sensor with Background Suppression 34.5" Coverage

Door-Mounted Active Infrared Safety Detection System

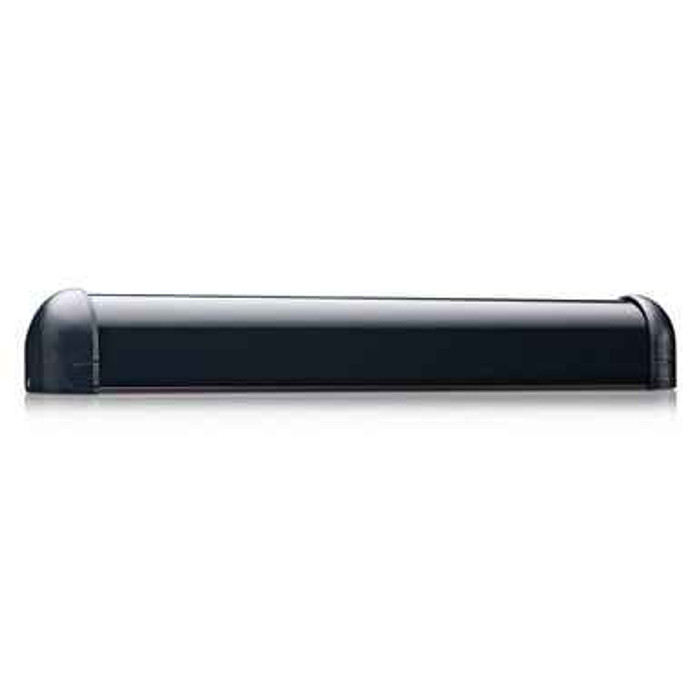

The BEA 10SSTII SUPERSCAN-T is a door-mounted active infrared safety sensor engineered for automatic swinging, revolving, folding and low energy doors. This advanced sensor uses triangulation technology to detect pedestrian presence during door opening and closing operations, with 34.5" end cap to end cap coverage and flexible 12 to 24V AC/DC power options. The system features 1 primary and 1 secondary module with background suppression technology for reliable detection in challenging environments.

Professional Features & Benefits

• Extended Coverage Area: 34.5" end cap to end cap detection zone provides comprehensive safety coverage for wide door applications.
• Flexible Power Options: 12 to 24V AC/DC operation accommodates various building electrical systems and installation requirements.
• Advanced Triangulation Technology: Active infrared detection with triangulation ensures precise pedestrian presence detection during door operation cycles.
• Modular Configuration: 1 primary and 1 secondary module design allows individual zone adjustment and daisy chain capability for extended coverage.
• Background Suppression: Advanced filtering technology eliminates false activations from environmental factors and background objects.
• Multi-Door Compatibility: Designed for automatic swinging, revolving, folding and low energy door applications.
• Independent Zone Control: Each module detection zone can be adjusted independently for optimized performance in specific applications.
• Daisy Chain Capability: Can be used as individual module or connected with additional secondary modules for narrow and wide door flexibility.

Technical Specifications

• Technology: Active Infrared with background suppression
• Detection Mode: Presence
• Measurement of Distance: Triangulation
• Power Supply: 12 - 24 VAC +/-10% / 12 - 24 VDC +/-10%
• Detection Range: 96 in (8 ft)
• Max Mounting Height: 0 in - 96 in (0 ft - 8 ft)
• Detection Signal Duration: Infinite presence detection
• Detection Time: < 50 ms
• Input Inhibit: 12 - 24 VAC +/-10% / 12 - 24 VDC +/-10% / Inhibited when voltage is applied
• SMR Input Data: 12 - 18 VDC; Inhibited when voltage is applied
• Output / Relay Max. Contact Rating: 1 A @ 30 V (resistive)
• Hold Time: 0.1 s - 4.5 s
• LED Indications: Master: Red LED = Detection; Green LED = Active Output | Slave: Red LED = Detection
• Operating Temperature Range: -30 deg. F - 140 deg. F
• PCB Dimensions: Master: 10.91 in (W) x 1.5 in (H) | Slave: 8.75 in (W) x 1.5 in (H)
• Connection (Door Controller): 8-position screw terminal on master PCB
• Connection (Master to Slave): Flat ribbon cable with connectors and key lock
• Max. Number of Slaves: Standard: 9 | With monitoring: 8
• Functions Selection: Detection mode - NO or NC; Normal mode or background analysis mode

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (12 to 24V AC/DC) and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including detection zone adjustments per application requirements.
6. Restore power and test all functions including normal operation, detection response, and integration with connected door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Safety Compliance
• Retail Store Entrance Security
• Educational Institution Access Control
• Industrial Facility Pedestrian Safety
• Multi-Tenant Building Entry Systems
• Government Facility Access Points

Why Choose BEA Quality?

BEA SUPERSCAN-T safety sensors deliver professional-grade reliability with active infrared technology and triangulation detection engineered for demanding commercial door applications. The modular design with independent zone adjustment and daisy chain capability provides installation flexibility while maintaining consistent safety performance. Trusted for critical pedestrian safety applications where dependable detection is essential.
