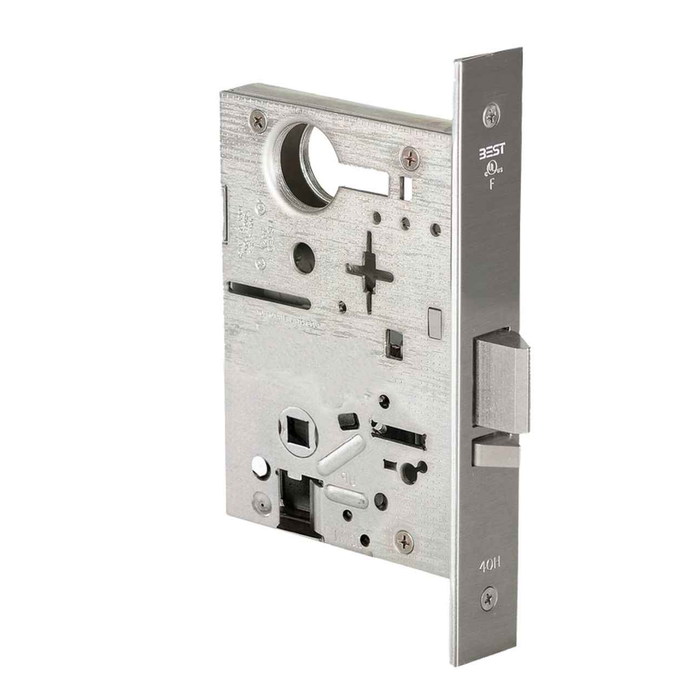

BEST 45HCA Series Heavy Duty Mortise Lockbody with Holdback Function - Field Reversible

BEST 45HCA Series Heavy Duty Mortise Lockbody with Holdback Function - Field Reversible

Professional Grade Mortise Lock Solution for Commercial Applications

The BEST 45HCA Series represents heavy-duty mortise lock engineering designed for demanding commercial environments. This field-reversible lockbody features a 2-3/4" backset with solid stainless steel components and Grade 1 operational strength per ANSI A156.13 standards. The case construction utilizes 0.095" cold rolled steel measuring 5-7/8" H x 7/8" D x 4-1/16" W for exceptional durability in high-traffic applications.

Professional Features & Benefits

• Heavy-Duty Case Construction: 0.095" cold rolled steel case with zinc dichromate plating provides superior corrosion protection and structural integrity for commercial applications.
• Enhanced Latch Design: Solid one-piece stainless steel anti-friction latch delivers 50% more surface contact with strike for superior strength and security with precision-engineered curve for extended cycle life.
• Field-Reversible Operation: Reversible latch rotates 180 degrees for easy handing change without opening case, plus four-position hub toggle design for flexible configuration.
• Armored Front Protection: Completely surrounds latch and deadbolt providing increased lateral strength with staked assembly design for self-alignment during installation.
• Grade 1 Performance: ANSI A156.13 Series 1000 Grade 1 Operation and Strength certification with Grade 2 Security for professional reliability.
• Advanced Security Features: Solid machined cylinder rings with wavy washer provides wrenching resistance, plus cylinder security screw prevents core removal.
• Roller Bearing Mechanism: Smooth, wear-resistant operation with lever return spring mechanism in trim for enhanced protection against lever droop.
• Antimicrobial Finish Options: Available with UltraShield antimicrobial protected coating (626AM, 630AM) for healthcare and high-cleanliness applications.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or thick door configuration up to 5"), mortise pocket dimensions, and handing requirements.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper backset alignment.
3. Prepare door mortise pocket to accommodate case dimensions of 5-7/8" H x 7/8" D x 4-1/16" W with appropriate clearances for installation.
4. Install lockbody into mortise pocket and secure with four case cover screws at each corner for enhanced case integrity.
5. Configure four-position hub toggle to determine locked/unlocked operation for each hub based on application requirements.
6. Test latch and deadbolt operation to verify proper alignment, smooth function, and complete 3/4" latch throw and 1" deadbolt throw. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Government and Municipal Buildings
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• High-Security Commercial Environments

Why Choose BEST Quality?

BEST 45HCA Series mortise locks deliver professional-grade reliability with 0.095" cold rolled steel construction and solid stainless steel components engineered for demanding commercial applications. The Grade 1 operational strength certification and enhanced case integrity design with four corner screws plus interlocking armored front ensure dependable performance in high-traffic environments. Multiple finish options including antimicrobial coatings provide versatility for specialized applications where cleanliness is a priority.
