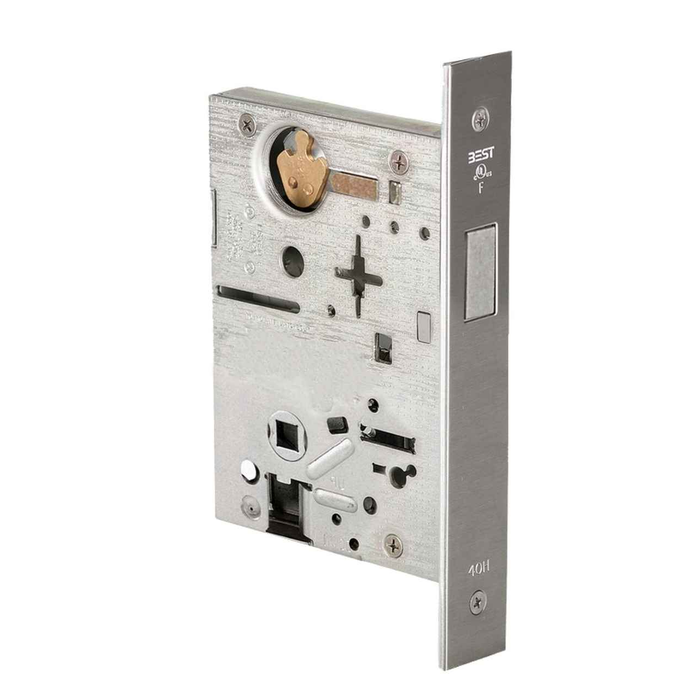

BEST 45HCA Series Heavy Duty Mortise Lockbody with Deadlock Function

BEST 45HCA Series Heavy Duty Mortise Lockbody with Deadlock Function

(No reviews yet) Write a Review

Model: 45HCAWD626
$407.00
$251.67
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$407.00
$251.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST 45HCA Series Heavy Duty Mortise Lockbody with Deadlock Function

Professional-Grade Mortise Lock Case for Commercial Applications

The BEST 45HCA Series mortise lockbody delivers heavy-duty performance with deadlock function for demanding commercial applications. This field-reversible lock case features a 2-3/4" backset and accommodates doors 1-3/4" thick with options for doors up to 5" thick. Constructed from 0.095" cold rolled steel with stainless steel components, this ANSI A156.13 Grade 1 Operation and Strength rated lockbody provides superior durability and security.

Professional Features & Benefits

  • Heavy-Duty Steel Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for high-traffic commercial applications.
  • Stainless Steel Components: Solid one-piece stainless steel anti-friction latch offers 50% more surface contact with strike for superior strength and security.
  • Field Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening case, with four position hub toggle for flexible configuration.
  • Enhanced Case Integrity: Four case cover screws at each corner plus interlocking armored front and cover design at the latch provide maximum structural strength.
  • Roller Bearing Hub Mechanism: Provides smooth, wear-resistant operation for extended service life in demanding applications.
  • ANSI Grade 1 Performance: Meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength requirements for commercial-grade reliability.
  • Precision-Engineered Latch: Enhanced curve design provides improved cycle life with reduced wear to the strike for long-term performance.
  • Anti-Microbial Options: Available with UltraShield antimicrobial protected coating (626AM and 630AM finishes) for healthcare and high-cleanliness applications.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or up to 5" thick door configuration), backset requirements, and handing as applicable to this mortise lockbody.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper mortise preparation.
  3. Prepare door by cutting mortise pocket to accommodate the 5-7/8" H x 7/8" D x 4-1/16" W case dimensions and route faceplate area as specified.
  4. Install the lockbody into the prepared mortise and secure with appropriate fasteners per manufacturer torque specifications.
  5. Configure the four position hub toggle to determine locking operation for each hub and adjust reversible latch orientation as needed for door handing.
  6. Test lockbody operation to verify proper function of all mechanisms and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • High-Security Commercial Applications

Why Choose BEST Quality?

BEST 45HCA Series mortise lockbodies deliver professional-grade reliability with heavy-duty 0.095" cold rolled steel construction and stainless steel components engineered for demanding commercial applications. ANSI A156.13 Grade 1 Operation and Strength certification ensures dependable performance in high-traffic environments. The field-reversible design and roller bearing hub mechanism provide long-term durability where consistent operation is essential.

Product Specs

Series:
45H
Standard Cylinder:
SFIC Prep Less Core
Duty Level:
Heavy Duty
Keyed Function:
Double Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Lock Body
Subcategory:
Mortise
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Deadlock
Product Attribute:
Mortise Locks
Electronic:
No
Product Function:
Deadlock
Face Plate:
8" H x 1-1/4" W x 1/16" T
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

BEST 45HCAWD626 – Frequently Asked Questions

1) What does the WD deadlock function on a BEST 45HCA mortise lock actually do?
Deadlock function means there is no knob, lever or latch operation at all. It is a key-thrown deadbolt in a mortise case, double cylinder, so it is keyed from both sides and there is no thumbturn release. The bolt is stainless steel with a 1 inch throw. Use it where you want a mortise-format deadbolt on an opening, not a latching lockset. If people need to get through the door without a key, this is the wrong function.
2) Does the BEST 45HCA lockbody come with cylinders or cores?
No cores are included. The 45HCA ships as a lock body only, prepped for BEST small format interchangeable core and less core, so you supply two SFIC cores to key it (it is a double cylinder function, keyed both sides). Locksmiths pinning to an existing BEST system can drop their own cores straight in. If you need drill resistance, note that the case carries Grade 2 security as built, and Grade 1 security requires a drill resistant core (1CD, 1CDP, 1CDF or 1CDX) with escutcheon trim.
3) Do I have to specify handing when ordering the BEST 45H mortise lock case?
Handing is a required selection: right hand, left hand, right hand reverse bevel, or left hand reverse bevel. That said, the case is field reversible. The latch rotates 180 degrees without opening the case, so a wrong-hand call is fixable on the job rather than a return. The auxiliary bolt is non-handed.
4) Will a 45HCA mortise lock work in my existing door prep and strike?
The 45HCA uses a 2-3/4 inch backset, which is the standard mortise backset, so it lines up with a mortise pocket cut for a standard commercial mortise lock. The deadbolt throws 1 inch and the latchbolt 3/4 inch, so the strike has to have the depth for a 1 inch bolt. The lock face self-adjusts to the door bevel during installation. If your opening needs it, a 7/8 inch lip to center strike can be added to the order.
5) Is the BEST 45HCA mortise lock ANSI Grade 1?
The 45H series is rated to ANSI A156.13, Series 1000, Grade 1 for Operation and Strength, and Grade 2 for Security. The design also meets the intent of ANSI A117.1 section 404.2.6. If your spec calls for Grade 1 across the board including security, BEST's 47H series is the one rated Grade 1 for Operational, Strength and Security, or you add a drill resistant core to the 45H with escutcheon trim.
6) Which finish should I order for a hospital or clinic mortise lock?
Two antimicrobial options are offered on the 45HCA: 626AM, satin chrome with UltraShield coating, and 630AM, satin stainless with UltraShield. The coating inhibits growth of bacteria and other microbes on the hardware surface, and BEST calls it out for healthcare, elderly care, education, transportation, food service and hospitality. Everything else in the range is a standard finish, so if cleanliness is the driver, the AM suffix is the choice.
7) Is this a complete mortise lockset or just the lock case?
Lock body only. The 45HCA is the mortise case that goes in the door pocket, with the faceplate and the deadbolt mechanism. Because the function is deadlock, there is no lever or knob trim in the package, and no cores, so a full opening needs the cores and the appropriate cylinder trim or escutcheon plus a strike. Contractors bidding this should price the case, the cores and the trim separately.
8) What finishes does the BEST 45HCA mortise lockbody come in?
Fifteen in all: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 oil rubbed satin bronze, 618 bright nickel, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 690 statuary dark bronze, plus 626AM and 630AM antimicrobial. Worth knowing on a building where you are matching openings: 613 is meant to wear to an antique appearance over time, and 690 stays a dark brown. The rest are clear coated or plated and hold their look.
9) Can I get tamper resistant screws on a BEST mortise lock case?
Yes, security head screws are an ordering option on the 45HCA, selected yes or no when you place the order. On a case that already uses four cover screws at each corner with an interlocking armored front, security heads are the sensible add on high-abuse openings like schools, transit and multi-tenant corridors.
10) How durable is the BEST 45HCA case for a high traffic commercial door?
The case, cover and armored front are 0.095 inch cold rolled steel, zinc dichromate plated against corrosion, with a roller bearing hub mechanism for wear resistance. The latch is solid one-piece stainless, oil impregnated, and BEST claims 50 percent more surface contact with the strike than a conventional latch. It is classed heavy duty and commercial, not residential, and it is a purely mechanical lock with no electronics in it.
