BEST 45HCA Series Heavy Duty Mortise Lockbody with Deadlock Function

BEST 45HCA Series Heavy Duty Mortise Lockbody with Deadlock Function

Professional Grade Mortise Lock Case for Commercial Applications

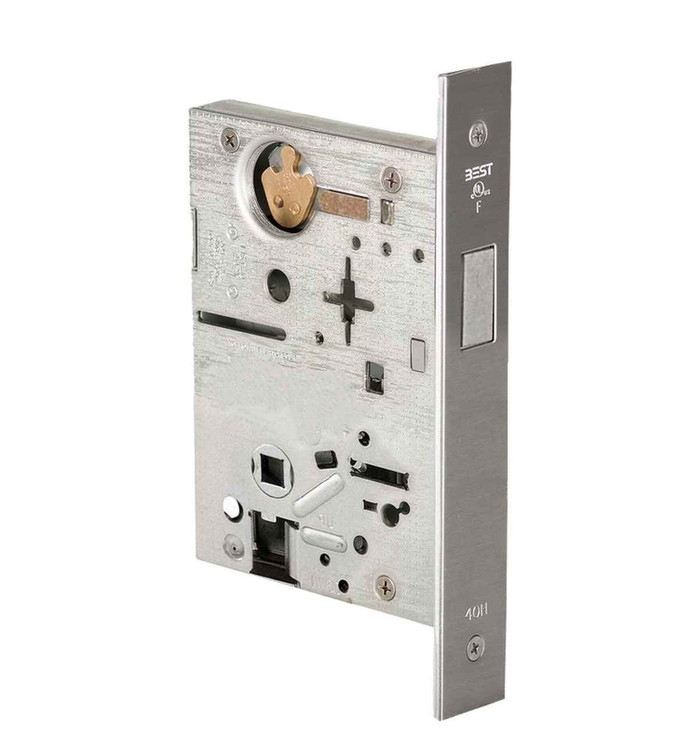

The BEST 45HCA Series mortise lockbody delivers Grade 1 operational and strength performance with deadlock function for demanding commercial applications. This field-reversible lockbody features a 2-3/4" backset and accommodates doors from 1-3/4" to 5" thick. Constructed with 0.095" cold rolled steel case measuring 5-7/8" H x 7/8" D x 4-1/16" W, this heavy-duty lock meets ANSI A156.13 Series 1000 Grade 1 standards for superior durability and security.

Professional Features & Benefits

• Heavy-Duty Steel Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for high-traffic commercial applications.
• Enhanced Case Integrity: Four corner case cover screws plus interlocking armored front and cover design at the latch ensure superior structural performance.
• Solid Stainless Steel Latch: One-piece anti-friction latch provides 50% more surface contact with strike for superior strength and security with precision-engineered curve for enhanced cycle life.
• Field Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening case, with four-position hub toggle for flexible configuration.
• Roller Bearing Hub Mechanism: Provides smooth, wear-resistant operation for long-term reliability in demanding applications.
• Grade 1 Performance: Meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength standards with Grade 2 Security rating for commercial applications.
• Versatile Door Compatibility: Standard configuration for 1-3/4" doors with thick door options available up to 5" thickness for various installation requirements.
• Anti-Microbial Options: Available with UltraShield antimicrobial protected coating (626AM and 630AM finishes) for healthcare and high-cleanliness applications.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" standard, up to 5" with thick door configuration), 2-3/4" backset, and proper mortise pocket dimensions.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 8" H x 1-1/4" W faceplate.
3. Prepare door by cutting mortise pocket to accommodate the 5-7/8" H x 7/8" D x 4-1/16" W case dimensions and routing as specified in manufacturer instructions.
4. Install the lockbody into the mortise pocket and secure with appropriate fasteners, ensuring the self-aligning armored front properly adjusts to door bevel during installation.
5. Configure the four-position hub toggle to determine locked/unlocked operation for each hub and set field-reversible latch orientation as needed for door handing.
6. Test lockbody operation to verify proper deadbolt throw (1"), latchbolt function (3/4" throw), and smooth roller bearing hub mechanism operation. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST 45HCA Series mortise lockbodies deliver professional-grade reliability with 0.095" cold rolled steel construction and Grade 1 ANSI A156.13 Series 1000 performance standards. The solid stainless steel anti-friction latch and roller bearing hub mechanism provide enhanced cycle life and wear resistance for demanding commercial applications. Engineered for superior strength and security where dependable performance is essential.
