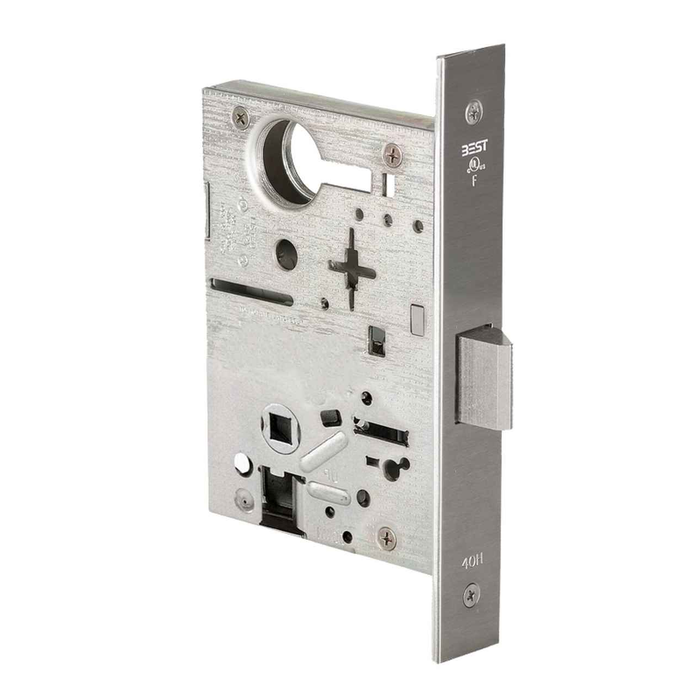

BEST 45HCA Series Heavy Duty Mortise Lockbody with Privacy Function

BEST 45HCA Series Heavy Duty Mortise Lockbody with Privacy Function

(No reviews yet) Write a Review

Model: 45HCALT626
$586.00
$372.95
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$586.00
$372.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST 45HCA Series Heavy Duty Mortise Lockbody with Privacy Function

Professional-Grade Mortise Lock Case for Commercial Applications

The BEST 45HCA Series mortise lockbody delivers heavy-duty performance with privacy function capability for demanding commercial environments. This field-reversible lock case features a 2-3/4" backset, solid stainless steel anti-friction latch with 3/4" throw, and 1" throw stainless steel deadbolt. Constructed from 0.095" cold rolled steel with zinc dichromate plating, the case measures 5-7/8" H x 7/8" D x 4-1/16" W and meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength standards.

Professional Features & Benefits

  • Heavy-Duty Steel Construction: 0.095" cold rolled steel case, cover, and armored front with zinc dichromate plating provides exceptional durability and corrosion resistance for commercial applications.
  • Advanced Anti-Friction Latch: Solid one-piece stainless steel latch provides 50% more surface contact with strike for superior strength and security with oil-impregnated operation.
  • Field-Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening case, with four position hub toggle for flexible configuration.
  • Enhanced Case Integrity: Four case cover screws at each corner plus interlocking armored front and cover design at the latch for maximum structural strength.
  • Precision Engineering: Roller bearing hub mechanism provides smooth, wear-resistant operation with lever return spring mechanism in trim for enhanced protection against lever droop.
  • Grade 1 Performance: Meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength requirements with Grade 2 Security rating for professional applications.
  • Self-Aligning Installation: Armored front self-aligns with door bevel during installation, with self-aligning trim mechanism for fast, accurate mounting.
  • Comprehensive Security Features: Solid machined cylinder rings with wavy washer provides wrenching resistance, plus cylinder security screw prevents core removal.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or up to 5" thick door configuration), stile width, and handing as applicable to this mortise lockbody.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 8" H x 1-1/4" W faceplate.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the 2-3/4" backset configuration.
  4. Install all mounting hardware and secure the lockbody to door per manufacturer torque specifications, utilizing the self-aligning armored front design.
  5. Adjust operational components including the four position hub toggle for proper alignment, latching, and smooth operation of the 3/4" throw latch and 1" throw deadbolt.
  6. Test device operation to verify proper function of the roller bearing hub mechanism and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST mortise lockbodies deliver professional-grade reliability with 0.095" cold rolled steel construction and precision-engineered components rated for heavy-duty commercial applications. The solid stainless steel anti-friction latch provides 50% more surface contact for superior strength, while the roller bearing hub mechanism ensures smooth, wear-resistant operation. Engineered for demanding commercial environments where dependable security and long-term performance are essential.

Product Specs

Series:
45H
Standard Cylinder:
SFIC Prep Less Core
Duty Level:
Heavy Duty
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Lock Body
Subcategory:
Mortise
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Privacy
Product Attribute:
Mortise Locks
Electronic:
No
Product Function:
Privacy/Bed/Bath
Face Plate:
8" H x 1-1/4" W x 1/16" T
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

BEST 45HCALT626 – Frequently Asked Questions

1) Does the BEST 45HCA privacy mortise lock come with trim and levers, or is it just the lock case?
What ships is the mortise lock body alone, field reversible. Levers, roses or escutcheons, and the strike package are separate items you specify to match the opening. Plan on ordering trim in the same finish as the case front so the opening looks consistent.
2) Will the BEST 45HCA privacy mortise lock fit a 1-3/4 inch door?
Yes. The standard configuration of the 45H mortise case is built for 1-3/4 inch doors, which is the usual commercial thickness. For thicker doors, a thick-door configuration covers up to 5 inches, but you have to specify the thickness when you order it. Backset is 2-3/4 inches, so the door pocket has to be routed for that.
3) Do I need to order the BEST 45HCA privacy lockbody handed?
Handing is a required selection (RH, LH, RHRB or LHRB), but the latch is reversible in the field without opening the case: it rotates 180 degrees, and there is a four position hub toggle for configuration. So if the door turns out to swing the other way on install day, you can change it on the job rather than reordering.
4) Is a privacy mortise lock keyed, and can I get into the room in an emergency?
The 45HCA privacy function is non-keyed. It is the bed and bath type function, thumbturn or pushbutton inside, with no cylinder keying. If you need a room that staff or security can key into, the privacy function is the wrong choice and you want a keyed function in the same 45H case instead.
5) Will the 45HCA latch into the strike that is already in my frame?
The latchbolt throws 3/4 inch and the deadbolt throws 1 inch, both stainless steel, off a 2-3/4 inch backset. If the existing frame prep was cut for a 2-3/4 inch backset mortise lock with the same lip-to-center strike, it will latch. A 7/8 inch lip-to-center strike is a selectable option when ordering, which is how you match a frame whose strike sits at that dimension.
6) What ANSI grade does the BEST 45H mortise lock meet?
ANSI A156.13, Series 1000, Grade 1 for Operation and Strength, with a Grade 2 Security rating. To reach Grade 1 Security you have to pair it with a drill resistant core (1CD, 1CDP, 1CDF or 1CDX) on escutcheon trims, or the 1EK7K4 high security cylinder on sectional trims. The 47H series carries Grade 1 on all three, including security, if your spec calls for that outright.
7) What size door prep and faceplate cutout does this BEST mortise lock need?
The case is 5-7/8 x 7/8 x 4-1/16 inches and the faceplate is 8 x 1-1/4 x 1/16 inches, so the door needs a mortise pocket and face rout sized to that with a 2-3/4 inch backset. The armored front self-aligns to the door bevel during installation, so you do not have to bevel the face separately.
8) Which finish should I pick for a hospital or patient restroom?
For healthcare, elderly care, education, food service and transportation, BEST offers UltraShield antimicrobial finishes: 626AM satin chrome and 630AM satin stainless steel. The coating inhibits growth of bacteria and other microbes on the hardware surface. The other thirteen finishes run from 605 bright brass through 690 dark bronze, including 613 oil rubbed bronze, which is meant to wear to an antique look over time.
9) Does the BEST 45HCA take a small format interchangeable core?
The case comes prepped for BEST SFIC, less core, so the core is ordered separately and keyed to your system. On the privacy function there is no keying, but the SFIC prep is what makes the 45H family standardize across a building: the same core platform carries through the keyed functions on your other doors.
10) Is a mortise lock the right choice here, or should I use a cylindrical lever lock?
A mortise case like the 45HCA goes into a routed pocket in the door edge rather than a bored hole, and it carries both a 3/4 inch latchbolt and a separate 1 inch deadbolt in one case. That is what you want on heavy commercial traffic, where it is rated Grade 1 for operation and strength. A cylindrical lever is faster and cheaper to install on a bored door, but if the door is already mortise prepped, or the spec calls for a deadbolt in the same case, the mortise lock is the one that fits.
11) What are the security head screws option on the BEST 45H mortise lock for?
It is a required yes or no choice at order time. Security head screws resist removal with common drivers, which matters in corrections, schools, transit and any opening where the hardware itself is a target. The case also uses four cover screws at the corners with an interlocking armored front and cover at the latch, and a cylinder security screw that prevents core removal.
12) Is the BEST 45HCA an electrified or access control lock?
No. It is a mechanical mortise case with no electrical option. If the opening needs card access, remote release or monitoring, this is not the lock body for it.
