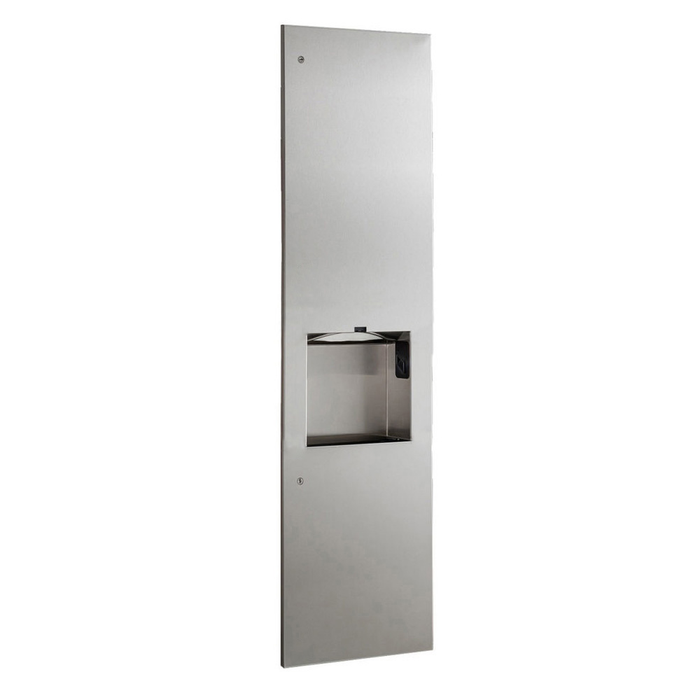

Bobrick B-38030 Series Recessed Paper Towel Dispenser /Automatic/ Manual/ Hand Dryer & Waste

Bobrick B-38030 Series Recessed Paper Towel Dispenser /Automatic/ Manual/ Hand Dryer & Waste

(No reviews yet) Write a Review

Model: 38030 115V

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,625.56
$2,398.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bobrick B-38030 Series Recessed Paper Towel Dispenser/Automatic Hand Dryer/Waste Bin (3-in-1 Unit)

Flush TrimLine design, space-saving cabinet depth, and satin finish stainless steel door compliments any washroom from Class-A offices to fine restaurants. Door has 90° return, conceals flange. Dispenses 600 multi-fold or 450 C-fold paper towels. Built-in TowelMate®. Removable leak-proof, 3.6-gal (13.7-L) waste container.

Available in:
B-38030 115V: Automatic Hand Dryer: 110-120V AC, 8.0 Amp, 920 Watts, 50/60 Hz, Single Phase, CUListed
B-38030 230V: Automatic Hand Dryer: 208-240V AC, 3.6-4.2 Amp, 750-1000 Watts, 50/60 Hz, Single Phase, CE marked, CUListed, Meets Electrical Safety Requirement AS/NZS 600335

Rough wall opening 362 x 1412 x 100mm (14-1/4″ x 55-9/16″ x 4″).
Patented

Features
  • Flush TrimLine design, space-saving cabinet depth, and satin finish stainless steel door compliments any washroom from Class-A offices to fine restaurants.
  • Door has 90° return, conceals flange.
  • Dispenses 600 multi-fold or 450 C-fold paper towels.
  • Built-in TowelMate®.
  • Removable leak-proof, 3.6-gal (13.7-L) waste container.
  • Available in:
    B-38030 230V: Automatic Hand Dryer: 208-240V AC, 3.6-4.2 Amp, 750-1000 Watts, 50/60 Hz, Single Phase, CE marked, CUListed, Meets Electrical Safety Requirement AS/NZS 600335
  • Rough wall opening 362 x 1412 x 100mm (14-1/4″ x 55-9/16″ x 4″).
    Patented

Product Specs

  • Finish : Satin-Finish Stainless Steel
  • Operation : Manual
  • Mounting Options : Recessed Mounted
  • Paper Type : Multi-Fold Towel
  • Towel Capacity : 450 C-fold; 600 multifold
  • Waste Capacity : 3.6-gal (13.7-L)

Resources

Manufacturer Resources

Product Specs

Operation:
Manual
Waste Capacity:
3.6-gal (13.7-L)
Product Type:
Paper Towel Dispenser
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Paper Towel Dispenser
Mounting Method:
Recessed Mounted
Department:
Plumbing

Bobrick 38030 115V – Frequently Asked Questions

1) What size wall opening do I need to rough in for the Bobrick B-38030 recessed towel dispenser and hand dryer unit?
Frame the rough wall opening at 14-1/4 x 55-9/16 x 4 inches (362 x 1412 x 100 mm). That 4 inch depth is the number to watch on a stud wall, since the cabinet is a space-saving depth but still needs clear space behind the finished wall. The door has a 90 degree return that conceals the flange, so minor wall finish irregularities at the opening edge get covered.
2) Is the Bobrick B-38030 available in 208-240V for my building, or only 115V?
Both. The 115V version runs the hand dryer at 110-120V AC, 8.0 Amp, 920 Watts, 50/60 Hz, single phase, cULus Listed. The 230V version runs at 208-240V AC, 3.6-4.2 Amp, 750-1000 Watts, 50/60 Hz, single phase, CE marked, cULus Listed, and meets electrical safety requirement AS/NZS 600335. Voltage is the only ordering choice, so pick it off the circuit you are feeding the unit from.
3) Can the B-38030 be surface mounted if my wall cavity is too shallow?
No. The B-38030 is a recessed unit only, and it needs a 14-1/4 x 55-9/16 x 4 inch wall opening. On a solid masonry wall, a shallow chase, or anywhere you cannot open up 4 inches of depth, you need a surface-mounted towel dispenser and dryer instead of this cabinet.
4) How many paper towels does the B-38030 hold, and what fold does it take?
It holds 600 multi-fold or 450 C-fold towels. Built-in TowelMate helps feed towels one at a time rather than in clumps, which is what keeps a high-traffic restroom from burning through a fill before the next service round. Towel dispensing is manual; the hand dryer is the automatic part of the unit.
5) How big is the waste bin in the Bobrick B-38030, and does it come out for servicing?
The waste container is 3.6 gallons (13.7 L), removable, and leak-proof. Housekeeping pulls the liner and container out through the door rather than reaching into the cabinet. On a restroom with steady traffic, that capacity generally means emptying on each routine round rather than trusting it overnight.
6) Does one B-38030 cabinet really replace three separate restroom fixtures?
Yes, it is a single recessed cabinet combining a manual paper towel dispenser, an automatic hand dryer, and a waste receptacle. For a spec writer that means one rough opening and one electrical feed instead of three separate wall units and the wall space they each eat. Note the tradeoff: users who want a towel still pull one manually, so you are not eliminating towel restocking by adding the dryer.
7) What finish is the Bobrick B-38030 door, and will it hold up in a public restroom?
Satin-finish stainless steel with a flush TrimLine door. Satin hides fingerprints and cleaning marks better than a mirror finish, which is why it gets specified everywhere from Class-A office floors to restaurants. The flush face with the 90 degree return leaves no exposed flange edge for users to catch or vandalize.
