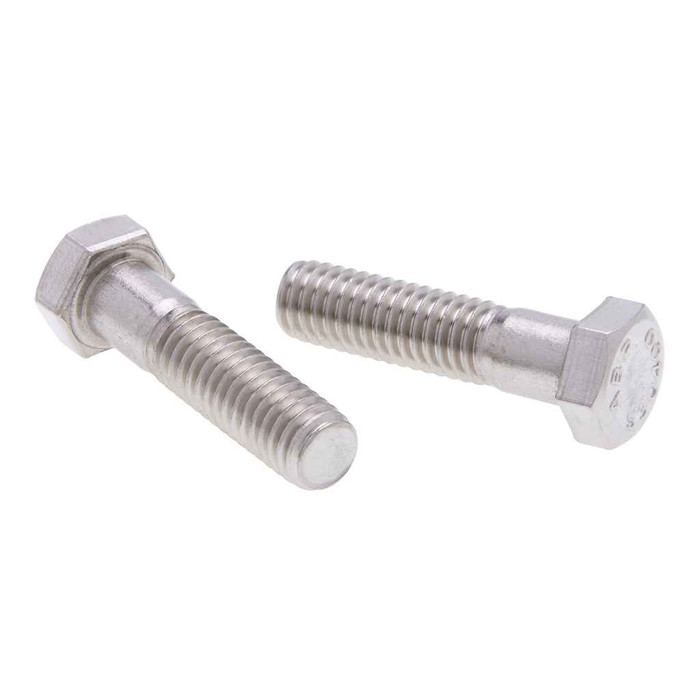

Bolts 1/4-28 X 1-1/2 Hxbt SS (Jar 100)
Features
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- May-32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.150 - 0.163
- Fastener Length:
- 1/1/02
- Fastener Width:
- 0.488 - 0.505
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.2450 - 0.2500 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 3.6 in
- Product Length:
- 3 in
- Product Weight:
- 1148 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 28
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH205 – Frequently Asked Questions
1) Is the Metallics JSBH205 hex bolt a fine thread or coarse thread 1/4 inch?
Fine thread. The JSBH205 is a 1/4-28 hex bolt, 28 threads per inch, so it mates with 1/4-28 fine-thread nuts and tapped holes only. A standard 1/4-20 coarse nut will not run onto it. Shank outside diameter measures 0.2450 to 0.2500 inch.
2) Will the Metallics JSBH205 stainless bolt hold up in a damp or washdown environment?
It is 18-8 stainless steel, which is used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment. Aggressive chemical exposure (strong chlorides, for example) can call for 316 stainless or other special materials instead.
3) What wrench or socket size fits the head of the Metallics JSBH205 bolt?
The hex head measures 0.428 to 0.438 inch across the flats, which is a 7/16 inch wrench or socket. Head type is a standard hex.
4) How strong is the Metallics 1/4-28 stainless hex bolt, and can I use it on a structural connection?
Tensile strength runs 100,000 to 150,000 psi minimum with a 65,000 psi minimum yield, and hardness is Rockwell B95 to C32. That is typical austenitic stainless territory, suitable for equipment and general mechanical fastening where corrosion resistance drives the choice. It is not sold to a structural bolt standard, so for load-rated structural steel connections use a bolt specified to that standard.
5) How are the Metallics JSBH205 bolts packaged and what is the minimum I can buy?
They ship in a jar of 100 pieces, and 100 count is the order minimum. The packed jar weighs 1148 g. Other sizes and quantities are available by request.
6) Do these Metallics stainless hex bolts qualify for a federally funded or Buy American job?
Metallics lists the JSBH205 as both ARRA compliant and Buy American compliant. Country of origin is recorded as multiple, so if your contract requires a single named origin on the submittal, specify that at the time of order.
7) Is the JSBH205 an 18-8 or a 316 stainless bolt?
18-8. Metallics offers hex cap screws in both 18-8 and 316, and both are austenitic alloys, but the JSBH205 is the 18-8 version. Choose 316 instead if the installation sees salt spray or chloride chemistry.
