Metallics JSBH203 Bolts 1/4-28...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.46
$1.93

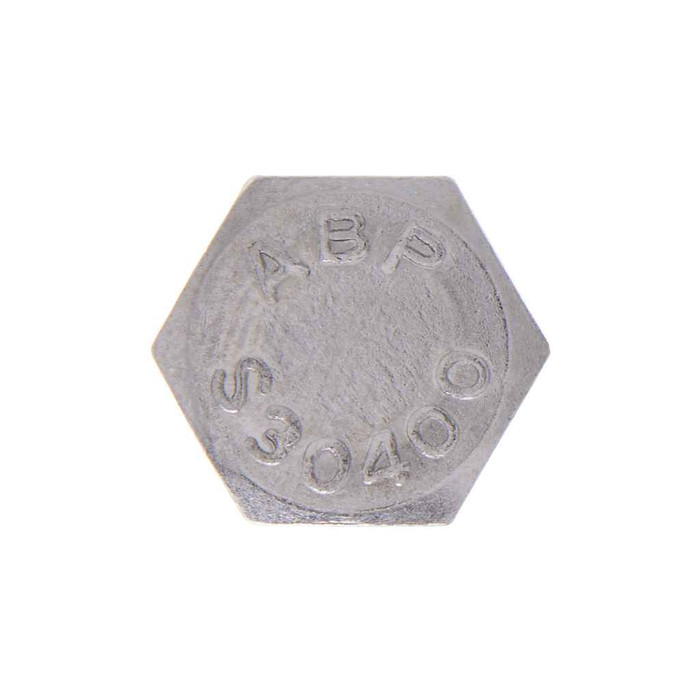

Metallics JSBH203 Bolts 1/4-28 X 1 Hxbt SS (Jar 100)

Metallics JSBH203 Bolts 1/4-28 X 1 Hxbt SS (Jar 100)

(No reviews yet) Write a Review

Model: JSBH203
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.46
$1.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/4-28 X 1 Hxbt SS (Jar 100)

  • Features

    • Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
    • 18-8 and 316 stainless steel cap screws are both made from austenitic alloy

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
May-32 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.428 - 0.438 in.
Fastener Height:
0.150 - 0.163
Fastener Length:
1
Fastener Width:
0.488 - 0.505
Hardness:
Rockwell B95-C32
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.2450 - 0.2500 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
839 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
100000 - 150000 psi minimum
Thread Per Inch:
28
Yield Strength:
65000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
SBHC and JSBHC
Product Details:
Hexagonal Bolt
Product Material:
18-8 Stainless Steel

Metallics JSBH203 – Frequently Asked Questions

1) Is the Metallics JSBH203 hex bolt a fine thread or coarse thread 1/4 inch bolt?
Fine thread. The JSBH203 is 1/4-28, meaning 28 threads per inch, so it mates with 1/4-28 UNF nuts and tapped holes only. A standard 1/4-20 coarse nut will not run onto it. Shank diameter measures 0.2450 to 0.2500 inch and the bolt is 1 inch long.
2) Will 18-8 stainless hex bolts hold up outdoors or in a wash-down area?
The JSBH203 is 18-8 stainless, an austenitic alloy used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment and wash-down environments. Aggressive chemical exposure, chlorides or salt spray is where 18-8 falls short; those applications call for 316 stainless instead.
3) Does the JSBH203 come loose or in a container, and what is the minimum I can buy?
It ships as a jar of 100 pieces, and 100 count is the order minimum, so you buy a full jar rather than individual bolts. The jar weighs 839 g filled. Jar packaging suits a service van or a shop bin where you need the count to stay intact.
4) Will these stainless bolts satisfy a Buy American or ARRA requirement on a federal job?
Metallics lists the JSBH203 as both ARRA compliant and Buy American compliant. Country of origin is recorded as multiple, so if your contract requires a specific origin on the submittal, state that need with the order.
5) I need a different length or a bigger quantity of 1/4-28 stainless hex bolts. Is that available?
The SBHC and JSBHC series covers other sizes and quantities by request; JSBH203 is specifically the 1/4-28 by 1 inch in a 100-count jar. Tell us the diameter, thread pitch, length and count you need and the series is sourced from the same 18-8 and 316 stainless family.
6) Can I use a 1 inch long 1/4-28 bolt with a nut, or does it need a tapped hole?
Either works. The JSBH203 has a 1 inch shank under the hex head and 28 TPI fine threads, so it can run into a 1/4-28 tapped hole or take a 1/4-28 nut and washer. Grip length matters: subtract your material stack from the 1 inch so there is enough thread left engaged in the nut or tapped part.
