Metallics JSBH206 Bolts 1/4-28...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.39
$3.86

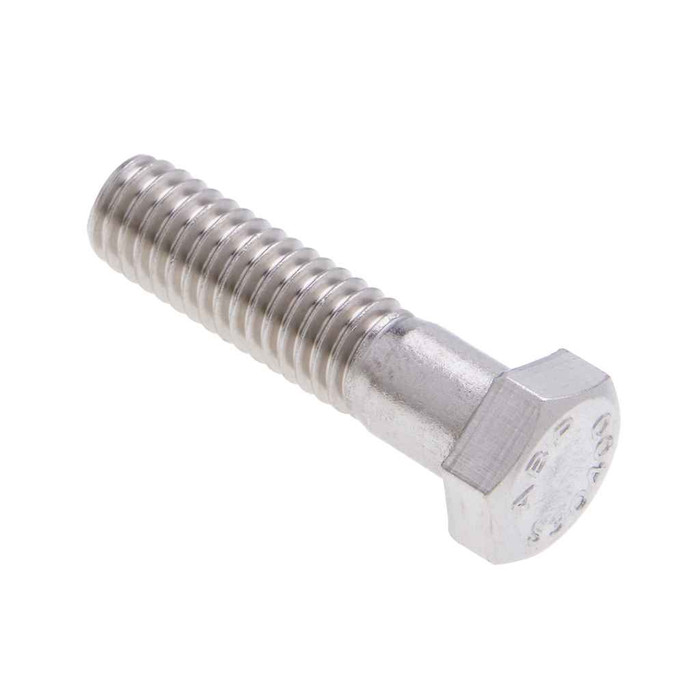

Metallics JSBH206 Bolts 1/4-28 x 2 HXBT SS (Jar 100)

Metallics JSBH206 Bolts 1/4-28 x 2 HXBT SS (Jar 100)

(No reviews yet) Write a Review

Model: JSBH206
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.39
$3.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/4-28 x 2 HXBT SS (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
    • 18-8 and 316 stainless steel cap screws are both made from austenitic alloy

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
May-32 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.428 - 0.438 in.
Fastener Height:
0.150 - 0.163
Fastener Length:
2
Fastener Width:
0.488 - 0.505
Hardness:
Rockwell B95-C32
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.2450 - 0.2500 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1461 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
100000 - 150000 psi minimum
Thread Per Inch:
28
Yield Strength:
65000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
SBHC and JSBHC
Product Details:
Hexagonal Bolt
Product Material:
18-8 Stainless Steel

Metallics JSBH206 – Frequently Asked Questions

1) Is the Metallics JSBH206 hex bolt a coarse or fine thread, and what nut do I need?
Fine thread. The JSBH206 is a 1/4-28 hex bolt, 28 threads per inch, so it takes a 1/4-28 UNF nut or a tapped 1/4-28 hole. A standard 1/4-20 coarse nut will not thread onto it. Shank diameter runs 0.2450 to 0.2500 in.
2) Will stainless 18-8 hex bolts hold up outdoors or in a wash-down area?
The JSBH206 is 18-8 stainless steel, an austenitic alloy used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment. For aggressive chemical exposure (chlorides, marine splash), 316 stainless is the step up, and some environments need special corrosion resistant materials beyond that.
3) Do Metallics JSBH206 stainless bolts meet Buy American and ARRA requirements on a public job?
Both the ARRA Compliant and Buy American Compliant flags are marked C for the JSBH206. Country of origin is listed as multiple, so if your spec requires a single documented origin, request the mill paperwork for the lot you receive.
4) What wrench or socket size fits the head of the Metallics JSBH206 bolt?
Head width across flats measures 0.428 to 0.438 in., which is a 7/16 in. wrench or socket. The head is a standard hex, so a six-point socket or open end both work.
5) How many bolts come in a jar, and can I buy fewer than 100?
They ship 100 to a jar, and 100 count is the order minimum, so the jar is the smallest unit. Other sizes and quantities are available by request if 1/4-28 x 2 in. is not the length you need.
6) Are these stainless bolts magnetic, and will they gall when I tighten them?
18-8 is an austenitic stainless, so it is essentially non-magnetic in the annealed state. Austenitic stainless is also prone to thread galling, which is worse on fine 28 tpi threads: run them in slowly, avoid impact drivers, and use an anti-seize on stainless-to-stainless assemblies.
