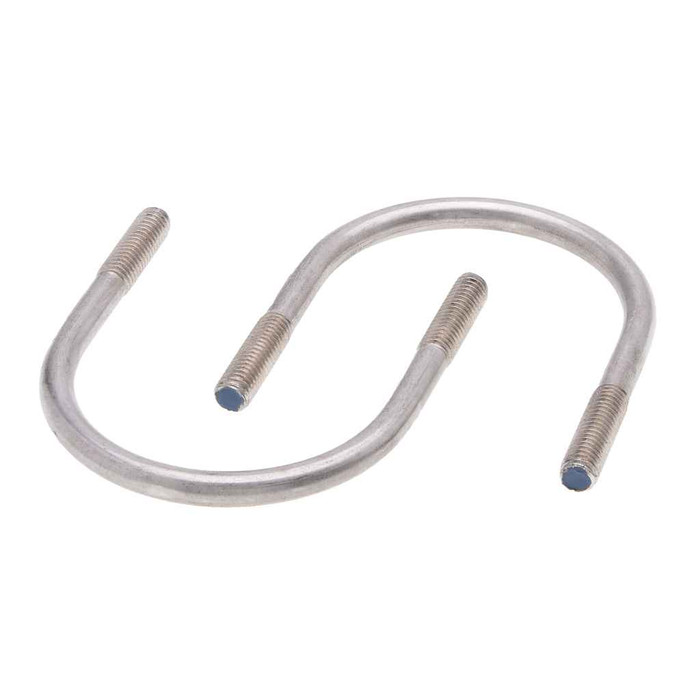

Bolts 3/8-16 x 2-3/4 x 1-3/4 U-Blt & SS (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.551 - 0.563 in.
- Fastener Height:
- 0.320 - 0.337
- Fastener Length:
- 2/3/04
- Fastener Width:
- 1/3/04
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Language Code:
- EN
- Material Standard:
- ASTM F594
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-U-Bolt_18-8_SS.pdf
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Fasteners
- Product Height:
- 4 in
- Product Length:
- 8 in
- Product Weight:
- 948 g
- Product Width:
- 203.2 MM
- Sub Division:
- Electrical-E H2
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 16
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- U-Bolt with Hex Nuts
- Type2:
- U-Bolt with Hex Nuts
- Series:
- UBS
- Product Details:
- U-Bolt with Hex Nuts
- Product Material:
- 18-8 Stainless Steel
Metallics UBS020 – Frequently Asked Questions
1) Is the Metallics UBS020 U-bolt stainless, and can it go outdoors or in a wet location?
Both the U-bolt and its nuts are 18-8 stainless steel, the common austenitic grade used where plain or zinc-plated steel would rust. That makes it suitable for exterior runs, damp mechanical rooms, and washdown areas. For chloride-heavy coastal or pool environments, 316 is the better choice.
2) Do the nuts come with the UBS020 U-bolt or do I order them separately?
Two hex nuts ship with each U-bolt, one per leg, so nothing extra is needed to make up the clamp. The nuts meet ASTM F594 for stainless fasteners. A mounting plate or channel is not included, so you supply whatever the legs pass through.
3) Is the Metallics UBS020 U-bolt Buy American compliant for a government or public works job?
It is flagged compliant for both Buy American and ARRA requirements, which is what a public agency or institutional procurement officer needs on the submittal. Country of origin is listed as multiple, so confirm the origin on the specific shipment if your contract requires a single stated country.
4) How many U-bolts come in a bag of Metallics UBS020, and can I buy just one?
They are bagged in tens, and the order minimum is 10 each, so a single piece is not a stock break. Metallics does make other sizes and quantities of the UBS series available by request if the 1-3/4 inch opening or the bag count does not suit the run.
5) Are the threads on the UBS020 standard right hand coarse thread?
Yes, right hand thread, 16 threads per inch on a 3/8 inch diameter, cut to ANSI/ASME B1.1. That is standard 3/8-16 UNC, so any off-the-shelf 3/8-16 stainless nut or washer set will run on the legs if you need to add one.
6) What trades actually use the Metallics UBS series U-bolt?
It is sold into electrical, plumbing, heating, and air conditioning work, typically strapping conduit, pipe, or tube to a plate, angle, or strut. For an electrician that means securing rigid conduit runs; for a mechanical contractor, hanging or anchoring copper and steel pipe where a stainless fastener is called for.
