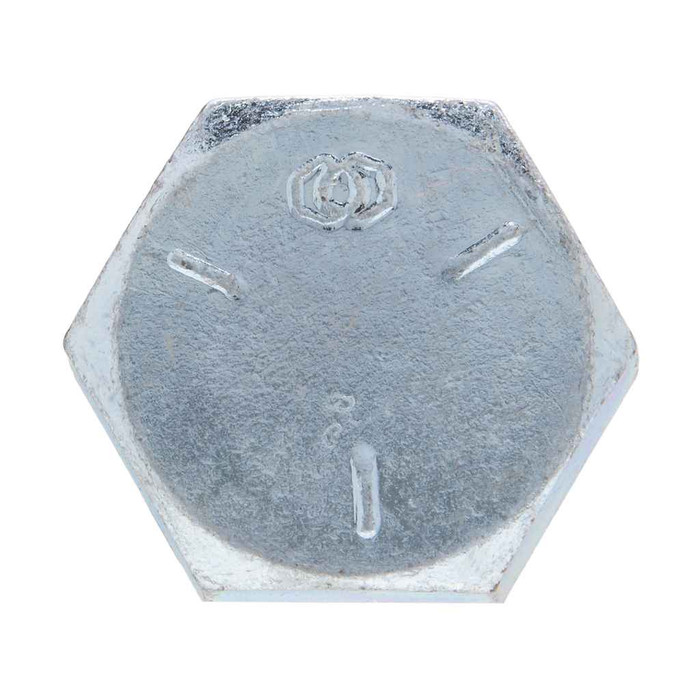

Bolts 5/8-11 X 1-1/4 G5 Hxbt Hdg (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 25/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.922 - 0.938 in.
- Fastener Height:
- 0.378 - 0.403
- Fastener Length:
- 1/1/04
- Fastener Width:
- 1.051 - 1.083
- Grade:
- 5
- Hardness:
- Rockwell C19-30
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.6170 - 0.6250 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 105000 psi minimum
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.269
- Yield Strength:
- 105000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC61G – Frequently Asked Questions
1) Do these Metallics Grade 5 bolts qualify for Buy American or ARRA government jobs?
No. The JG5HC61G is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. On a federally funded project with domestic-content requirements, you'll need a domestically produced fastener instead.
2) What size wrench or socket fits a 5/8-11 Grade 5 hex bolt from Metallics?
Head width across flats measures 0.922 to 0.938 inch, so a 15/16 inch socket or wrench is the fit. Head height is 25/64 inch, with 0.269 inch of wrenching height, which matters if you're working in a counterbored or recessed pocket.
3) Is the galvanized finish on these 5/8-11 bolts suitable for outdoor or damp locations?
The finish is galvanized over steel, which gives sacrificial zinc corrosion protection and is the usual choice for exterior and damp service, including rooftop and outdoor equipment mounting. Pair it with galvanized nuts and washers so you aren't mixing dissimilar coatings.
4) How many bolts come in the Metallics JG5HC61G jar, and can I buy fewer?
They ship as a jar of 50 with a minimum order of 50 each, so 50 is the smallest quantity. The jar pack is the point of the J prefix in the part number compared with the bulk G5HC version of the same series.
5) Will a 1-1/4 inch long bolt be long enough for my clamped material?
At 1-1/4 inches of length under the head, this bolt suits thin stacks: once you allow for a nut and washer, you have roughly half an inch to three-quarters of an inch of grip left, so it works best in a tapped hole or a single thin flange. For thicker clamp-ups, Metallics offers other lengths in the same G5HC and JG5HC series by request.
6) What steel are these Grade 5 hex cap screws made from?
Medium carbon steel in the AISI 1008-1026 range, heat-treated to reach Grade 5 properties. That's a plain carbon steel, not stainless, so the galvanized coating is what's doing the corrosion work. In a chemical or coastal environment where coating damage is likely, a stainless fastener is the better call.
