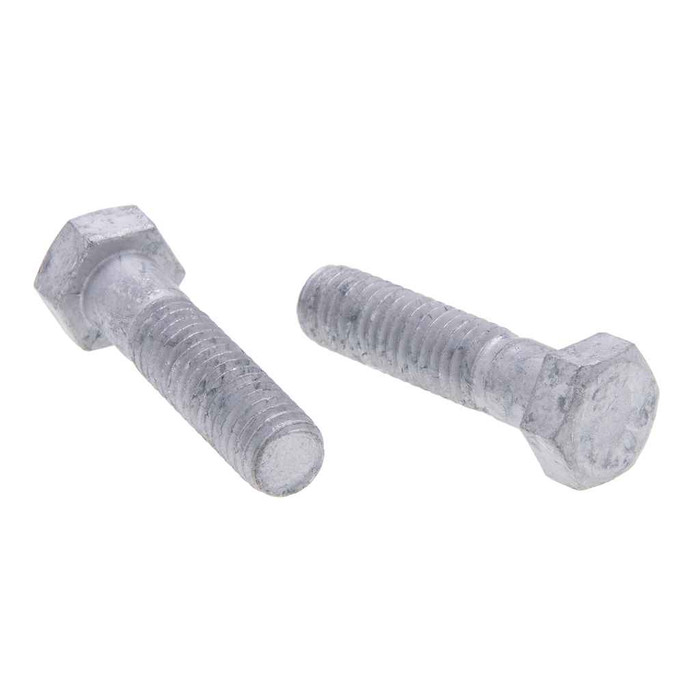

Bolts 7/16-14 x 3 HXBT Pln-St (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Type:
- Hex
- Fastener Length:
- 3
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 12.75 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 18
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC98PL – Frequently Asked Questions
1) Is a plain finish steel bolt okay for outdoor or damp electrical work?
No. The JBHC98PL is plain (unplated) steel, which means bare metal with no zinc or coating to resist corrosion. Keep these to dry indoor use such as interior strut, panel, and equipment mounting. For outdoors, rooftops, parking structures, or wash-down areas, order a zinc-plated or hot-dip galvanized 7/16-14 hex bolt instead.
2) How many bolts come in a jar of Metallics JBHC98PL, and is there an order minimum?
These ship 100 bolts to a jar, and 100 count is the order minimum, so a jar is the smallest buy. The filled jar weighs 12.75 lbs. Other sizes and quantities can be had by request.
3) Does this hex bolt meet a recognized dimensional standard for spec work?
Yes. The JBHC98PL hex bolt is built to ASME B18.2.1-1996, the dimensional standard for square and hex bolts and screws. That means head width across flats, head height, and thread length follow published values, so it drops into prep and wrench sizing a spec writer or inspector expects.
4) Will a standard 7/16 nut and washer work with these bolts?
Yes. With a 7/16-14 UNC thread, any standard 7/16 inch coarse-thread hex nut, lock nut, or 7/16 washer mates with it. Nuts and washers are not included with the jar, so add them to the order if you do not already stock them.
5) What is this 7/16-14 hex bolt typically used for on an electrical job?
It is a general purpose structural-style fastener stocked on the electrical side for hanging and anchoring: strut and channel runs, transformer and panel mounting feet, trapeze hangers, equipment frames, and bolting into tapped plate or through-drilled steel. Plain steel keeps it to interior locations.
6) Where are Metallics JBHC98PL bolts made?
Country of origin on the JBHC98PL is China. If your project carries a domestic-sourcing requirement in the contract documents, confirm that against the submittal before you commit the fastener package.
7) How big is the jar these 100 bolts ship in?
The packaged jar measures 7.25 in by 4.5 in by 4.5 in and weighs 12.75 lbs, which matters if you are loading a parts bin, gang box, or shelf tray on the truck.
