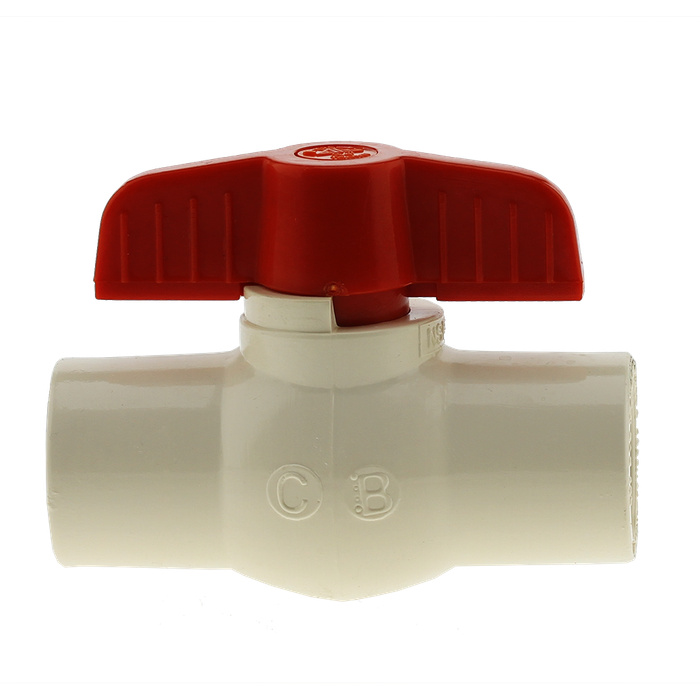

Boshart 0922CTS-07 3/4" CTS CPVC Ball Valve with PTFE Seat, EPDM Stem O-Ring
The Boshart 0922CTS-07 is a 3/4" CTS socket-end CPVC ball valve built for hot water rough-in applications where plumbers need a dependable shutoff that mates directly into CPVC piping runs. Part of the 0922CTS series, this valve is engineered specifically for hot water supply lines, and it also serves general water supply, swimming pool, and irrigation piping systems. The valve pairs a PTFE seat with an EPDM stem O-ring, giving installers a seal package suited to the thermal demands of hot water distribution behind the wall or under the floor. Its CPVC body construction allows it to be solvent-welded into existing or new CPVC supply lines without introducing dissimilar-metal connections, making it a straightforward addition to a rough-in plumbing package.
Key Features
- Trade Size: 3/4" CTS (copper tube size) socket connection for direct solvent-weld installation into CPVC piping.
- Durable Construction: CPVC body resists corrosion and is well suited to hot water supply piping where metallic valves may be prone to scale or corrosion over time.
- Socket Connection: CTS socket ends allow the valve to be solvent-welded inline with standard CPVC tubing for a permanent, leak-resistant joint.
- PTFE Seat: PTFE ball seats provide a low-friction sealing surface designed to hold up under the repeated open/close cycling of a shutoff valve.
- EPDM Stem O-Ring: EPDM stem seal is compatible with hot water applications, helping maintain a tight seal at the valve stem through temperature cycling.
- Series Application: Part of the 0922CTS series, purpose-built for hot water supply, general water supply, swimming pool, and irrigation applications.
Technical Specifications
- Country of Origin: China
- Packaging: 224 ea per case
- Trade Size: 3/4" CTS
- Body Material: CPVC
- Seat Material: PTFE
- Stem Seal: EPDM O-ring
Typical Applications
- Hot Water Supply Line Shutoff
- Residential and Commercial Water Supply Piping
- Swimming Pool Piping Systems
- Irrigation System Shutoffs
- CPVC Rough-In Plumbing Installations
Why Boshart?
Boshart's 0922CTS series ball valves combine a corrosion-resistant CPVC body with a PTFE seat and EPDM stem O-ring seal package matched to hot water service, giving plumbers and contractors a dependable shutoff for CPVC supply lines. The CTS socket configuration allows for straightforward solvent-weld integration into existing piping runs, supporting efficient rough-in installation across water supply, pool, and irrigation projects.
Manufacturer Resources
Product Specs
- list_batch:
- BOS-20260923
- Product Type:
- Ball Valve
- Connection Type:
- Socket
- Configuration:
- CTS
- Department:
- Plumbing
- Product Subgroup:
- Valves
- Product Material:
- CPVC
- Product Size:
- 3/4"
- Product Group:
- Valves
- Product Height:
- 1.55 in
- Product Weight:
- 0.2 lb
- Product Length:
- 3.3 in
- Product Width:
- 2.5 in
Boshart 0922CTS-07 – Frequently Asked Questions
1) Can I use a CPVC ball valve on a hot water line?
That is what the Boshart 0922CTS series is built for. The valve pairs a PTFE ball seat with an EPDM stem O-ring, a seal package matched to hot water service and the temperature cycling that comes with it. It also handles general cold water supply, swimming pool, and irrigation piping.
2) Do I need threads or a union to install the Boshart 0922CTS-07, or is it solvent weld only?
Solvent weld only. Both ends are CTS sockets, so the valve is cemented inline with CPVC solvent cement and primer per the cement maker's instructions. There is no threaded or union connection, which means it becomes a permanent part of the run. If you want a valve you can unthread for service later, choose a threaded or union-end valve instead.
3) What can I use instead of the Boshart 0922CTS-07 if the piping is not CPVC or I cannot solvent weld?
The Boshart 0922CTS-07 is a CPVC-bodied ball valve with CTS socket ends, so it has to be solvent welded into CPVC tubing. Where solvent welding is not an option, the SharkBite SBBV54 ball valve is a rough-in shutoff that connects without cement, making it the one to reach for on a repair where the line is wet or the material is not CPVC.
4) Why choose a CPVC ball valve over a brass one on a CPVC rough-in?
Going CPVC body keeps the whole run one material. The 0922CTS-07 solvent-welds straight into CPVC without introducing a dissimilar-metal joint, and the CPVC body resists corrosion and scale that can build on metallic valves in hot water service. A brass or push-fit valve is the choice when you need a transition to copper or PEX, or a connection you can take apart.
5) Is the SharkBite SBBV54 a direct substitute for a 3/4 inch CTS CPVC ball valve?
Both are rough-in shutoff ball valves, but they are not the same joint. The Boshart 0922CTS-07 is a 3/4 inch CTS socket valve that becomes a permanent solvent-welded part of the CPVC run, while the SharkBite SBBV54 is a rough-in shutoff valve that uses SharkBite's push connection instead of cement. Choose based on how the valve has to join the pipe, not on the fact that both are ball valves.
6) For a hot water supply shutoff, should I specify the Boshart 0922CTS-07 or a SharkBite ball valve?
The Boshart 0922CTS-07 pairs a PTFE seat with an EPDM stem O-ring specifically matched to hot water supply service, and its CPVC body keeps the joint free of dissimilar-metal connections in a CPVC hot water run. The SharkBite SBBV54 is the alternative where the shutoff has to go in as a rough-in without solvent welding. If the line is CPVC and the valve is being cemented in during rough-in, the 0922CTS-07 is the matched choice.
7) Is the Boshart 0922CTS-07 suitable for pool and irrigation piping as well as potable supply?
Yes. The 0922CTS series is listed for hot water supply, general residential and commercial water supply, swimming pool piping, and irrigation system shutoffs. Same valve across all four, provided the piping it ties into is 3/4 inch CTS CPVC.
8) What part number and case quantity should I order for the 3/4 inch Boshart CPVC ball valve?
The manufacturer part number is 0922CTS-07 for the 3/4 inch size, which is the only size on this model. Boshart packs it 224 each per case, so buyers standardizing a CPVC rough-in package across multiple units can order by the case.
9) Will a CPVC ball valve hold up to repeated open and close use as a shutoff?
The ball rides on PTFE seats, a low-friction sealing surface chosen for the repeated open/close cycling a shutoff sees, with an EPDM O-ring sealing the stem through temperature swings. For a valve that gets exercised often, that seal package is the reason to pick this over a general-purpose fitting.
