Boshart 0929S Slip PVC Ball Valve with EPDM Seat

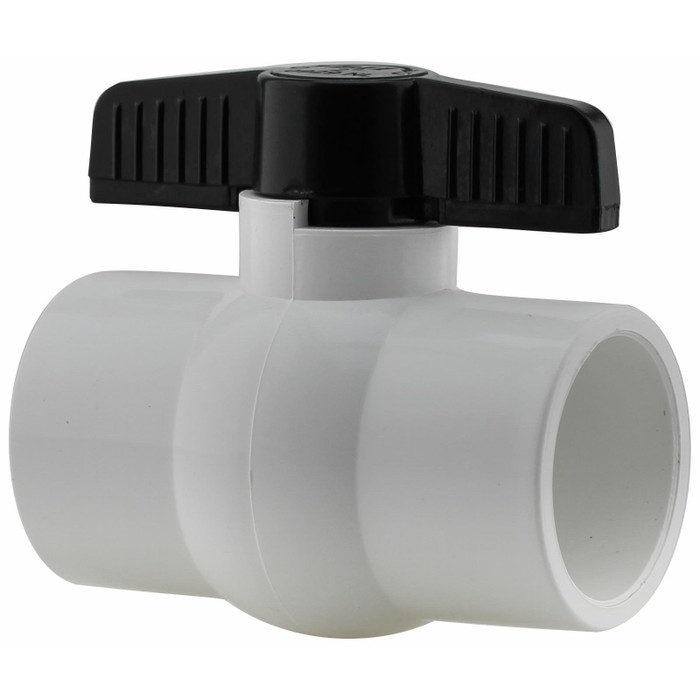

The Boshart 0929S is a slip-connection PVC ball valve built for rough-in and behind-the-wall plumbing applications where a reliable, full-flow shutoff is needed on PVC pipe runs. This family-scoped valve is available in sizes ranging from 1/2" through 4" (including 1/2", 3/4", 1", 1-1/2", 2", 3", and 4"), giving contractors a consistent shutoff solution across most PVC pipe diameters used in water supply, pool, and irrigation systems. Every size in the 0929S lineup shares the same construction: a PVC body, an EPDM seat for internal sealing, and an EPDM stem O-ring to help prevent leakage around the handle shaft. PVC ball valves like the 0929S are valued by plumbers and contractors for their corrosion resistance and straightforward solvent-weld slip installation into existing or new PVC piping, without the need for additional threaded adapters. As part of Boshart's broader ball valve lineup, this model rounds out a family that also includes the 0922CTS series, which is specifically designed for hot water applications - so contractors can match the correct valve to the correct service line on the job.

Key Features

  • Size Range: Available from 1/2" through 4" (1/2", 3/4", 1", 1-1/2", 2", 3", 4") to cover common PVC pipe diameters on a single job or across multiple projects.
  • Connection Type: Slip (solvent-weld) ends for direct installation into PVC pipe runs without additional threaded adapters.
  • Body Material: PVC construction resists corrosion in water supply, pool, and irrigation environments where metal valves may degrade over time.
  • Seat Material: EPDM seat provides the internal sealing surface for the ball, supporting a tight shutoff when the valve is closed.
  • Stem Seal: EPDM stem O-ring seals the valve stem to help prevent leakage around the handle shaft during operation.
  • Valve Type: Full-port style ball valve mechanism for on/off control of water flow in PVC piping systems.
  • Application Range: Suited to water supply lines, swimming pool plumbing, and irrigation piping where a slip-fit PVC shutoff valve is required in any of the available sizes.

Technical Specifications

  • Country of Origin: China
  • Prop 65 Warning: No
  • Packaging: 36 ea per case

Typical Applications

  • Residential and Commercial Water Supply Shutoff
  • Swimming Pool Plumbing Systems
  • Irrigation and Sprinkler System Piping
  • New Construction and Renovation PVC Rough-In
  • General Purpose PVC Pipe Isolation Valving Across Multiple Pipe Sizes

Why Boshart?

Boshart builds its PVC ball valve line, including the 0929S across its full 1/2" through 4" size range, around materials chosen for the demands of water supply, pool, and irrigation service - PVC bodies for corrosion resistance and EPDM components for the seat and stem seal. For jobs that call for hot water compatibility instead, Boshart offers the companion 0922CTS series, giving contractors a straightforward way to select the right valve for cold or hot water lines from the same trusted product family. Stock the 0929S in the sizes your rough-in jobs require for dependable, code-appropriate PVC shutoff.

Manufacturer Resources

Product Specs

Prop 65 Warning:
No
list_batch:
BOS-20260923
Product Type:
Ball Valve
Connection Type:
Slip
Department:
Plumbing
Product Subgroup:
Fittings and Valves
Product Material:
PVC
Product Group:
Fitting

Boshart 0929S-05 – Frequently Asked Questions

1) Do the Boshart 0929S ball valve ends solvent weld, or are they threaded?
Slip ends, meaning they solvent weld straight onto PVC pipe. No threaded adapters or male adapters needed on either side, so you glue it into the run the same way you would a coupling. If your piping is threaded, this is the wrong connection style for you.
2) What ball valve should I use instead if my rough-in is copper or PEX, not PVC?
The 0929S will not help you there, since it only solvent welds to PVC. For a copper or PEX rough-in shutoff, the SharkBite SBBV54 ball valve is the push-connect alternative ZenSupply carries for that use.
3) Which ball valve should I use if the shutoff is on a hot water line rather than a cold PVC run?
The Boshart 0929S is built for water supply, pool, and irrigation service with a PVC body, EPDM seat, and EPDM stem O-ring. Boshart's companion 0922CTS series is the one designated for hot water applications, so on a hot line that is the valve to select from the same family rather than the 0929S.
4) Is a PVC slip ball valve the right choice for an in-ground irrigation zone shutoff?
Yes, that is one of its intended uses. The PVC body resists corrosion in buried and wet pool or irrigation environments where a metal valve body would degrade, and because the ends are slip it goes into the lateral without adapters. The tradeoff is that once it is glued in, replacing it means cutting the pipe, so leave enough straight pipe on each side for a repair coupling.
5) What are the seals made of in the Boshart 0929S valve?
EPDM throughout the sealing points: an EPDM seat as the ball's sealing surface and an EPDM O-ring on the stem to keep water from weeping up around the handle shaft. EPDM suits cold potable water, pool and irrigation duty, which is why the hot water version is a separate series.
6) Is this PVC valve a full port valve?
Yes, the 0929S uses a full-port style ball for on/off control, so the bore is not choked down relative to the pipe. That matters on irrigation mains and pool returns where you do not want to lose pressure at the shutoff.
7) Can the SharkBite SBBV54 be used in place of a slip PVC ball valve on a PVC irrigation line?
The SharkBite SBBV54 is a ball valve intended for rough-in shutoff applications, so the valve function is the same on/off service. The Boshart 0929S differs in how it lands in the line: it is a PVC-bodied valve with slip ends that is solvent-welded into PVC pipe, which is how irrigation and pool PVC runs are normally assembled. Confirm the SBBV54's end connection suits the pipe you are tying into before substituting on a solvent-welded PVC run.
8) Is there a larger-diameter alternative if my run is 3 inch or 4 inch PVC?
You do not need a different model for that. The Boshart 0929S slip PVC ball valve runs through 3 inch (0929S-30) and 4 inch (0929S-40), so the same valve family covers small branch lines at 1/2 inch and main isolation points at 3 and 4 inch with identical PVC body and EPDM seat construction.
9) How many Boshart 0929S valves come in a case?
36 each per case, which is useful if you are stocking a truck or a service shop with one size for repeat rough-in work.
10) Does the Boshart 0929S carry a Prop 65 warning?
No Prop 65 warning applies to the 0929S. It is made in China.
