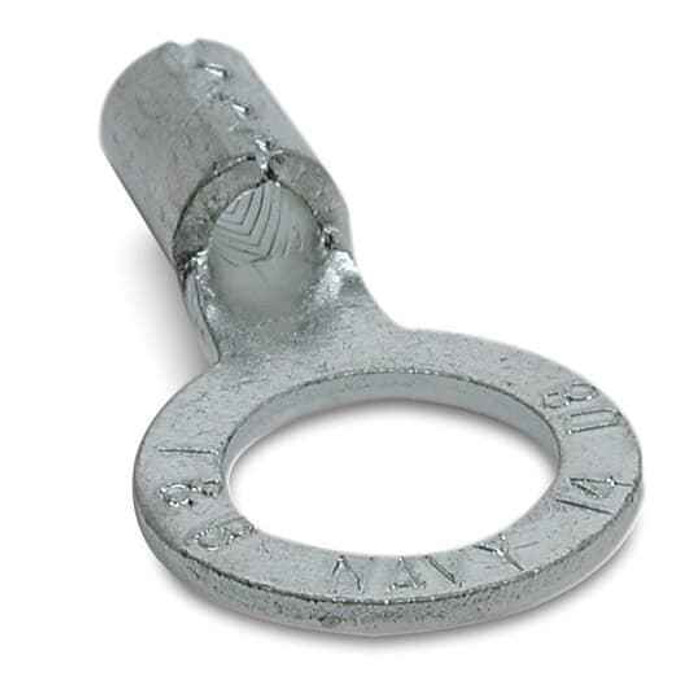

BRZD SEAM RNG TERM No8 AWG No10 BLT
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 8 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon D26 – Frequently Asked Questions
1) Is the Sta-Kon D26 insulated or does it need separate insulation?
It is a non-insulated ring terminal, bare copper with a brazed seam barrel. There is no nylon or vinyl sleeve, so where the connection needs covering you add heat shrink or tape yourself. The upside is that bare terminals take higher temperatures and let you inspect the crimp.
2) Why choose a ring terminal instead of a fork or spade terminal for an 8 AWG lead?
A ring tongue is closed, so the terminal cannot slip off the stud if the nut backs off. On vibrating equipment, motor terminal boxes and panel grounds that matters. A fork tongue installs faster under an already mounted screw but can walk out. The D26 gives you the closed ring in a No. 10 bolt size for 8 AWG wire.
3) Is the Sta-Kon D26 copper terminal suitable for grounding and bonding on an aluminum conductor?
No. The D26 is a copper terminal, so it is intended for copper conductors. For aluminum or copper-clad aluminum you need a terminal listed AL/CU with the appropriate inhibitor compound, not this one.
4) What is a brazed seam barrel and does it change how I crimp the terminal?
The barrel on the D26 is brazed along the seam rather than left as a butted rolled joint, so it resists splitting open when the crimp die compresses it on heavy 8 AWG copper. You still crimp it with the die nest matched to 8 AWG; the brazed seam just keeps the barrel from unrolling under that force.
5) Is the Sta-Kon D26 made in the USA for a project with domestic sourcing requirements?
Country of origin on the D26 is the United States, which is what institutional and government buyers working to domestic content language usually need to confirm.
6) What part number do I order for the Sta-Kon 8 AWG, No. 10 stud bare ring terminal?
Order Sta-Kon model D26. That is the manufacturer part number, and it is the single configuration, bare copper, brazed seam, 8 AWG barrel, No. 10 bolt tongue.
