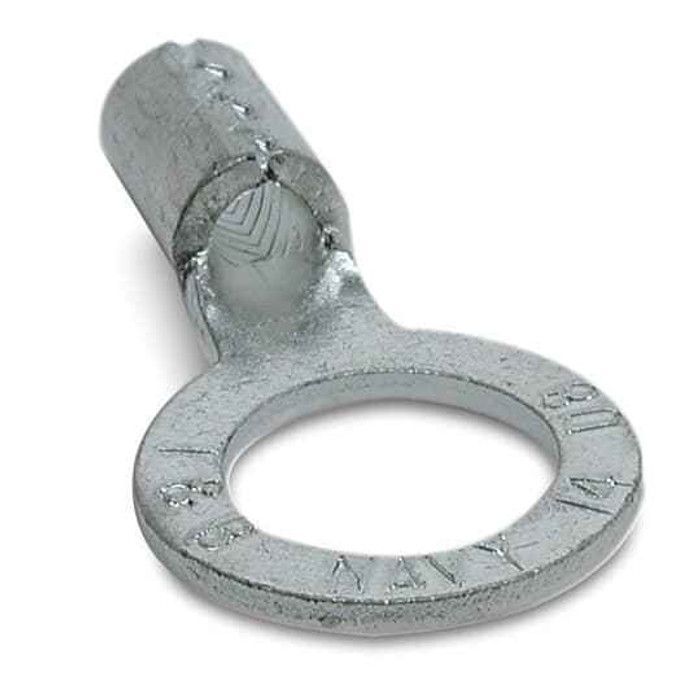

NONINS BS RNG TERM No6 AWG No10 BLT
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 6 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon E26 – Frequently Asked Questions
1) What wire size and stud size does the Sta-Kon E26 ring terminal take?
The E26 is sized for 6 AWG conductor and a No. 10 stud or bolt, so the barrel crimps onto 6 AWG copper wire and the ring slips over a #10 screw or terminal stud. If your conductor is a different gauge, use the matching Sta-Kon part instead of forcing it, a crimp outside the terminal's gauge range will not hold mechanically or electrically.
2) Is the E26 ring terminal insulated, and does it need a sleeve or boot?
It is a non-insulated ring terminal, bare copper barrel with no plastic or nylon insulation. That is fine inside an enclosure or panel where the connection is protected, but if the terminal sits where it could be touched or shorted, add heat shrink or an insulating sleeve over the barrel after crimping.
3) What is the voltage rating on the Sta-Kon E26 terminal?
Rated 600 V, which covers standard commercial and industrial line voltage work, 120/208, 277/480 panel and motor connections included. It also carries a UL file reference of E9809.
4) Is the E26 ring terminal copper or aluminum, and can I use it on aluminum conductors?
The E26 barrel is copper. Copper terminals are intended for copper conductors, terminating aluminum wire calls for a connector rated AL/CU or AL9CU, so use a dual-rated lug for aluminum feeders rather than this terminal.
5) Should I use a ring terminal or a fork terminal for a #10 stud connection?
A ring terminal like the E26 is the closed-barrel style, the stud has to come all the way out to install or remove it, but it cannot vibrate off the screw. A fork or spade terminal slides in from the side and is faster to service. For motor leads, grounding points, bus studs and anything subject to vibration, the ring is the one to specify.
6) Do I need a special crimper for the Sta-Kon E26 6 AWG terminal?
Yes. A 6 AWG non-insulated copper barrel is well past what a hand-squeeze insulated-terminal plier will do, it needs a heavy-duty ratcheting or hydraulic crimp tool with a die matched to 6 AWG non-insulated terminals. No crimp tool is supplied with the terminal, order it separately.
7) Is the Sta-Kon E26 made in the USA?
Country of origin is the United States, which matters if you are buying against a Buy American or domestic-preference clause on a government, healthcare or education project.
8) How do I identify the exact part to reorder for a 6 AWG ring terminal with a #10 hole?
Order by Sta-Kon part number E26. That is the manufacturer part number for the non-insulated 6 AWG ring terminal with a No. 10 bolt hole, and it is the number to put on a PO or hand to a counter for a repeat buy.
