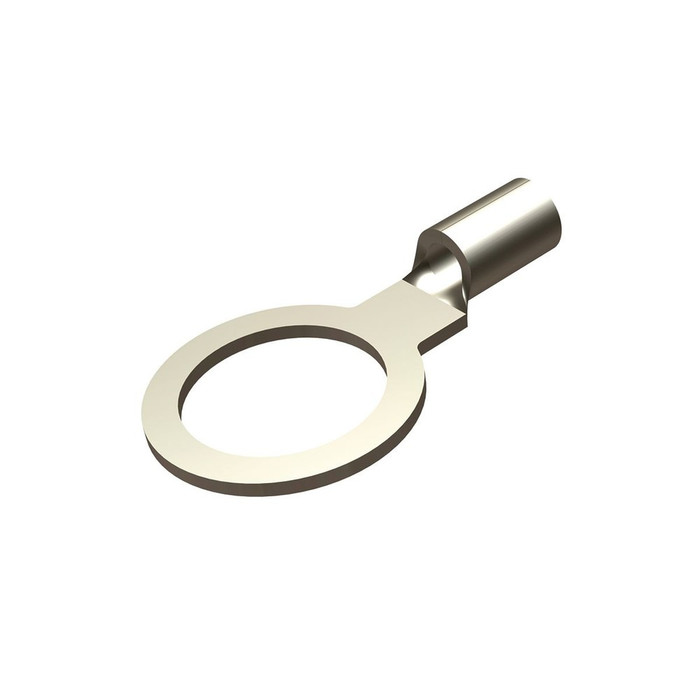

Burndy T1012 Uninsulated Copper Ring Terminal, 12-10 AWG, 1/2" Stud, 100-Pack

The Burndy T1012 is an uninsulated ring terminal engineered for 12-10 AWG wire with a 1/2" stud mounting hole, part of Burndy's HYDENT™ line of copper terminals. Constructed from solid copper with a tin-plated finish and a brazed seam, this terminal delivers a secure, low-resistance, corrosion-resistant connection point for demanding commercial and industrial electrical work. The brazed-seam barrel construction resists separation under mechanical stress, while the tin plating helps protect the copper base from oxidation in the field. Whether used for equipment grounding, motor lead terminations, or panel wiring, the T1012 provides a dependable mechanical and electrical connection when properly crimped with the correct tooling and die. Sold in a convenient 100-pack, the T1012 gives electricians, panel builders, and maintenance crews a ready supply of dependable ring terminals for wiring, grounding, and termination projects.

Key Features

  • Stud Size: 1/2" stud opening accommodates standard mounting hardware for a secure, vibration-resistant connection.
  • Wire Range: Rated for 12-10 AWG conductors, offering flexibility across common branch-circuit and control wiring sizes.
  • Copper Construction: Solid copper body delivers excellent electrical conductivity and long-term mechanical strength.
  • Brazed Seam Barrel: Brazed-seam construction provides a strong, low-resistance crimp connection that resists barrel separation under stress.
  • Tin-Plated Finish: Tin plating helps resist corrosion and oxidation, extending terminal service life in the field.
  • Uninsulated Design: Bare terminal design suits applications where heat-shrink tubing or separate insulation is applied by the installer.
  • Application Versatility: Suitable for grounding, motor lead, and general branch-circuit terminations wherever a 1/2" stud connection is required.
  • HYDENT™ Series: Part of Burndy's HYDENT™ ring terminal line, engineered for consistent crimp performance.
  • Pack Quantity: Supplied 100 per pack, keeping trucks and job boxes stocked for high-volume termination work.

Technical Specifications

  • Pack size (unit): 100
  • Trade Name: HYDENT™
  • Material: Copper

Typical Applications

  • Panelboard and Load Center Wiring
  • Grounding and Bonding Connections
  • Industrial and Commercial Electrical Installations
  • Terminal Block and Stud-Mounted Connections
  • Renovation and New Construction Wiring

Why Burndy?

Burndy's T1012 ring terminal combines solid copper construction with a brazed-seam barrel and tin-plated finish to deliver a dependable, code-compliant connection point for professional electrical work. Backed by the HYDENT™ product line, this terminal is engineered for consistent, low-resistance performance across demanding wiring, grounding, and termination applications where reliable connections are critical, making it a practical choice for electrical contractors who need bulk quantities of a trusted, well-constructed ring terminal on hand for daily use.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260916
Pack size (unit):
100
Product Type:
Ring Terminal
Trade Name:
HYDENT™
Connector Type:
Ring Terminal
Product Material:
Copper
Product Size:
1/2"
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Group:
Wire Connectors & Terminals
Industry Standard(s):
UL467
Length (in):
1.21
ROHS Compatible:
Compliant
Ul Recognized:
N
Plated (Yes or No):
Y
Copper Stranded (Range):
12 AWG-10 AWG
CSA Certified:
N
UL Listed:
N
Type of Plating:
Tin - Electro Plated
CULUS:
N
Pad Width (in):
0.69

Burndy T1012 – Frequently Asked Questions

1) Will the Burndy T1012 ring terminal fit 10 AWG stranded wire?
Yes. The T1012 barrel is sized for 12-10 AWG conductors, so both 12 and 10 AWG fall in range. It is a crimp terminal, so you need the matching Burndy crimp tool and die for a proper compression on the brazed-seam barrel.
2) Is the T1012 insulated, or do I have to insulate the crimp myself?
It is a bare, uninsulated copper terminal. If the termination needs covering, the installer applies heat shrink or tape after crimping. If you want the insulation built in, choose an insulated ring terminal instead.
3) Can I use the Burndy T1012 on an equipment grounding conductor?
Grounding and bonding is one of its listed uses. Solid copper body with tin plating on a 1/2 inch stud ring makes it a common choice for landing a 12 or 10 AWG equipment ground on a ground bar or enclosure stud. Copper terminal on copper conductor, so no dissimilar-metal issue at the crimp.
4) Is a ring terminal or a fork terminal better for a stud connection that vibrates?
Use the ring. A ring tongue like the T1012 captures the 1/2 inch stud completely, so the conductor cannot back out if the nut loosens. A fork or spade slides off. On motor leads and any equipment that vibrates, that closed tongue is the reason to pick this style.
5) Why tin-plated copper instead of plain copper for terminals in damp or industrial areas?
The tin plating shields the copper base from oxidation, which is what raises resistance at a termination over time. In humid plant rooms, exterior enclosures, and industrial panels that plating is the reason the connection stays low-resistance years after install.
6) How many Burndy T1012 terminals come in a pack?
100 per pack. That is a bulk quantity aimed at panel builders and maintenance crews doing repeat 12-10 AWG terminations rather than a one-off repair, so plan the order around a job's full termination count.
7) What is Burndy HYDENT and does it change how I crimp the terminal?
HYDENT is Burndy's line designation for these copper ring terminals, built around consistent crimp performance with the brazed-seam barrel. It does not change the method: use the correct Burndy tool and die for the terminal and wire size, and do not substitute a generic pliers-style crimper on a bare copper barrel this size.
