B-Line CABLE SUPPORT FITTING, ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,864.19

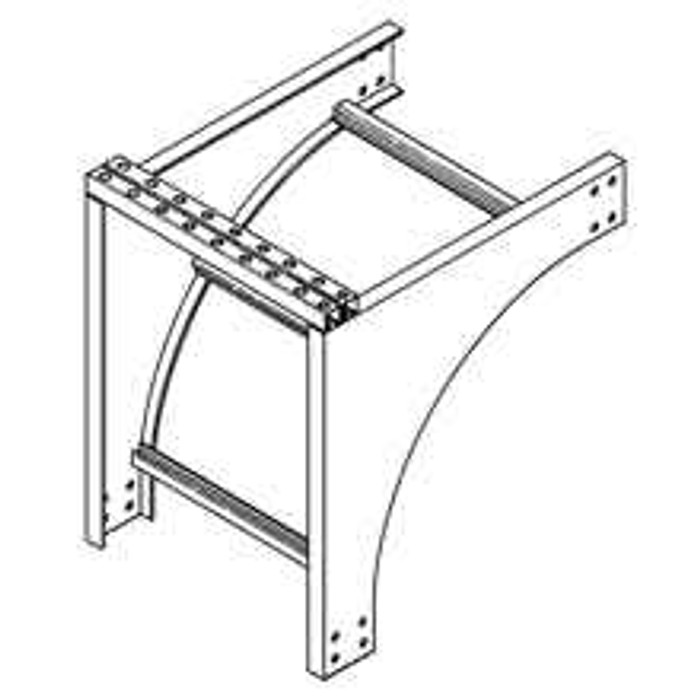

B-Line CABLE SUPPORT FITTING, SERIES 2,3,4&5, 5" / 6" HEIGHT, 24" WIDTH, 36" RADIUS, ALUMINUM

B-Line CABLE SUPPORT FITTING, SERIES 2,3,4&5, 5" / 6" HEIGHT, 24" WIDTH, 36" RADIUS, ALUMINUM

(No reviews yet) Write a Review

Model: 6A-24-CSF36
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,864.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
CABLE SUPPORT FITTING, SERIES 2,3,4&5, 5" NEMA / 6" HEIGHT, 24" WIDTH, 36" RADIUS, ALUMINUM

  • Related Products

    • Non-Metallic Cable Tray Systems (GRP)
    • DataComm Equipment Supports
    • Channel Cable Tray - Metallic
    • Bolted Framing (Strut Systems)
    • Redi-Rail™ Cable Tray System
    • Spring Steel Fasteners (North America)
    • Flextray Wire Basket Tray and Accessories
    • Channel Cable Tray - Non-Metallic (GRP)


6A-24-CSF36 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Department:
Electrical

B-LINE 6A-24-CSF36 – Frequently Asked Questions

1) What size cable tray does the B-Line 6A-24-CSF36 cable support fitting work with?
The 6A-24-CSF36 is built for 24 inch wide tray with a 6 inch loading depth, on a 36 inch radius, and it suits B-Line Series 2, 3, 4 and 5 tray. If your run is a different width or you are working to a tighter radius, you need the matching fitting for that width and radius instead, since the side rail dimensions and the arc are fixed on this one.
2) Can I use the 6A-24-CSF36 with B-Line Flextray wire basket or non-metallic GRP tray?
No. This cable support fitting is made to go with B-Line Series 2, 3, 4 and 5 ladder tray. Flextray wire basket and the non-metallic GRP channel tray are separate systems with their own supports and fittings, so you would need the accessories built for those lines rather than this aluminum fitting.
3) Is this B-Line cable support fitting aluminum or steel?
Aluminum. That matters on two counts: it keeps the weight down for an overhead run on a 24 inch wide tray, and it gives you better corrosion resistance than plain steel in damp or washdown areas. If your specification calls for steel or stainless tray fittings, this part will not meet it.
4) What does the 5 inch NEMA rating on this B-Line fitting mean versus the 6 inch height?
The two numbers describe the same part. The 6 inch figure is the physical side rail height of the fitting, and 5 inch is the NEMA loading depth, which is the usable cable fill depth inside the rails. When you are calculating cable fill for the run, work from the 5 inch NEMA depth, not the 6 inch rail height.
5) What part number do I quote for a 24 inch, 36 inch radius aluminum B-Line cable support fitting?
Order it as B-Line 6A-24-CSF36. That single number carries the whole configuration: 6 inch height / 5 inch NEMA depth, 24 inch tray width, 36 inch radius, aluminum, for Series 2 through 5 tray.
How fast can I get the B-LINE 6A-24-CSF36 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE 6A-24-CSF36 come with a warranty?
Absolutely. The B-LINE 6A-24-CSF36 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the B-LINE 6A-24-CSF36?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
