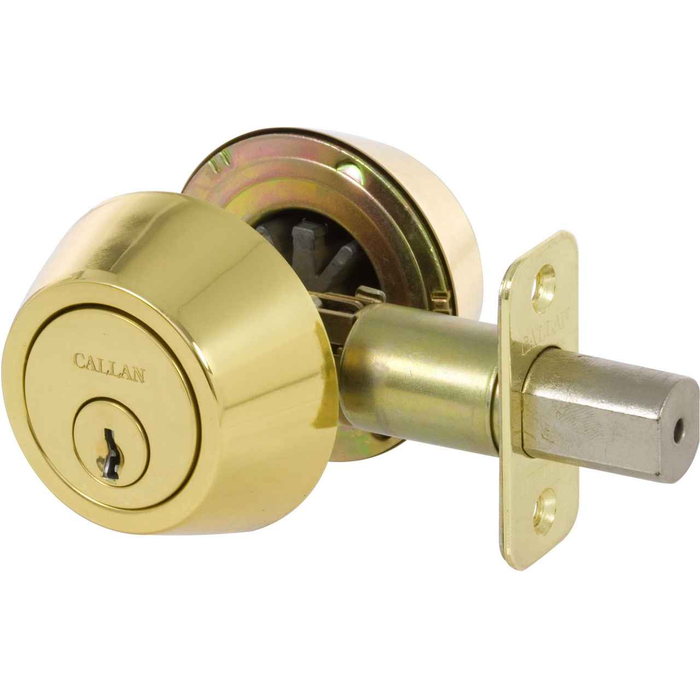

Callan Model 210S - Grade 3 Double Cylinder Deadbolt

Callan Model 210S - Grade 3 Double Cylinder Deadbolt

(No reviews yet) Write a Review

Model: KA2101
$34.00
$28.03
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$34.00
$28.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Callan Model 210S - Grade 3 Double Cylinder Deadbolt

Double Cylinder Function: Double cylinder deadbolts are keyed on both sides of the door and are only locked and unlocked via a key. Often times they are used on doors where glass is near the door that could be easily broken and the thumbturn on a standard single cylinder lock would be accessible. Caution: Double Cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock. Please check local codes before installing.

Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Features:

  • Meets BHMA security grade 3 requirements
  • Made of durable zinc
  • Fully reversible handing for left or right handed applications
  • Designed for an easy one person installation
  • Comes standard with a round corner latch faceplate and 1" throw
  • Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Diameter: 2-1/2"
  • Projection: 15/16"
  • Latch Faceplate: Round Corner
  • Cylinder: 5 Pin KW1
  • Concealed Screws: No
  • Material: Zinc

Technical Specification Download

Manufacturer Resources

Product Specs

Subcategory:
Deadbolts
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Function:
Double Cylinder
Product Type:
Deadbolts
Grade:
Grade 3
Product Attribute:
Deadbolts
Product Model:
210S
Product Function:
Double Cylinder
Product Category:
Mechanical Locks
Department:
Door Hardware

Callan KA2101 – Frequently Asked Questions

1) Should I put a double cylinder deadbolt on an exit door, or do I need a single cylinder?
On any door used for egress, use a single cylinder with a thumbturn instead. The Callan 210S is keyed on both sides and needs a key to unlock from the inside, which is a life safety hazard in an emergency and is not recommended on residences or egress doors. Where you do want key-both-sides, it is usually because there is glass beside the door that could be broken to reach a thumbturn. Check local code before you install either way. If you need the thumbturn version for that opening, the Cal-Royal ED500 is another Grade 3 deadbolt with an adjustable backset and the same 1-3/8 to 1-3/4 inch door range.
2) Will a Callan 210S deadbolt latch into the strike already in my frame?
The 210S throws a 1 inch bolt with a round corner latch faceplate, so it wants a strike with a pocket deep enough for a full 1 inch projection. Round corner faceplate is the common residential prep; if your existing latch face is square corner, the mortise in the door edge will need to be squared or the faceplate swapped. Bolt projection at the face is 15/16 inch and the outside trim diameter is 2-1/2 inch, which covers the usual 2-1/8 inch bore cleanly.
3) Can I get Callan 210S deadbolts keyed alike across a building, and what keyway do they take?
Keying is chosen on the order. You pick keyed different or keyed alike, and the keyway is either KW1 5-pin or SC1 5-pin. The cylinder is a 5 pin, standard KW1 as it ships. If your buildings are already on Schlage-style keys, order SC1 so the new bolts fall into the existing key system rather than adding a second key to the ring.
4) Is a Grade 3 deadbolt like the Callan 210S enough for a commercial entrance?
For a commercial entrance, no. The 210S meets BHMA security grade 3 and is a residential-duty zinc deadbolt. For heavier traffic or a commercial spec, step up: the Design Hardware D1 Series is a Grade 1 double cylinder deadbolt rated extra heavy duty for 1-3/4 inch doors, and the Dexter DB1000 Series double cylinder is Grade 1 across 1-3/8 to 1-7/8 inch doors. The 210S is right for apartments, rentals, and residential doors where Grade 3 is the spec.
5) What is the closest equivalent to the Callan 210S double cylinder deadbolt from another brand at the same grade?
The Deltana 7312KA2 is the nearest match. It is a Grade 3 double cylinder deadbolt like the Callan 210S, which is a Grade 3 double cylinder unit with a 1-3/8 inch to 1-3/4 inch door thickness range. The Deltana covers a wider 1-3/8 inch to 2 inch door thickness range, so it will suit thicker doors as well as the standard ones the Callan fits.
6) Which double cylinder deadbolt should I use instead of the Callan 210S on a commercial opening that calls for Grade 1?
The Design Hardware D1 Series double cylinder deadbolt is a Grade 1, extra heavy duty double cylinder lock for 1-3/4 inch doors. The Callan 210S is a Grade 3 double cylinder unit for 1-3/8 inch to 1-3/4 inch doors and is a residential product, so on an opening specified Grade 1 the D1 Series is the one that meets the drawing. Note the D1 is built for 1-3/4 inch door thickness only, so confirm the leaf before ordering.
7) Local code will not allow a key-both-sides deadbolt on my egress door. What single cylinder deadbolt takes the place of the Callan 210S?
For a thumbturn on the inside at the same grade, the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset for 1-3/8 inch to 1-3/4 inch doors, matching the Callan 210S door thickness range and its adjustable 2-3/8 inch or 2-3/4 inch backset. The Cal-Royal LSD is also Grade 3 cylinder x thumbturn over the same door range and carries an ADA ergonomic thumbturn, which matters where the facility is working to accessibility requirements.
8) I need a deadbolt keyed to Schlage instead of the Callan 210S KW1. What are my options?
The Hager 3214 is a double cylinder deadbolt with a Schlage C keyway, Grade 2, for 1-3/8 inch to 1-3/4 inch doors and fire rated. The Callan 210S ships with a 5 pin KW1 cylinder and can also be ordered with an SC1 5-pin keyway, so if the building is keyed Schlage you can either take the 210S in SC1 or move to the Hager 3214 where a fire rating is also required.
9) Which deadbolt do I use instead of the Callan 210S if the door needs a fire rating?
The Hager 3215 is a single cylinder deadbolt with a 1 inch throw, Grade 2, fire rated, for 1-3/8 inch to 1-3/4 inch doors, and the Hager 3214 is the double cylinder equivalent, also fire rated over the same door range. Both match the 1 inch throw of the Callan 210S. The Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch where the opening calls for a heavier lock.
10) What double cylinder deadbolt fits a door thicker than 1-3/4 inches?
The Callan 210S is built for 1-3/8 inch to 1-3/4 inch doors. For thicker leaves, the Deltana 7312KA2 is a Grade 3 double cylinder deadbolt rated 1-3/8 inch to 2 inch, and the Dexter DB1000 Series double cylinder is Grade 1 over 1-3/8 inch to 1-7/8 inch. Measure the leaf at the edge bore before choosing.
11) Which deadbolt takes an interchangeable core instead of the fixed cylinder in the Callan 210S?
The Callan 210S uses a fixed 5 pin cylinder in KW1 or SC1. For small format interchangeable core, the Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep supplied less core, for 1-3/8 inch to 1-3/4 inch doors, the same door range. The Deltana CL200LAIC is a Grade 2 single deadbolt with an interchangeable core and a 2-3/4 inch backset. Both are single cylinder, so they change the inside function as well as the keying platform.
12) Do I have to order the Callan 210S handed for a left or right hand door?
No handing to specify. The 210S is fully reversible for left or right hand openings, so one part number covers both and there is nothing to get wrong on a mixed order. It is also built for one person to install.
13) What is the difference between the Callan 210S and a Deltana 7312KA2 double cylinder deadbolt?
Both are Grade 3 double cylinder deadbolts. The difference is door range: the Callan 210S covers 1-3/8 to 1-3/4 inch doors, while the Deltana 7312KA2 goes 1-3/8 inch up to 2 inches, so a thick or built-up door that the 210S cannot reach is the case for the Deltana. Another double cylinder option is the Delaney LU Series, which is Grade 2.
14) Can I use the Callan 210S on a door with glass sidelights or a glass panel?
That is the case it is built for. Because both sides are keyed, there is no thumbturn to reach through broken glass, which is why double cylinder bolts get specified near glazing. The trade-off is that anyone inside needs a key to get out, so it should not go on a door people egress through, and local code governs. The rest of the fit is standard: 2-1/8 inch cross bore, adjustable 2-3/8 or 2-3/4 backset, 1-3/8 to 1-3/4 inch doors.
15) What is the difference between the Callan 210S and the Baldwin Reserve Double Cylinder Contemporary Round deadbolt?
Both are double cylinder function. The Callan 210S is a Grade 3 zinc deadbolt with a 2-1/2 inch diameter round rose, 15/16 inch projection, adjustable 2-3/8 inch or 2-3/4 inch backset and reversible handing, offered in five finishes including US15 Satin Nickel and US3 Polished Brass. The Baldwin Reserve unit is a contemporary round double cylinder deadbolt from a decorative line, and Baldwin also builds the same trim as a square rose in the Reserve Contemporary Square deadbolt. Choose by which rose shape and family the rest of the door hardware is in.
16) Will the Baldwin 8BR0618001 deadbolt spacer work as a substitute for the Callan 210S?
No. The Baldwin Reserve 8BR0618001 is a deadbolt spacer, a trim component, not a working lock. The Callan 210S is a complete double cylinder deadbolt with a 5 pin cylinder, 1 inch throw and round corner latch faceplate, bored 2-1/8 inch cross bore and 1 inch edge bore. Similarly the BEST 8T is a tubular deadbolt tube component from the T Series rather than a finished lock. Order those only when you are completing an existing assembly.
17) Is the Arrow E60 exit deadlock the same thing as the Callan 210S?
No. The Arrow E60 is a Grade 2 non-keyed exit deadlock, blank plate on the outside and thumbturn on the inside, for 1-3/8 inch to 1-3/4 inch doors, so there is no key access from outside at all. The Callan 210S is keyed on both sides, which means a key is required from either face. Same door thickness range, opposite security intent: the E60 is for an exit-only leaf, the 210S for a glass-adjacent door where you do not want a reachable thumbturn.
18) Can I use a Corbin Russwin DL3011 deadlock in place of the Callan 210S on a 1-3/4 inch commercial door?
They are not interchangeable in function. The Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock, cylinder by blank plate, for 1-3/4 inch to 2-1/4 inch doors, so the inside face has no operating trim at all. The Callan 210S is keyed on both sides over a 1-3/8 inch to 1-3/4 inch door range. If you want key-both-sides in a Grade 1 cylindrical, the Design Hardware D1 Series is Grade 1 double cylinder for 1-3/4 inch doors.
19) Instead of rekeying a mechanical deadbolt like the Callan 210S across a building, is there a keypad or credential option?
Yes. The Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, and the Codelocks CL2200 is a medium duty electronic surface deadbolt in a brushed steel finish. For multihousing credential systems, the Dormakaba Nova-D is an RFID smart electronic deadbolt. Any of these removes the key-both-sides operation of the 210S, so check egress code for the opening before switching function.
20) For an apartment door that also needs a latch for the knob, does a deadbolt like the Callan 210S cover it?
No. The Callan 210S is a deadbolt only, with a 2-1/8 inch cross bore and 1 inch edge bore, and provides no latching function. The Falcon H2101 is a Grade 2 entrance interconnected lock that combines the latch and a single cylinder deadbolt in one assembly, which is the usual choice on a multi-family entry where you want one throw to retract both.
21) Is a mortise deadbolt an alternative to the Callan 210S on an existing bored door?
Not without new door prep. The Callan 210S drops into a standard bored opening: 2-1/8 inch cross bore, 1 inch edge bore, adjustable 2-3/8 inch or 2-3/4 inch backset. The Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch, square and round respectively, and the Dormakaba D900 is a small case mortise deadbolt in SC keyways keyed different. Those need a mortise pocket cut into the door edge, so they suit new doors or doors already mortise prepped.
22) What finishes does the Callan 210S deadbolt come in for matching existing door hardware?
Five finishes: US15 Satin Nickel, US3 Polished Brass, US19 Black, US10BE Edged Bronze, and US15A Antique Nickel. That covers the common residential trim families, so matching a run of units usually comes down to picking the US number already on the doors rather than eyeballing the color.
23) Are the mounting screws on the Callan 210S hidden or exposed?
Exposed. The 210S does not use concealed screws, so the interior rose shows its fasteners. If a flush, fastener-free face matters on the job, that is a different trim design, not an option on this bolt.
24) What double cylinder deadbolt is available in a decorative brass finish rather than the Callan 210S zinc body?
The Emtek 8323 Modern Disc deadbolt is a brass double cylinder deadbolt, and the Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt from the Estate Series. The Callan 210S is made of zinc with a 2-1/2 inch diameter rose and is offered in finishes including US10BE Edged Bronze and US15A Antique Nickel. Match on the finish family already on the other doors.
25) I need a single cylinder deadbolt with a 4 way adjustable backset rather than the two-position backset on the Callan 210S. What is available?
The Brinks Raleigh Series transitional round deadbolt and the Brinks Mendocino Series contemporary square deadbolt are both single cylinder units with a 4 way adjustable backset. The Callan 210S adjusts between 2-3/8 inch and 2-3/4 inch. Both Brinks options are cylinder by thumbturn, so the inside face operates without a key.
