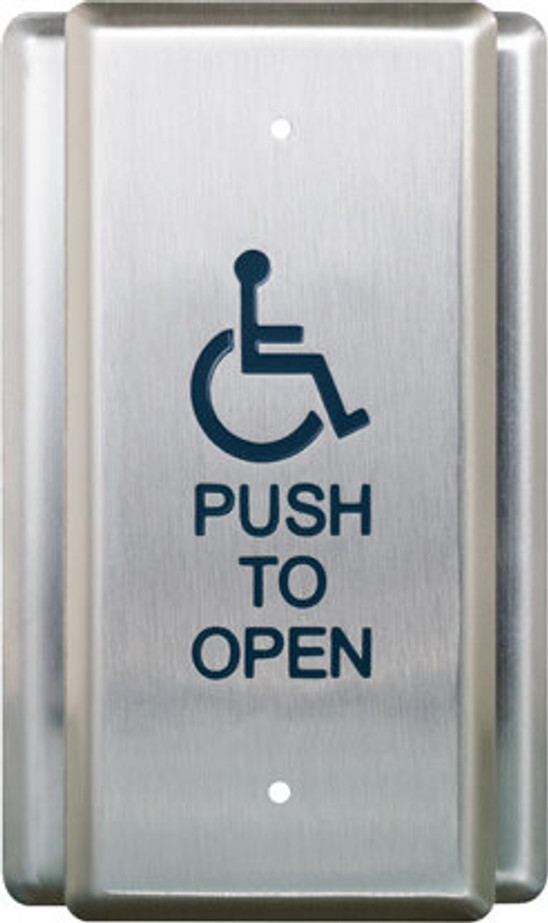

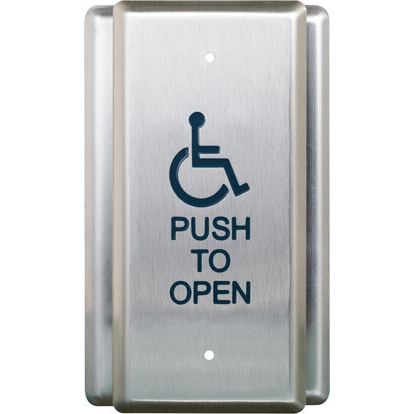

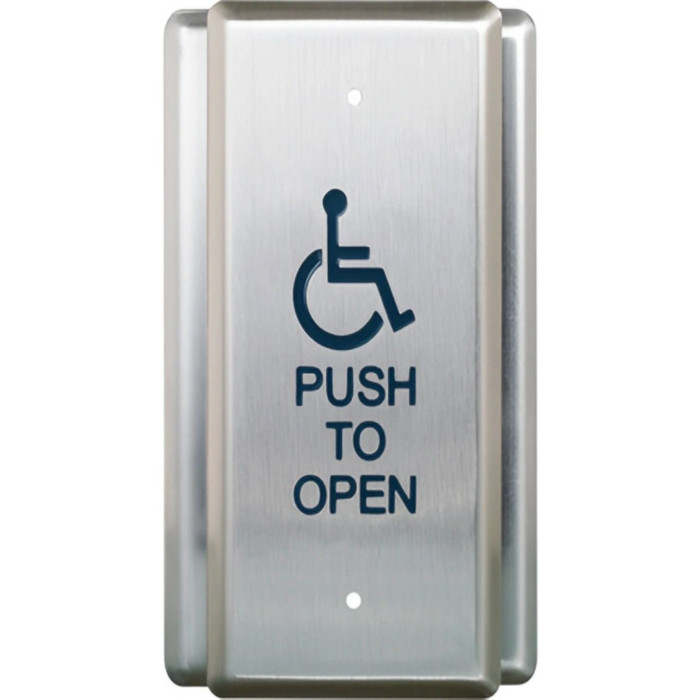

Camden CM-35 Series OBC Compliant Narrow Push Plate Switch, Handicap Symbol/Push To Open

Camden CM-35 Series OBC Compliant Narrow Push Plate Switch, Handicap Symbol/Push To Open

(No reviews yet) Write a Review

Model: CM-35/4
Selected Faceplate Graphic Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$75.00
$67.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CM-35 Series OBC Compliant Narrow Push Plate Switch, Handicap Symbol/Push To Open

CM-25, CM-26CB, CM-35 and CM-35N Series all-active switches are heavy-duty, ADA-compliant door controls. CM-25 (1-5/8" x 4-1/2") and CM-26CB/CM-35 series (2" x 4-1/2") rectangular faceplates are stainless steel, aluminum or solid brass. The CM-25 is designed to mount directly on a metal door frame or narrow surface box. The CM-35 and CM-35N Series meets new OBC requirements for activation plate size and is designed for mounting on a single gang box.

Note: CM-35 and CM-25 Series push plate switches are not available with optional DPDT contact.

Architectural Finishes:
CM-25 Series switches with architectural finish
only available with /1, /2, /3, /4 graphic options

Contact Type: N/O SPST
Switch Type: Momentary
Contact Rating: 3 A @ 30 VDC
Temp Range: -40°F to 140°F (-40°C to +60°C)
Std. Finish: US32 / C32D
Dimensions:
CM-25,CM-26CB: 4-3/16" x 1-3/4" x 1-3/16"
(113mm x 44mm x 30mm)

Manufacturer Resources

DOWNLOAD

Product Specs

Subcategory:
Switches/Push Buttons
Warranty:
3 Year Limited
Wireless Communication:
No
Commercial/Residential:
Commercial
Product Type:
Push Plate
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Switches/Push Buttons
Product Finish:
Stainless Steel
Product Dimension:
4-1/2" x 2"
Product Category:
Electronic Access Control
Department:
Door Hardware

Camden Door Controls CM-35/4 – Frequently Asked Questions

1) What size box does the Camden CM-35 push plate switch mount to?
The CM-35 mounts on a single gang box. Its faceplate measures 4-1/2 by 2 inches, which is the size that meets OBC requirements for activation plate dimensions. If you are mounting directly to a metal door frame or a narrow surface box instead, the CM-25 is the one built for that, with a 1-5/8 by 4-1/2 inch plate.
2) Can I wire the Camden CM-35 push plate into a 24VDC automatic door operator?
The switch is a normally open SPST momentary contact rated 3 A at 30 VDC, so it handles a low voltage DC activation input like a door operator's push button terminals. It is a dry contact closure only, not a powered device. One thing to know up front: the CM-35 Series is not offered with the optional DPDT contact, so if your sequence needs a second isolated set of contacts you will need a different Camden series.
3) Do I need the jamb mount back plate option with the Camden CM-35 handicap push plate?
That's an ordering choice. The CM-35 with the wheelchair symbol and Push to Open text comes either with or without the jamb mount back plate. Take the back plate version when you are fixing the switch to a door jamb or narrow mounting surface; skip it when you are landing it on a single gang box in the wall or a bollard.
4) Is the whole Camden CM-35 plate the button, or just a small area in the middle?
It is an all-active switch, meaning the entire faceplate acts as the button. A user can strike anywhere on the 4-1/2 by 2 inch plate with a hand, elbow, or wheelchair arm and the momentary contact will make. That is the behavior ADA-style barrier free openings expect.
5) Is the Camden CM-35 push plate rated for outdoor use in cold climates?
Operating range is -40F to 140F (-40C to +60C), so the cold end covers most exterior Canadian and northern US installs. The standard plate is stainless steel in US32/C32D. Keep in mind the temperature rating is about the switch operating, not a weather seal rating, so pair it with an appropriate exterior mounting box or bollard.
6) What is the difference between the Camden CM-25 and the CM-35 push plate switches?
Plate size and where they mount. The CM-25 is 1-5/8 by 4-1/2 inches and is made to go directly on a metal door frame or a narrow surface box. The CM-35 is 2 by 4-1/2 inches, sized to meet the newer OBC activation plate requirement, and mounts on a single gang box. Electrically they are the same idea, and neither series is offered with the optional DPDT contact.
7) Does the Camden CM-35 push plate need batteries or a wireless receiver?
No. It is a hard-wired switch with no wireless communication and no battery. You run low voltage cable from the plate back to the door operator or access control input, and the switch simply closes the circuit when pressed.
8) Will the Camden CM-35 handicap push plate hold up in a hospital or school entrance?
It is built for commercial duty, described as a heavy-duty door control, with a stainless steel faceplate in US32/C32D that stands up to repeated hand and wheelchair contact. The all-active design means there is no small plunger to wear out in a high traffic barrier free entrance.
