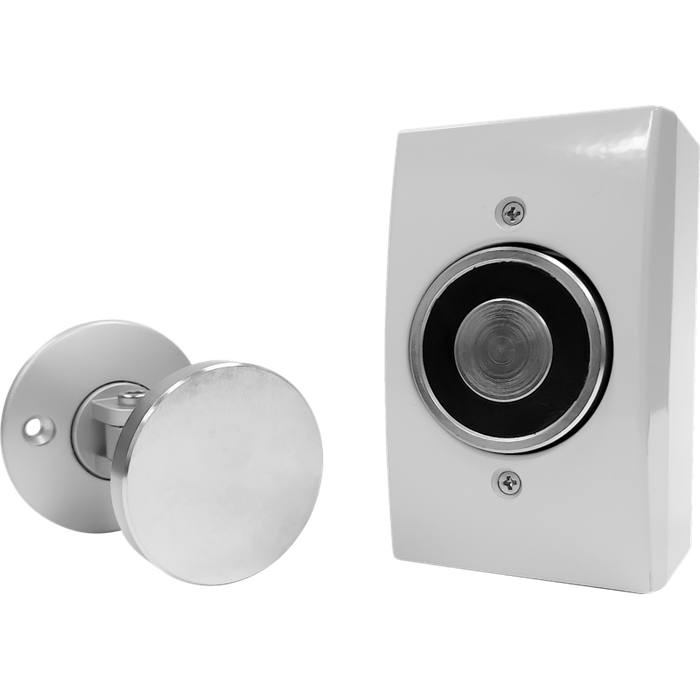

Camden CX-95S-DH Magnetic Door Holder

Camden CX-95S-DH Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, ideal for use in apartment buildings, schools, hotels, hospitals, and offices.

Fail-safe operation, tri-volt coils, and an adjustable armature plate allow for easy and flexible installation. Camden Magnetic Door Holders may be surface or flush mounted (CX-95S-DH), or floor mounted (CX-95S-DH-FL), with all mounting hardware included in the kit. Optional extension bars are also available

  • CX-95S-DH:
    • Multiple voltages: 12/24V, AC/DC, 120 VAC
    • Armature plate adjusts to door alignment
    • Up to 35 lbs (16 kg) holding force
    • Used for door release in public, industrial and commercial applications
    • 3 year warranty

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Control
Product Subgroup:
Electromagnetic Locks
Product Type:
Magnetic Door Holder
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Product Attribute:
Parts and Accessories
Product Category:
Electronic Access Control
Department:
Door Hardware

Camden Door Controls CX-95S-DH – Frequently Asked Questions

1) What is the difference between the CX-95S-DH and the CX-95S-DH-FL floor mount?
Two mounting arrangements are offered. The CX-95S-DH is the surface or flush mounted holder, typically going on the wall behind the door. The CX-95S-DH-FL is the floor mounted version, which is what you use when there is no wall within reach of the door swing, or the wall is glass or otherwise unusable. Both are the same magnetic holder with all mounting hardware included in the kit.
2) What voltage does the Camden CX-95S-DH door holder run on?
Tri-volt coils cover 12/24V AC or DC and 120 VAC, so the same holder drops onto a low voltage fire alarm circuit or onto line voltage. That is what lets one part number cover both the 24V panel-powered installs common in schools and hospitals and the 120 VAC installs already run in older buildings.
3) Will the magnetic door holder release the door when the fire alarm goes off?
Operation is fail-safe, meaning the magnet holds only while it is energized and lets the door go the moment power drops. Wired to a fire alarm circuit, loss of power on alarm releases the door and the closer shuts it. Camden also lists the unit as UL-listed.
4) Is a magnetic door holder or a magnetic lock what I need to hold a corridor door open?
A door holder is the right part here. The Camden CX-95S-DH holds a door in the open position and drops it on power loss so the closer can shut it, which is what you want on corridor, stairwell and lobby doors that must stay open for traffic but close on alarm. A magnetic lock does the opposite job, securing a closed door against entry. If you are trying to control who gets through the door rather than keep it standing open, you are looking at the wrong device.
5) My door does not sit flat against the magnet. Can the Camden door holder be adjusted?
The armature plate on the door adjusts to door alignment, so a leaf that sits slightly out of plane with the wall still makes full contact with the magnet face. That is the usual fix when the holder grabs on one edge only and the door pops loose.
6) What do I need to order besides the Camden CX-95S-DH itself?
All mounting hardware ships in the kit, so nothing extra is required for a standard install. The one add-on to consider is an extension bar, offered as an option, for openings where the gap between the wall or floor unit and the door face is too great for the magnet to meet the armature plate. Measure that gap before ordering.
7) Can the Camden CX-95S-DH be recessed into the wall instead of surface mounted?
Flush mounting is supported on the CX-95S-DH alongside surface mounting, so it can be set into the wall for a cleaner face in a finished lobby or corridor. Pick the floor mounted CX-95S-DH-FL instead where the wall is not in reach of the door swing.
8) Is the Camden CX-95S-DH suitable for apartment buildings and schools?
Apartment buildings, schools, hotels, hospitals and offices are the applications Camden names for this holder, and it is a commercial-rated device rather than a residential one. Repeat traffic openings in public and industrial spaces are where it is meant to go.
