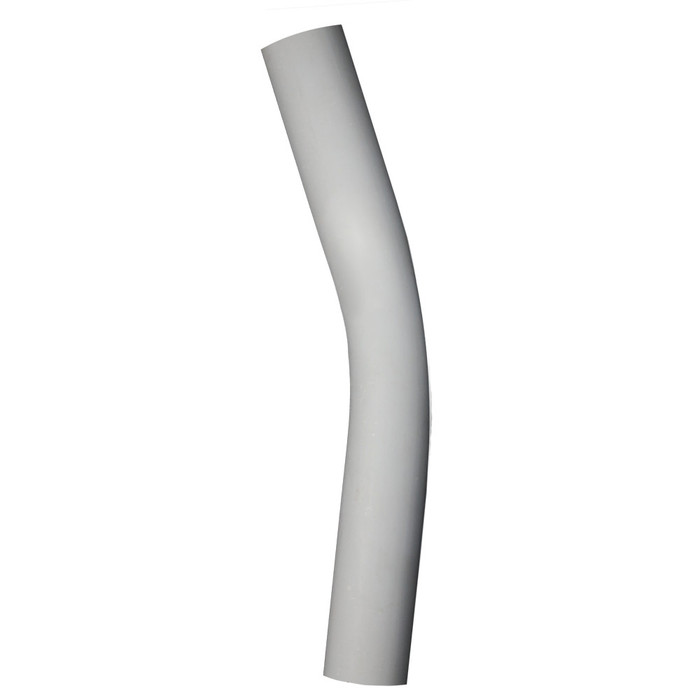

Cantex 5134067 2" Schedule 40 PVC 22-1/2° Elbow
The Cantex 5134067 is a 2" Schedule 40 PVC 22-1/2° bend elbow engineered for non-metallic conduit systems that require a gentle directional change without compromising conduit fill or pull tension. Molded from rigid Schedule 40 PVC and built to UL40 standards, this 22-1/2° bend elbow provides a smooth, low-stress transition point for raceway runs in underground, slab, and above-ground applications. It is designed to mate seamlessly with standard 2" Schedule 40 and Schedule 80 PVC conduit, delivering a corrosion-resistant, non-conductive solution for commercial, industrial, and residential electrical installations.
Key Features
- Trade Size: 2" nominal trade size for direct coupling into standard 2" PVC conduit runs.
- Durable Construction: Rigid Schedule 40 PVC material resists corrosion, rust, and chemical degradation in both wet and dry environments.
- 22-1/2° Bend Angle: Provides a gradual directional change that minimizes stress on conductors during cable pulls compared to sharper bend angles.
- UL40 Rated: Manufactured to UL40 conduit standards for consistent dimensional accuracy and fit with compatible PVC fittings.
- Non-Conductive Material: PVC construction eliminates the need for grounding on the fitting itself, simplifying non-metallic raceway installations.
- Solvent-Weld Compatible: Designed for standard PVC solvent cement joining methods common to Schedule 40 conduit systems.
Certifications & Compliance
- UL40 Listed
Technical Specifications
- Trade Size: 2"
- Angle: 22-1/2°
- Material: Schedule 40 PVC
- Standard: UL40
Typical Applications
- Underground and Slab Conduit Runs
- Commercial and Industrial Electrical Installations
- PVC Conduit and Raceway Systems
- New Construction and Renovation Projects
- Directional Transitions in Non-Metallic Conduit Layouts
Why Cantex?
Cantex PVC conduit fittings are manufactured to UL40 standards, delivering the dimensional consistency and material durability electrical professionals rely on for code-compliant installations. The rigid Schedule 40 PVC construction of the 5134067 22-1/2° elbow offers long-term corrosion resistance and a dependable fit with standard PVC conduit systems, making it a practical choice for both new construction and infrastructure upgrades.
Manufacturer Resources
Product Specs
- list_batch:
- CAN-20260924
- Product Type:
- PVC Elbow
- Angle:
- 22-1/2°
- Listing:
- UL Listed
- Department:
- Electrical
- Product Subgroup:
- PVC Conduit & Fittings
- Product Material:
- PVC
- Product Size:
- 2"
- Product Group:
- Conduit & Raceway
Cantex 5134067 – Frequently Asked Questions
1) Will the Cantex 5134067 elbow fit Schedule 80 PVC conduit, or only Schedule 40?
It mates with both. The 5134067 is a 2 inch Schedule 40 PVC 22-1/2 degree elbow, and the socket ends are sized to take standard 2 inch Schedule 40 and Schedule 80 PVC conduit. Schedule 80 has a thicker wall but the same outside diameter at a given trade size, so it slips into the same socket.
2) How is a 22-1/2 degree PVC elbow joined to the conduit, and do I need anything else to install it?
Solvent weld. The elbow is made for standard PVC solvent cement joining used on Schedule 40 conduit systems, so you need PVC conduit cement (and primer if your spec calls for it) plus the 2 inch conduit itself. No cement is supplied with the fitting, and because the body is PVC there is no bonding or grounding of the fitting required.
3) Is the Cantex 5134067 elbow UL listed for electrical conduit work?
It is UL Listed and built to UL40 conduit standards, which is the standard inspectors look for on rigid nonmetallic conduit fittings. UL40 also governs the dimensional tolerances, so the sockets fit other UL40 PVC conduit and fittings without shimming or forcing.
4) What is the alternative if a 22-1/2 degree bend is too gradual for the conduit route?
The Cantex 5134067 bends 22-1/2 degrees in 2 inch Schedule 40 PVC, which is the gentlest standard change of direction. When the route needs to turn harder in a shorter distance, step to a 45 degree elbow instead - the Thomas & Betts UA7AL-CAR is a Schedule 40 PVC 45 degree plain-end elbow in gray. Note that the UA7AL-CAR is a 3 inch trade size, so it suits 3 inch conduit runs rather than 2 inch.
5) Can this PVC elbow be used underground or in a concrete slab?
Yes. The 5134067 is rated for underground, slab, and above-ground raceway runs. Rigid Schedule 40 PVC resists corrosion, rust, and chemical attack in wet or dry locations, which is why it holds up in direct burial and encased-in-concrete work where a steel fitting would need coating.
6) For a long underground pull, is a 22-1/2 degree elbow better than a 45 degree elbow?
The two serve different geometry. The Cantex 5134067 2 inch Schedule 40 PVC 22-1/2 degree elbow makes a gradual directional change that puts less stress on conductors during a pull than a sharper bend. A 45 degree fitting such as the Thomas & Betts UA7AL-CAR Schedule 40 PVC 45 degree plain-end elbow turns twice as much per fitting, so it covers the same change of direction in fewer fittings and less trench length. Total degrees of bend between pull points is what governs pulling tension, so two 22-1/2 degree elbows and one 45 degree elbow contribute the same amount.
7) What part number do I order for a 2 inch Cantex 22-1/2 degree PVC elbow?
Order Cantex 5134067. That single manufacturer part number covers the 2 inch Schedule 40 PVC 22-1/2 degree elbow; there are no finish or end-type options to specify on it.
8) Do I have to ground a PVC conduit elbow like this one?
No. The fitting body is PVC and non-conductive, so there is nothing on the elbow itself to bond. Any equipment grounding conductor runs through the raceway as it would anywhere else in a nonmetallic system, which is one of the reasons PVC runs install faster than metallic raceway.
9) Does a plain-end PVC elbow install the same way as the Cantex 5134067?
Yes, both are solvent-weld fittings. The Cantex 5134067 is designed for standard PVC solvent cement joining used on Schedule 40 conduit systems, and the Thomas & Betts UA7AL-CAR is a plain-end Schedule 40 PVC elbow, meaning its ends are bare for cementing into a coupling or belled conduit end rather than threaded. Neither requires grounding at the fitting since PVC is non-conductive.
