Carlon 22.50-Degree Standard Radius PVC Elbows Schedule 80

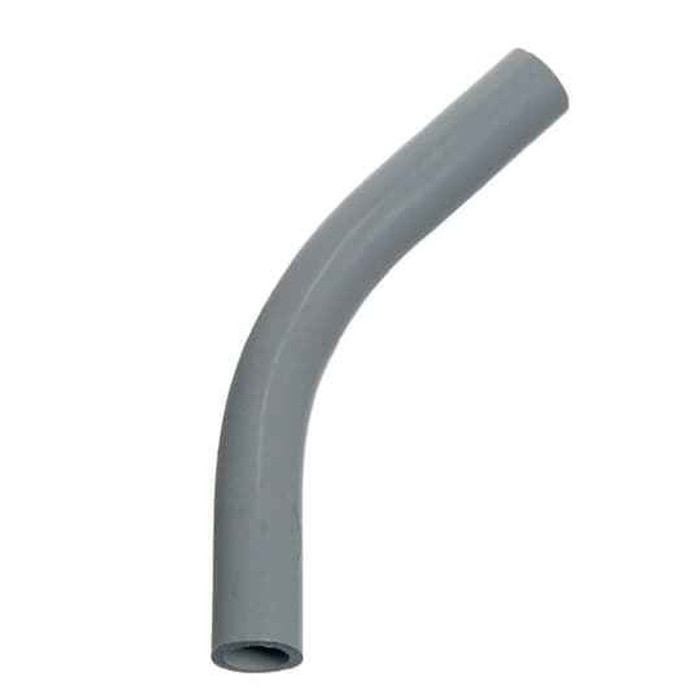

Carlon 22.50-Degree Schedule 80 PVC Conduit Elbow - Gray Standard Radius Electrical Fitting

(No reviews yet) Write a Review

Model: UB5AL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$540.00
$504.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon 22.50-Degree Schedule 80 PVC Conduit Elbow

Professional Grade Standard Radius Electrical Conduit Fitting

The Carlon 22.50-Degree Schedule 80 PVC Conduit Elbow delivers reliable electrical conduit routing for professional installations. This gray PVC fitting provides standard radius bending capability with Schedule 80 wall thickness for enhanced durability and protection in rigid non-metallic conduit systems.

Professional Features & Benefits

  • 22.50-Degree Angle: Provides precise directional changes for optimal conduit routing and professional installation layouts
  • Schedule 80 Construction: Heavy-wall PVC design offers superior strength and impact resistance compared to standard Schedule 40 fittings
  • Standard Radius Design: Facilitates smooth wire pulling while maintaining proper bend radius requirements for electrical codes
  • Gray PVC Material: Corrosion-resistant construction ensures long-term performance in indoor and outdoor electrical applications
  • UL Listed: UL E323335 certification provides assurance of safety and compliance with electrical installation standards
  • US Manufacturing: Made in the United States for consistent quality and reliable supply chain support

Technical Specifications

  • Brand Label: Carlon
  • Country Of Origin: United States (US)
  • Department: Electrical
  • Effective Date: 20080116
  • Idea Granular Category Code Igcc: 5752 >> Pvc Schedule 80 Elbows
  • Product Color: Gray
  • Product Material: PVC
  • Product Name: FITTINGS OF PLASTIC FOR TUBES, ETC.
  • Product Type: Rigid Non-Metallic Conduit-Schedule 80 Elbows
  • Standards: UL E323335

Professional Applications

  • Commercial Electrical Installations
  • Industrial Conduit Systems
  • Residential Electrical Projects
  • Outdoor Electrical Routing
  • Underground Electrical Distribution
  • Heavy-Duty Conduit Applications

Why Choose Carlon Quality?

Carlon Schedule 80 PVC conduit fittings provide professional-grade reliability with UL E323335 listing and US manufacturing quality. The gray PVC construction and heavy-wall design ensure long-term durability in demanding electrical applications.

Manufacturer Resources

Product Specs

Brand Label:
Carlon
Country Of Origin:
United States (US)
Department:
Electrical
Effective Date:
20080116
Idea Granular Category Code Igcc :
5752 >> Pvc Schedule 80 Elbows
Product Color:
Grey
Product Material:
PVC
Product Type:
Schedule 80 Elbows
Standards:
UL E323335
Product Group:
PVC Conduit & Fittings

Carlon UB5AL – Frequently Asked Questions

1) What trade sizes does the Carlon 22-1/2 degree Schedule 80 PVC elbow come in?
Two trade sizes: 3 inch (part UB5AL) and 4 inch (part UB5AN). Both are the standard radius, gray Schedule 80 version. If your run is smaller than 3 inch trade size, you need a different Carlon elbow part number.
2) Can I glue a Schedule 80 elbow to Schedule 40 PVC conduit of the same trade size?
Yes. Trade size governs the socket, so a 3 inch or 4 inch Schedule 80 elbow solvent welds onto Schedule 40 rigid nonmetallic conduit of the same trade size. Schedule 80 has thicker walls and a smaller inside diameter, so the difference shows up in fill capacity and impact resistance, not in the joint.
3) When do I need Schedule 80 instead of Schedule 40 for a conduit elbow?
Schedule 80 is the choice where the conduit is exposed to physical damage, such as risers up a wall, bollard areas, loading docks, and transitions out of the ground. The heavy wall gives more impact resistance than Schedule 40. For protected runs inside walls or above ceilings, Schedule 40 does the same routing job with more wire fill.
4) Does standard radius matter when I am pulling large feeders through a 4 inch elbow?
It does. Standard radius is the normal bend radius for rigid nonmetallic conduit and it satisfies code bend radius requirements for the trade size. On long pulls of large conductors, though, crews often specify a long sweep elbow instead to reduce sidewall pressure. If your pull schedule calls for a long radius sweep, this standard radius 22-1/2 is not the part to order.
5) What else do I need to install this PVC elbow?
Solvent cement and PVC cleaner, and nothing else at the fitting itself. Both ends are belled sockets for solvent weld to rigid nonmetallic conduit of matching trade size. No threading, no couplings, no set screws. Support straps and any expansion fitting needed on long exposed runs are separate.
6) Is this Carlon elbow made in the USA for Buy American specs?
Country of origin is the United States. On federal, state, and institutional jobs that carry a domestic sourcing requirement, that is the line the submittal reviewer looks for on PVC raceway fittings.
7) Will this gray elbow match the PVC conduit already on my site?
Standard electrical PVC conduit and fittings are gray, and this Carlon elbow is gray PVC, so it matches typical existing rigid nonmetallic raceway on a building. If your existing run is orange or another color, that is a different duct system and you should match that product line instead.
How fast can I get the Carlon UB5AL delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
