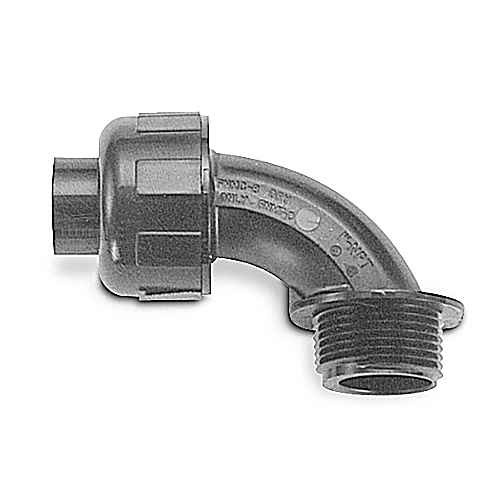

Carlon Non-Metallic 90-Degree Liquid-Tight Fittings - In Black and Gray Finish

Carlon Non-Metallic 90-Degree Liquid-Tight Connectors 3/8 inch IP68 Rated in Black and Gray, 100 Pack

(No reviews yet) Write a Review

Model: LT9100
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$118.57
$11.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon Non-Metallic 90-Degree Liquid-Tight Connectors 3/8 inch IP68 Rated in Black and Gray

Professional liquid-tight electrical connections with superior protection

Carlon Non-Metallic 90-Degree Liquid-Tight Connectors deliver reliable electrical connections with IP68 protection rating for demanding applications. These 3/8 inch connectors feature durable polyamide construction with external threading and one-piece design for secure, watertight performance in both indoor and outdoor installations.

Professional Features & Benefits

  • IP68 Protection Rating: Provides superior protection against dust and water ingress for reliable performance in harsh environments.
  • 90-Degree Elbow Design: Enables efficient routing in tight spaces while maintaining secure connections and reducing installation complexity.
  • 3/8 Inch Nominal Size: Compatible with standard conduit systems for versatile application across residential and commercial projects.
  • Polyamide Construction: Delivers excellent chemical resistance and durability for long-lasting performance in demanding conditions.
  • One-Piece Design: Simplifies installation with no disassembly required, reducing labor time and ensuring consistent connections.
  • UL Listed: Meets UL E23018 standards for safety and reliability in electrical installations.
  • Dual Color Options: Available in black and gray finishes to match various installation requirements and aesthetic preferences.

Technical Specifications

  • Brand Name: Carlon
  • Construction Type: External thread
  • Degree Of Protection Ip: IP68
  • Department: Electrical
  • Etim: EC001178 Screw connection for protective plastic hose
  • Igcc: 4585 Liquid tight connectors
  • Inner Dimensions Inches: 6.375x6.375x6.75
  • Inner Quantity: 25
  • Material Screw Gland: Polyamide
  • Nominal Size In Inch: 3/8 inch
  • Number Of Batteries: 0
  • One Piece: Y
  • Outer Dimensions Inches: 14.25x14.25x14.75
  • Outer Quantity: 200
  • Product Color: Black
  • Product Material: Non-Metallic
  • Product Model: 90°-elbow
  • Product Type: Omni Connectors
  • Revolving Thread: N
  • Special Features: No Disassembly Required.
  • Standard: UL E23018
  • Thread Connection Size: Other
  • Thread Length: 13.2mm
  • Type Of Connection: Plug-in connection
  • Unspsc: 39121420 Liquid tight connectors
  • Weight Uom: 0.07 lbs. Each

Professional Applications

  • Industrial Control Panels
  • Outdoor Electrical Enclosures
  • Commercial Building Systems
  • Marine and Wet Location Installations
  • Food Processing Facilities
  • Chemical Processing Equipment
  • HVAC System Connections

Why Choose Carlon Quality?

Carlon liquid-tight connectors provide dependable performance with UL E23018 listing and IP68 protection rating. The durable polyamide construction and one-piece design ensure reliable connections that withstand demanding environmental conditions while simplifying installation requirements.

Manufacturer Resources

Spec Sheet

Product Specs

Brand Name:
Carlon
Construction Type:
External thread
Degree Of Protection Ip:
IP68
Department:
Electrical
Etim:
EC001178 Screw connection for protective plastic hose
Igcc:
4585 Liquid tight connectors
Inner Dimensions Inches:
6.375x6.375x6.75
Inner Quantity:
25
Material Screw Gland:
Polyamide
Nominal Size In Inch:
3/8 inch
Number Of Batteries:
0
One Piece:
Y
Outer Dimensions Inches:
14.25x14.25x14.75
Outer Quantity:
200
Product Material:
Non-Metallic
Product Model:
90°-elbow
Product Type:
90 Degree Liquidtight Connector
Revolving Thread:
N
Special Features:
No Disassembly Required.
Standards:
UL E23018
Thread Connection Size:
Other
Thread Length:
13.2mm
Unspsc:
39121420 Liquid tight connectors
Weight Uom:
0.07 lbs. Each
Product Group:
Conduit & Raceway
Type Of Connection (Specs):
Plug-in connection
Product Subgroup:
Liquidtight Conduit & Fittings

Carlon LT9100 – Frequently Asked Questions

1) What trade sizes do the Carlon LT9 series 90-degree liquid-tight connectors come in?
Three trade sizes across the Carlon LT9 non-metallic 90-degree liquid-tight connectors: 3/8 inch (LT938 black, LT938G gray), 3/4 inch (LT975 black, LT975G gray), and 1 inch (LT9100 black, LT9100G gray). Each size is offered in both black and gray, so the size and color you need is a single part number.
2) Can I use a Carlon LT938 liquid-tight elbow outdoors or in a washdown area?
Yes. The Carlon non-metallic 90-degree liquid-tight connectors carry an IP68 degree of protection, which covers dust ingress and prolonged water immersion, and they are UL listed under file E23018. That suits them to outdoor enclosures, wet-location and marine runs, food processing washdown areas, and rooftop HVAC connections. The body is non-metallic polyamide, so it also holds up to chemical exposure where a metal fitting would corrode.
3) Do these Carlon 90-degree connectors come apart for assembly, and how long is the threaded end?
No disassembly. The Carlon LT9 series elbows are a one-piece design, so there is no gland nut or body to separate before you land the fitting. The threaded male end measures 13.2 mm long, which is what you have to work with for locknut and sealing washer thickness on the enclosure wall. The thread is external and non-revolving, so the whole fitting turns as you thread it in; plan the direction of the 90-degree leg before you tighten.
4) When should I use a 90-degree liquid-tight connector instead of a straight one?
Use the elbow when the enclosure sits tight to a wall, a floor, or another piece of equipment and a straight fitting would force a bend radius the flexible conduit cannot make. The Carlon 90-degree elbow turns the run immediately at the box, so the conduit leaves parallel to the surface instead of standing off it. If you have room to sweep the conduit yourself, a straight connector is simpler and costs one less fitting in the run.
5) Will a 3/8 inch Carlon liquid-tight connector fit 3/8 inch flexible conduit?
Yes. The nominal size is 3/8 inch, which is the trade size of the non-metallic liquid-tight flexible conduit it lands on, not a measured outside diameter. Match the fitting trade size to the conduit trade size and the enclosure knockout, and order the LT938 in black or LT938G in gray. Step up to 3/4 inch or 1 inch if your conduit is larger.
6) How many Carlon LT9 liquid-tight connectors come in a carton?
Packaging runs 25 pieces to the inner box and 200 to the master carton. The inner box measures 6.375 x 6.375 x 6.75 inches and the outer 14.25 x 14.25 x 14.75 inches, and each fitting weighs 0.07 lbs. Useful numbers if you are stocking a service van or figuring shelf space in a parts room.
7) Does the black or gray Carlon liquid-tight elbow change anything besides the color?
Color only. Black (LT938, LT975, LT9100) and gray (LT938G, LT975G, LT9100G) are the same non-metallic polyamide fitting with the same IP68 rating and the same UL E23018 listing. Pick whichever matches the conduit and enclosure already on the job so a maintenance tech can see the run at a glance.
