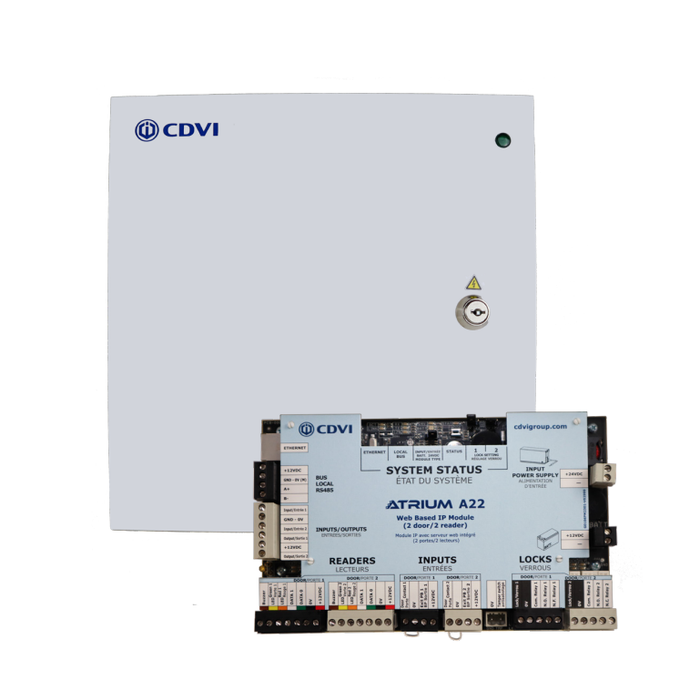

CDVI Americas A22 ATRIUM 2-Door Controller With Power Supply/Box

CDVI Americas A22 ATRIUM 2-Door Controller With Power Supply/Box

(No reviews yet) Write a Review

Model: A22

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,602.00
$972.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ATRIUM/ A22 - 2 Door Controller

The A22 is a 2-door controller part of the ATRIUM product range. The flexibility of the ATRIUM system allows it to control up to 500 doors. The A22 has a built in web browser, an integral power supply and includes an RS485 communication bus with automatic detection (no risk of errors due to lack of jumpers or DIP switches). The “quick start-up” programming cards allow for easy and fast programming. The A22 is delivered and built in a metal case with tamper for increased security while providing ample room to make connections.

Key features

  • Control 2 doors or 2 readers 1 Door Read In/Out or 2 Doors Read In Only
  • Area capacity management forsocial distancting
  • Metal cased with tamper for security
  • Built in web-server, PSU and battery charger
  • Includes free software & free app
  • Up to 500 doors, 10,000 users & cards

Communication

  • On-board Ethernet: A22 to A22 (max 50 IP-IP)
  • Bus: RS-485 A22 (max 4 per A22)
  • Auto: detect hardware modules (No DIP Switches)

Reader Support

  • 26, 30 & 44 Bit Wiegand format Track 2 ABA
  • Reader & Keypad (Card & PIN)
  • CDVI Wiegand and MIFARE® Readers
  • 3rd Party if compatible
  • 128 bit Universal Input

Input Specifications

  • Reader inputs/ports: 2
  • Multi-purpose inputs: 6 (12 using zone doubling)

Output Specifications

  • Auxiliary outputs: 1A (12Vdc) Fuseless protection
  • Lock outputs: 2 x (750mA @ 12Vdc)
  • Relay outputs: 2 x Form C relays (Dry Contact) 5A @ 250Vac, 7A @ 125Vac, 7A @ 30Vdc

Electrical Specifications

  • Power input: 85Vac to 264Vac, 50/60Hz
  • Supply current: 3.3A switching power supply
  • Battery backup: One 12Vdc, 4.5Ah or 7Ah, gel type battery

Resources:

Atrium A22 Data Sheet

Manufacturer Resources

Product Specs

Subcategory:
Readers & Credentials
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Access Controllers
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Model:
A22
Product Function:
Controller With Reader
Product Category:
Electronic Access Control
Department:
Door Hardware

CDVI A22 – Frequently Asked Questions

1) How many doors can the CDVI Atrium A22 controller run, and can it do read-in/read-out on one door?
The A22 handles two doors or two readers. You can configure it as two doors read-in only, or one door read in and out. It has two reader ports, two lock outputs, and two Form C dry contact relays, so an in/out turnstile-style opening uses both reader ports on a single door. If you need in/out on two separate doors, you need a second controller.
2) Will the A22 power my maglocks and electric strikes directly?
Each of the two lock outputs on the A22 supplies 750mA at 12Vdc, which covers most 12V electric strikes and many 12V maglocks. There is also a 1A 12Vdc auxiliary output with fuseless protection for readers and peripherals. A 24V lock, or a maglock drawing more than 750mA at 12V, has to be driven off one of the two Form C dry contact relays with its own power supply. Those relays are rated 5A at 250Vac, 7A at 125Vac, and 7A at 30Vdc.
3) Can I use my existing Wiegand card readers with the CDVI Atrium A22?
The A22 reads 26, 30 and 44 bit Wiegand formats and Track 2 ABA, and supports reader plus keypad for card-and-PIN. CDVI Wiegand and MIFARE readers are supported directly, and third party readers work if they are compatible with those formats. It also handles a 128 bit universal input. If your existing readers output a standard 26 bit Wiegand, they will land on the A22.
4) How big can an Atrium system get if I start with one A22 controller?
The Atrium platform scales to 500 doors and 10,000 users and cards. Expansion works two ways: on-board Ethernet links A22 to A22 up to 50 IP-to-IP connections, and each A22 carries an RS-485 bus that takes up to 4 modules. Hardware modules are auto-detected, so there are no DIP switches or jumpers to set when you add to the system. For a property manager standardizing across a portfolio, that means one A22 at a two-door building can join the same system as the rest later.
5) Do I have to buy access control software or a monthly subscription to run the A22?
No separate software purchase. The A22 has a built-in web server, so you program and manage it from a browser over the on-board Ethernet connection, and CDVI includes free software and a free app with it. Quick start-up programming cards are used to get the controller commissioned without a laptop session for the initial setup.
6) What is the difference between the CDVI A22 controller and the A22KITSTB Atrium kit?
Both are built around the same A22 ATRIUM 2-door controller, which ships in a metal case with tamper and carries its own power supply, battery charger and built-in web server. The A22 on its own is the controller and enclosure - you supply the readers and credentials. The A22KITSTB is an Atrium 2-door kit that pairs the A22 with two STARPB readers and 15 credentials, so it arrives as a complete two-door package. A locksmith replacing a failed panel where the readers and cards are already in service takes the A22 by itself; a contractor building two openings from scratch takes the kit and does not have to source readers separately.
7) I only have one door to control - is the CDVI A22 the right panel or is there a single-door option?
The A22 is a two-door controller: two reader ports, two lock outputs at 750mA each at 12Vdc, and two Form C dry contact relays, so on a single opening you are buying a spare door - though it does let you run that one door read-in/read-out with a reader on each side. If the job is genuinely one door and will stay that way, the Schlage Electronics CTE ENGAGE single door controller is the single-door equivalent, with a mobile-enabled multi-technology reader and a direct RS-485 connection. The trade is expansion: the A22 grows on RS-485 and Ethernet to a system of up to 500 doors and 10,000 users, so a property manager who expects to add openings across a building usually starts with the A22 even on the first door.
8) How many inputs does the A22 have for request-to-exit and door contacts?
Six multi-purpose inputs, which doubles to 12 using zone doubling. On a two-door opening that is enough for a door position contact and a request-to-exit device on each door with inputs left over for tamper, alarm, or auxiliary devices. The enclosure itself has a tamper switch already wired.
9) Should I buy the A22 controller by itself or the Atrium 2-door kit?
Buy the A22 on its own when you already have readers and credentials on site, or you are specifying third party Wiegand readers. If you are starting from nothing at a two-door opening, the CDVI Americas A22KITSTB Atrium 2-Door Kit bundles the same A22 with two STARPB readers and 15 credentials, so it is one part number instead of three. The controller is identical either way.
10) What is the difference between the CDVI A22 and a Schlage ENGAGE CTE single door controller?
Door count and topology. The A22 is a two-door panel with its own power supply and metal enclosure, expandable over Ethernet and RS-485. The Schlage Electronics CTE-MTB11-485-B is a single door controller with a mobile-enabled multi-technology reader built into it, connecting by direct RS-485. Pick the A22 when you are controlling a pair of openings from one panel and want the PSU in the box; pick the CTE when you need one opening with a mobile-credential reader integrated at the door.
11) What battery do I need for backup power on a CDVI A22?
One 12Vdc gel type battery, either 4.5Ah or 7Ah. The charger is already on the A22 board, so no external charging circuit is needed, and the metal enclosure is sized with room for connections. Pick the 7Ah if you need longer standby on a two-door opening with both lock outputs loaded.
12) Do I need a separate power supply and enclosure if I buy the CDVI A22 instead of the Atrium kit?
No. The A22 controller is delivered already built into a metal case with tamper, with an integral power supply rated 85Vac to 264Vac input at 50/60Hz and a 3.3A switching supply, a battery charger, and room inside the can to land the connections. That is true of the A22 whether it comes on its own or inside the A22KITSTB Atrium 2-door kit, since the kit is the same A22 bundled with two STARPB readers and 15 credentials. What the standalone A22 does not bring is the readers and cards, and it does not include the backup battery itself - budget one 12Vdc 4.5Ah or 7Ah gel battery per panel.
13) Is the CDVI A22 suitable for a commercial building or is it a residential product?
Commercial. The A22 is a commercial electronic access control panel, with a line-voltage input of 85Vac to 264Vac, a metal tamper-protected enclosure, and scaling to 500 doors and 10,000 users. Area capacity management for occupancy limits is built into the Atrium software, which matters in offices, schools, and healthcare facilities managing headcount per zone.
