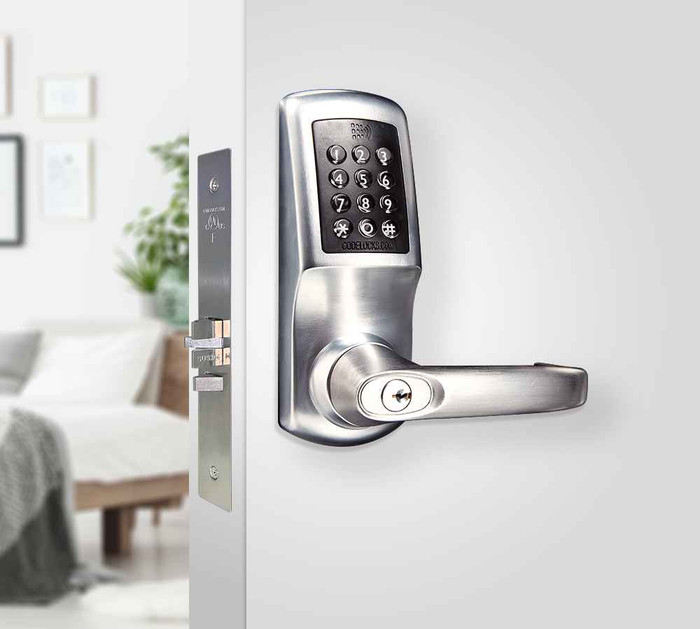

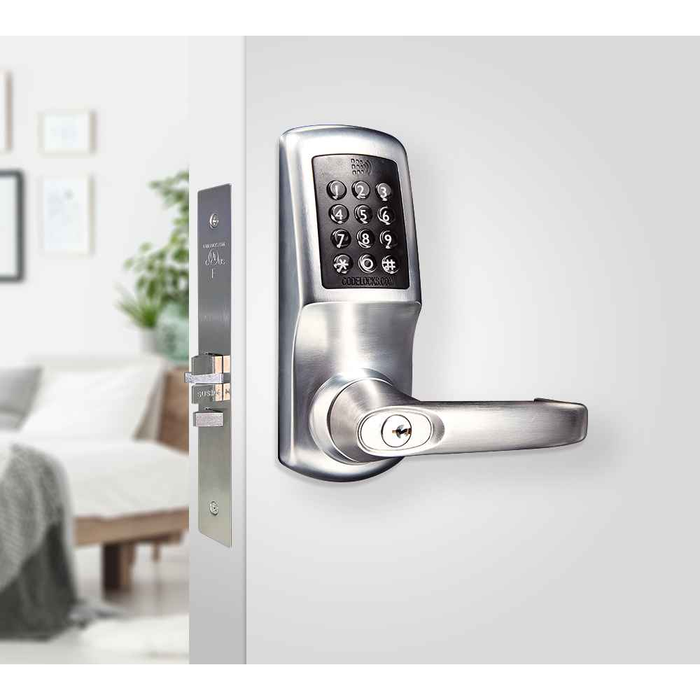

CL5550 Smart Lock
Managing and operating locks has never been easier. The CL5550 Smart Lock offers advanced programming and access methods.
Managing and operating locks has never been easier. The CL5550 ANSI Grade 2 Smart Lock offers advanced programming and access methods, as well as simple retrofit opportunities for easy upgrades from the CL5000 range.
Key Features
- Manage and operate locks via smartphone
- Keyless entry - no lost keys
- ANSI Grade 2
- 3-hour UL 10C certification (must be installed with UL fire rated lock case)
- 12 button back-lit keypad
- NetCode® generation technology
- Set up to 10 Code Free access periods
- Suspend and restore any or all clients
- Keypad indicates locked / unlocked status
- Tamper time out and low battery warning
- Personal wireless connectivity for management
- Simple upgrade from electronic range using same fixings
- Auxiliary connections enabling four modes of operation
Technical Specs
- Brand - Codelocks
- Buttons - 3 x 4
- Clients – Smart Cards - Up to 150 Client Smart Cards
- Clients – Smart Phones - Up to 100 Phone Clients
- Clients – User Codes - Up to 100 Client User Codes
- Code Change Method - Keypad (On Door)
- Codes - 4 Digit User Codes
- Door Thickness - 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
- Finish - Brushed Steel
- Function - NetCode®
- Handed - Non Handed - Locks will fit doors hung on the left or right
- Keyed Alike - Available
- Keypad - 12 button back-lit keypad
- Lock Material - Zinc Alloy
- Low Battery Warning - Red LED will flash on opening to indicate low battery
- Memory - Stores 350 different Clients
- NetCode® - Available via the App or online Portal
- Operations - 10,000 operations from 4 x AA batteries
- Orientation - Vertical
- Power - 4x AA
- Spindle - Two part 5⁄16" (8mm) spring loaded spindle
- Suitable For - Internal, External
- User Levels - Master, Sub Master, Standard User
- User Types - Code, Card, Smartphone, NetCode®
Downloads and Documentations
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- CL5500 Series
- Model:
- CL5550
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Smart Locks
- Subcategory:
- Electronic Locks
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Duty Level:
- Heavy Duty
- Finish:
- Brushed Steel
- Substrate:
- Zinc Alloy
- Orientation:
- Vertical
- Power:
- 4X AA
- Handed:
- Non Handed
