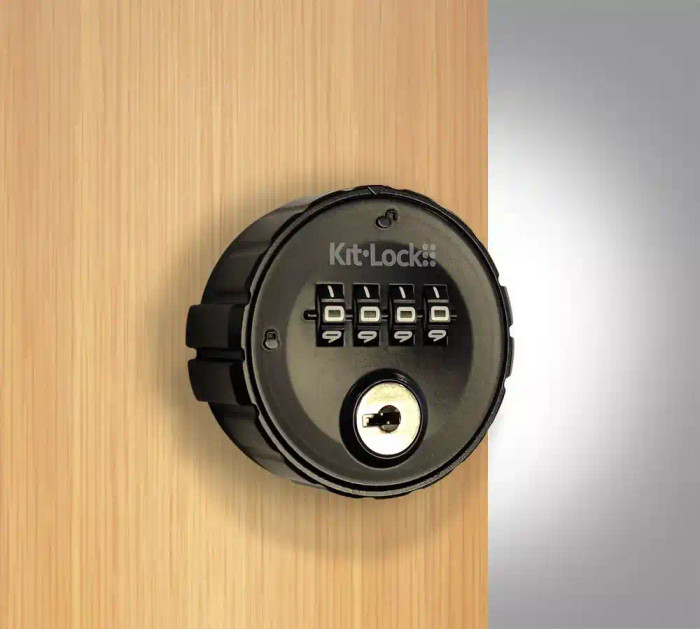

Codelocks KL10 KitLock Mechanical Combination Lock, Black Finish

Codelocks KL10 KitLock Mechanical Combination Lock, Black Finish

(No reviews yet) Write a Review

Model: KL10 BK PT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

KL10 KitLock Mechanical Combination Lock

A durable, compact, easy to use mechanical lock. Designed to be both retrofitted or installed on new cabinets.

No more lost keys. Simple, mechanical, access control.

The KitLock KL10 offers mechanical keyless access suitable for a variety of lockers, cabinets and cupboards. Designed with simplicity in mind, this simple mechanical lock can be fitted as a new install or retrofitted to existing cam locks.

The KL10 mechanical locks are compact, durable and easy to use. Changing or resetting the code can be completed easily while the lock is still in place on the door.

The KL10 is suitable for use in Private Function, where the same code will be repeatedly used. Ideal for continual use, e.g. pupil or workplace lockers.

The KL10 is provided with a straight cam, hex nut and screw as standard.

An additional fastener pack is available to purchase containing a cranked cam, metal clip, washer and two screws.

Key Features

  • Easy to install and retrofit
  • Locked and unlocked indicators
  • 4 wheel code combination
  • Up to 10,000 unique combinations
  • Black powder coated finish
  • Private Function only
  • Easy grip outer casing
  • Suitable for internal use
  • Ideal for cabinets, lockers, cupboards

Technical Specs

  • Brand - KitLock by Codelocks
  • Codes - Single code storage - up to 10,000 code combinations
  • Finish - Black
  • Fit Doors Up To - 11⁄16" (18mm) thick
  • Function - Private
  • Handed - Non Handed
  • Latch Type - Cam
  • Lock Material - Zinc Alloy
  • Orientation - Vertical
  • Spindle - Fixed spindle suitable up to 11⁄16" (18mm) thick
  • Suitable For - Internal
  • User Types - Code

Downloads and Documentations

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
KL10 Series
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Commercial
Handed:
Non Handed
Orientation:
Vertical
User Codes:
Single code storage - up to 10,000 code combinations
Product Type:
Mechanical Combination Lock
Subcategory:
Mechanical KitLocks
Product Model:
CL-KL10
Product Function:
Private, Public
Product Finish:
Black
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Codelocks KL10 BK PT – Frequently Asked Questions

1) Can the KL10 replace an existing cam lock on a cabinet without new holes?
Yes, it is built to retrofit existing cam locks as well as go into new cabinets. It is a cam latch lock with a vertical orientation and it is non handed, so it works on left or right hung doors without ordering a hand. It comes with a straight cam, hex nut and screw. If your existing cutout needs a cranked cam instead, there is a separate fastener pack with a cranked cam, metal clip, washer and two screws.
2) What is the difference between the Private and Public versions of the KL10?
Two lock type options are offered, Private and Public. Private is the one for a lock assigned to the same person using the same code over and over, like a pupil or staff locker. Public function suits shared use where the code changes between users. Pick the option that matches how the locker is assigned before you order.
3) How many code combinations does the KL10 KitLock have and can I change the code in place?
Four wheels giving up to 10,000 unique combinations, with a single code stored at a time. The code can be changed or reset with the lock still mounted on the door, so a facilities crew can reassign lockers without pulling hardware off.
4) Is the KL10 KitLock suitable for a commercial gym or school locker bank?
That is exactly what it targets. It is classed as commercial hardware and the Private function is called out for continual use on pupil or workplace lockers. Keyless operation removes the lost key problem across a large bank, and the outer casing is shaped for easy grip. Locked and unlocked indicators let staff see status at a glance walking the row.
5) Do I need any batteries, wiring or software for the KL10 lock?
None. The KL10 is a purely mechanical combination lock, so there is no battery to change, no wiring and no software. Access is by code only, entered on the four wheels.
6) What is included with the KL10 and what might I need to buy separately?
Each KL10 ships with a straight cam, a hex nut and a screw. That is enough for a standard cam lock cutout. If your door needs a cranked cam, or you want the metal clip and washer fixing method, order the additional fastener pack, which contains a cranked cam, metal clip, washer and two screws.
7) Is the KL10 available in any finish other than black?
Black is the finish offered, a black powder coat over a zinc alloy body. The two ordering choices on the KL10 are the Private and Public lock types, not finish.
