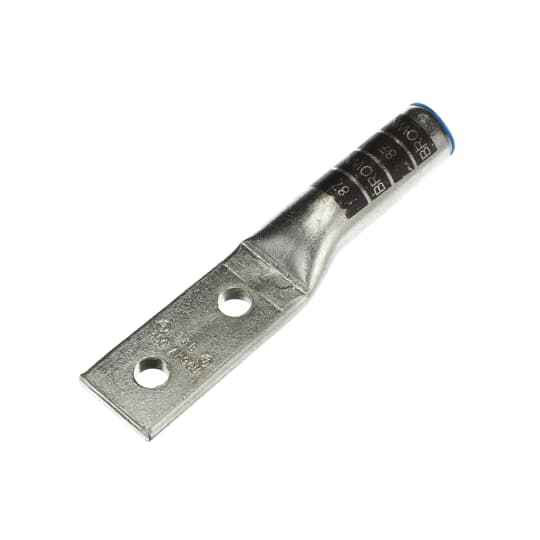

Color Keyed Two Hole Lugs 90°C Connectors for Aluminum/Copper Code Conductor - 2/0 AWG-700kcmil

Color-Keyed Two Hole Aluminum Cable Lugs 90°C Long Barrel Connectors for 2/0 AWG-700kcmil Conductors

(No reviews yet) Write a Review

Model: CLK-60248

In Stock (leaves warehouse same day if ordered before 3pm ET)

$85.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color-Keyed Two Hole Aluminum Cable Lugs 90°C Long Barrel Connectors

Professional electrical connections for aluminum and copper conductors

Color-Keyed Two Hole Aluminum Cable Lugs deliver reliable electrical connections for 2/0 AWG through 700kcmil conductors with 90°C temperature rating. These long barrel aluminum lugs feature tinned surface protection and straight connecting angle design for professional electrical installations requiring secure conductor terminations.

Professional Features & Benefits

  • 90°C Temperature Rating: Handles high-temperature applications safely with reliable performance under demanding electrical loads.
  • Long Barrel Design: Provides extended conductor contact area for enhanced connection integrity and reduced resistance.
  • Two Hole Configuration: Offers secure mechanical attachment with dual mounting points for stable connections.
  • Aluminum Construction: Lightweight yet durable material reduces installation weight while maintaining electrical performance.
  • Tinned Surface Protection: Prevents corrosion and oxidation for long-term connection reliability in various environments.
  • UL E9809 Listed: Meets rigorous safety standards ensuring code compliance and professional installation confidence.
  • Wide Conductor Range: Accommodates 2/0 AWG through 700kcmil conductors for versatile application compatibility.

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Brand Name: Color-Keyed
  • Connecting Angle: Straight
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19750324
  • Etim: EC001051 Tube cable lug for copper conductors
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Igcc: 4532 Cable or wire lug
  • Inner Dimensions Inches: 4x4x3
  • Inner Quantity: 5
  • Insulated: N
  • Insulation: None
  • Insulation Material: None
  • Number Of Fixing Holes: 2
  • Number Of Holes: 2
  • Outer Dimensions Inches: 21.5x8.5x3.5
  • Outer Quantity: 50
  • Product Details: Long Barrel
  • Product Material: Aluminum
  • Product Type: Long Barrel
  • Slender Flange Model: N
  • Standard: UL E9809
  • Standards: UL E9809
  • Sub Brand Label: Color Keyed
  • Surface Protection: Tinned
  • Unspsc: 39121405 Cable or wire lug
  • Weight Uom: 21.19 lbs. per 100
  • With Sight Hole: N

Professional Applications

  • Industrial Panel Connections
  • Commercial Electrical Systems
  • Power Distribution Equipment
  • Switchgear Installations
  • Motor Control Centers
  • Transformer Connections
  • Electrical Service Upgrades

Why Choose Color-Keyed Quality?

Color-Keyed cable lugs provide dependable electrical connections backed by UL E9809 listing and professional-grade aluminum construction with tinned surface protection. The long barrel design and two-hole configuration ensure reliable performance in demanding electrical applications where connection integrity is critical.

Manufacturer Resources

Spec Sheet

Product Specs

Brand Label:
Color Keyed / Blackburn
Brand Name:
Color-Keyed
Connecting Angle:
Straight
Department:
Electrical
Effective Date:
19750324
Etim:
EC001051 Tube cable lug for copper conductors
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Igcc:
4532 Cable or wire lug
Inner Dimensions Inches:
4x4x3
Inner Quantity:
5
Insulated:
N
Number Of Fixing Holes:
2
Number Of Holes:
2
Outer Dimensions Inches:
21.5x8.5x3.5
Outer Quantity:
50
Product Details:
Long Barrel
Product Material:
Aluminum
Product Type:
Long Barrel
Slender Flange Model:
N
Standards:
UL E9809
Sub Brand Label:
Color Keyed
Surface Protection:
Tinned
Unspsc:
39121405 Cable or wire lug
Weight Uom:
21.19 lbs. per 100
With Sight Hole:
N

Color-Keyed CLK-60248 – Frequently Asked Questions

1) Can Color-Keyed two hole long barrel lugs be used on copper conductors, or aluminum only?
These Color-Keyed two hole long barrel lugs are rated for both aluminum and copper code conductors from 2/0 AWG through 700kcmil. The lug body itself is aluminum with a tinned surface, which is what makes the dual-rated copper use possible and keeps the aluminum-to-copper contact from oxidizing.
2) I need a lug for 600kcmil cable landing on a 3/8 inch stud. Is that available?
No. At 600kcmil the only bolt size offered is 1/2 inch (part 60275). The 3/8 inch hole tops out at 500kcmil (part 60271). For a 600kcmil conductor on a 3/8 inch stud you would need a different lug family or an adapter arrangement.
3) Are these Color-Keyed lugs UL listed for electrical inspection?
Yes, they are listed under UL file E9809. That is the reference an inspector or submittal reviewer will want for a compression termination on a service upgrade, switchgear, or motor control center.
4) Why choose a two hole lug instead of a single hole lug on a bus bar?
Two bolt holes stop the lug from rotating on the pad under vibration or fault current, which is why they are specified on switchgear, motor control centers, and transformer connections. A single hole lug can spin and loosen the connection. These Color-Keyed lugs have two fixing holes and a straight connecting angle, so the barrel comes off the pad in line rather than turning 45 or 90 degrees.
5) Do these lugs have a sight hole to check conductor insertion before crimping?
No. These are solid-barrel lugs with no inspection window, so set your strip length against the barrel depth and seat the conductor fully against the shoulder before you crimp. If your spec requires visual verification of insertion, you need a sight hole version instead.
6) Is this a slender flange lug for tight pad spacing on a breaker?
No, these are standard flange two hole lugs, not the slender flange style. If you are stacking lugs on close-centered breaker pads or a crowded bus, measure your pad spacing first, because the standard tongue width may not clear.
7) What does the long barrel on these cable lugs actually get me over a standard barrel?
The long barrel gives more contact length along the conductor, which spreads the compression over more crimps and lowers connection resistance. It is the usual choice where the termination carries sustained high current or sees thermal cycling. Note these are uninsulated, so the barrel and any exposed strand need taping or a boot if the installation calls for covered terminations.
8) How do Color-Keyed two hole aluminum lugs ship for a large job, and are they sold in boxes?
They are packed 5 per inner box with 50 per outer carton. That pack structure is worth knowing when you are buying lugs by the hundred for a service upgrade or a switchgear lineup, since weight runs about 21.19 lbs per 100 pieces.
