Color Keyed Two Hole Cable Lug...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$22.83

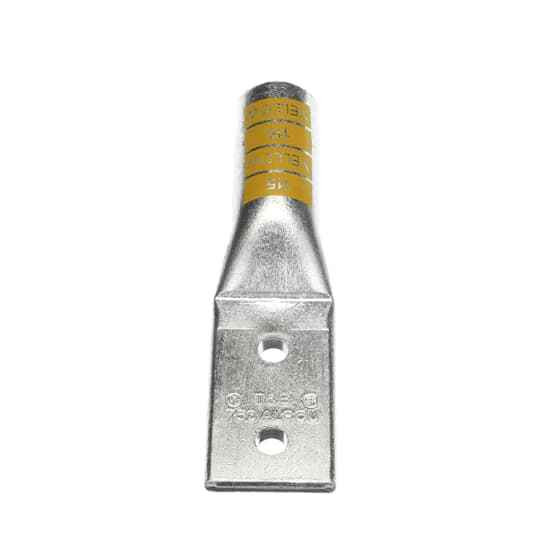

Color Keyed Two Hole Lugs 90°C Connectors for Aluminum/Copper Code Conductor - 1/0 AWG-1000kcmil

Color Keyed Two Hole Cable Lugs 90°C Long Barrel Connectors for Aluminum/Copper - 1/0 AWG-1000kcmil

(No reviews yet) Write a Review

Model: CLK-60230

In Stock (leaves warehouse same day if ordered before 3pm ET)

$22.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed Two Hole Cable Lugs 90°C Long Barrel Connectors for Aluminum/Copper - 1/0 AWG-1000kcmil

Professional electrical connections for aluminum and copper conductors

Color Keyed two hole cable lugs deliver reliable electrical connections for aluminum and copper conductors from 1/0 AWG to 1000kcmil. These long barrel connectors feature 90°C temperature rating and 35kV voltage rating for demanding electrical applications. The aluminum construction provides durability while the color keyed design ensures proper identification and installation.

Professional Features & Benefits

  • 90°C Temperature Rating: Handles high-temperature applications with reliable performance and safety margins
  • 35kV Voltage Rating: Suitable for high-voltage electrical systems with professional-grade insulation capabilities
  • Long Barrel Design: Provides extended contact area for secure conductor connection and enhanced current carrying capacity
  • Aluminum Construction: Lightweight yet durable material offers excellent conductivity and corrosion resistance
  • Color Keyed System: Visual identification system reduces installation errors and improves maintenance efficiency
  • UL E9809 Listed: Meets rigorous safety standards for professional electrical installations
  • Dual Conductor Compatibility: Works with both aluminum and copper conductors for versatile applications

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19750324
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Material: Aluminum
  • Product Type: Long Barrel
  • Standards: UL E9809
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • Industrial electrical distribution systems
  • Commercial power distribution panels
  • Utility substation connections
  • High-voltage electrical installations
  • Power generation facilities
  • Electrical contractor applications
  • Maintenance and repair operations

Why Choose Color Keyed Quality?

Color Keyed cable lugs provide professional-grade reliability with UL E9809 listing and aluminum construction designed for long-term performance. The 35kV voltage rating and 90°C temperature capability ensure dependable operation in demanding electrical environments.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Department:
Electrical
Effective Date:
19750324
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Material:
Aluminum
Product Type:
Long Barrel
Standards:
UL E9809
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed CLK-60230 – Frequently Asked Questions

1) Can these Color Keyed long barrel two hole lugs be used on both aluminum and copper conductors?
Yes. The Color Keyed long barrel two hole lugs are rated for aluminum or copper conductors from 1/0 AWG through 1000 kcmil, so the same lug covers an AL or CU feeder of the matching size. Pick the lug by the conductor size you are terminating, not by the metal.
2) What temperature and voltage rating do these two hole cable lugs carry?
Rated 90 degrees C and 35 kV. That makes them usable with 90 C rated conductor insulation and in medium voltage terminations up to 35 kV. UL listing is under file E9809.
3) Do these lugs come insulated or do I need to insulate them after crimping?
They ship bare. Insulation material is listed as none, so the barrel and tongue are uncovered aluminum and you supply your own tape, heat shrink, or boot to finish the termination per the installation requirement.
4) Which cable sizes can I order in the Color Keyed two hole long barrel lug?
Two sizes are orderable: 1/0 AWG as part number 60230, and 750 kcmil as part number 60278. Both are two hole tongue, long barrel, aluminum bodied, and rated 35 kV.
5) Why choose a long barrel lug over a standard barrel for a 500 kcmil or larger feeder?
The long barrel gives a longer crimp area on the conductor, which means more contact surface and room for multiple crimps on large cable. On heavy feeders and medium voltage work that extra barrel length is what carries the current without a hot joint. A standard short barrel lug is fine for smaller, lower current terminations where panel space is tight.
6) What does the color keyed system actually do on the job site?
The color on the lug identifies the conductor range and the matching die, so a crimper can confirm he has the right lug and the right die index before he compresses it. It is an inspection aid as much as an install aid, which is why utility and industrial specs call for it.
7) Is a two hole tongue better than a single hole lug for a bus connection?
Two holes stop the lug rotating on the pad, which matters on vibrating equipment, switchgear bus, and anywhere a torqued single bolt could let the tongue swing. If the landing pad is only drilled for one bolt, a two hole tongue will not land and you want a single hole lug instead. Check the bolt pattern on your pad before ordering.
8) Are these compression lugs or mechanical set screw lugs?
Compression. The long barrel is crimped onto the conductor with a hydraulic or battery tool and the color keyed die index, so there are no set screws to torque or re-torque. If you need a re-usable, tool-free termination, you want a mechanical set screw lug instead.
9) Are these Blackburn lugs, or a different brand?
Same family. The lugs are labeled Color Keyed / Blackburn, with Color Keyed as the sub brand, so a spec calling out Blackburn Color Keyed lugs is satisfied by these part numbers. Country of origin is Mexico.
