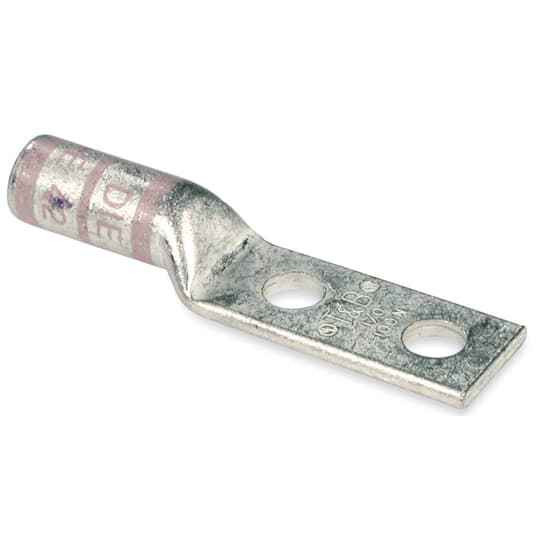

Color-Keyed 1/0 AWG Long Barrel Copper Compression Lugs - Two-Hole Pink Tinned Terminal Connectors

Color-Keyed 1/0 AWG Long Barrel Copper Compression Lugs

Professional Two-Hole Terminal Connectors for Reliable Electrical Connections

Color-Keyed 1/0 AWG Long Barrel Copper Compression Lugs deliver professional-grade electrical connections with enhanced wire size identification through color coding. These pink tinned copper lugs feature a long barrel design for secure conductor termination and two fixing holes for versatile mounting applications. The straight connecting angle and tinned surface protection ensure reliable performance in electrical installations.

Professional Features & Benefits

• 1/0 AWG Cable Capacity: Accommodates 1/0 AWG conductors for medium-duty electrical applications with proper wire management.
• Long Barrel Design: Extended barrel length provides enhanced conductor contact area for secure crimping and reliable electrical connections.
• Two-Hole Configuration: Dual fixing holes offer flexible mounting options and secure mechanical attachment to terminals and bus bars.
• Tinned Surface Protection: Tinned copper construction resists corrosion and oxidation for long-term electrical performance.
• Color-Coded Pink: Pink color identification enables quick wire size recognition and reduces installation errors in complex electrical systems.
• UL Listed: UL E9809 listing ensures compliance with electrical safety standards for professional installations.
• Straight Connection: Straight connecting angle provides direct conductor alignment for standard terminal applications.

Technical Specifications

• Brand Label: Color Keyed / Blackburn
• Brand Name: Color-Keyed
• Cable Size: 1/0 AWG
• Connecting Angle: Straight
• Country Of Origin: Mexico (MX)
• Department: Electrical
• Effective Date: 19780502
• Etim: EC001051 Tube cable lug for copper conductors
• Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
• Igcc: 4532 Cable or wire lug
• Inner Dimensions Inches: 9x4x3
• Inner Quantity: 5
• Insulated: N
• Insulation: None
• Insulation Material: None
• Number Of Fixing Holes: 2
• Number Of Holes: 2
• Outer Dimensions Inches: 10x6.8x4.2
• Outer Quantity: 25
• Product Color: Pink
• Product Details: Long Barrel
• Product Material: Copper
• Product Type: Long Barrel
• Slender Flange Model: N
• Standard: UL E9809
• Standards: UL E9809
• Sub Brand Label: Color Keyed
• Surface Protection: Tinned
• Unspsc: 39121405 Cable or wire lug
• Weight Uom: 10.88 lbs. per 100
• With Sight Hole: N

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Motor Control Centers
• Distribution Equipment
• Industrial Control Systems
• Commercial Electrical Installations
• Maintenance and Repair Operations
• Electrical Contractor Applications

Why Choose Color-Keyed Quality?

Color-Keyed compression lugs provide reliable electrical connections with UL E9809 listing for professional safety compliance. The tinned copper construction and long barrel design ensure durable performance in demanding electrical applications, while the color-coding system enhances installation efficiency and reduces errors.
