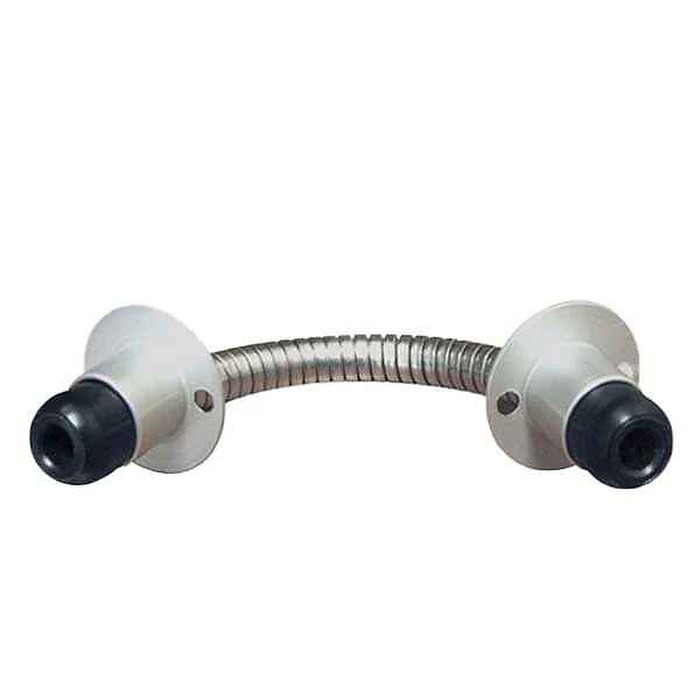

Command Access CDL Concealed Door Loop with 180° Swing Support

Command Access CDL Concealed Door Loop with 180° Swing Support

(No reviews yet) Write a Review

Model: CDL-AL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.00
$32.42
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access CDL Concealed Door Loop with 180° Swing Support

Professional Concealed Power Transfer Solution

The Command Access CDL Concealed Door Loop provides a low-cost method of transferring low voltage power from the door frame to locking devices while remaining completely hidden when the door is closed. This patented design slides into the door and/or frame, offering superior aesthetics compared to surface-mounted door loops. Designed for continuous and butt hinge applications including full mortise, half mortise, or half surface configurations with standard throw, the CDL supports up to 180° swing operation.

Professional Features & Benefits

  • Concealed Installation: Patented design slides completely into door and frame, remaining invisible when door is closed for superior aesthetic appeal.
  • Versatile Hinge Compatibility: Works with continuous hinge and butt hinge applications including full mortise, half mortise, and half surface configurations.
  • Wide Swing Range: Supports up to 180° door swing for maximum operational flexibility in various applications.
  • Flexible Conduit System: Features special 1/4" flexible armoured conduit for reliable power transfer and protection.
  • Variable Mounting Options: Multiple mounting locations accommodate different door and frame configurations for versatile installation.
  • Durable Finish Options: Available in aluminum or black finishes with durable coating for long-lasting performance.
  • Cost-Effective Alternative: Provides economical solution where ETH hinges are cost prohibitive and surface door loops are undesirable.
  • Manufacturer Warranty: 3-Year Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Subgroup: Door Cords and Loops
  • Product Type: Door Cords and Loops
  • Series: CDL Series
  • Subcategory: Hinges

Professional Applications

  • Commercial Building Access Control Systems
  • Educational Facility Electronic Locks
  • Healthcare Institution Security Systems
  • Retail Electronic Locking Solutions
  • Industrial Facility Access Points
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties

Why Choose Command Access Quality?

Command Access CDL Concealed Door Loop products deliver professional-grade reliability with patented concealed design and durable aluminum or black finishes. Backed by a 3-Year Warranty for added confidence. Engineered for demanding commercial applications where aesthetic appeal and dependable power transfer are essential.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Electronic Access Controls
Series:
CDL Series
Subcategory:
Hinges
Product Subgroup:
Door Cords and Loops
Commercial/Residential:
Commercial
Product Type:
Door Cords and Loops
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Command Access CDL-AL – Frequently Asked Questions

1) What is a concealed door loop and when would I use one instead of a surface door loop or an electric hinge?
A door loop carries low voltage power from the frame across to a lock on the door leaf. The Command Access CDL is the concealed type: it slides into the door and/or frame so nothing shows when the door is closed, unlike a surface loop that bridges the gap visibly. It is the option to reach for when an electric through-wire hinge (ETH) costs more than the job allows but a surface loop is not acceptable to look at. If you already have an ETH hinge specified and budget is not the issue, the hinge does the same job with no separate part to mortise.
2) Will the Command Access CDL door loop work with a continuous hinge, or only butt hinges?
Both. The CDL is built for continuous hinge and butt hinge openings alike, including full mortise, half mortise, and half surface hinge configurations with standard throw. Multiple mounting locations let you place it where the hinge type and frame profile allow.
3) Can I use a concealed door loop on a door that swings a full 180 degrees?
Yes. The CDL concealed door loop is rated for door swings up to 180 degrees, so it suits openings that lay flat against the wall, such as corridor and equipment room doors where the leaf opens all the way.
4) Do I need to cut the door and frame to install a concealed door loop?
Yes, that is the tradeoff. The CDL's patented design slides into the door and/or frame, which means prep on one or both, unlike a surface loop that screws to the face. Multiple mounting locations are provided so you can pick a spot that clears the hinge and existing lock prep. If the door cannot be machined on site, a surface mounted loop is the practical choice instead.
5) What protects the wire on the Command Access CDL where it crosses the hinge gap?
The transfer uses a 1/4 inch flexible armoured conduit. That armour is what takes the repeated flexing and any pinch at the gap, so the low voltage conductors inside are not the thing absorbing the door cycles.
6) Does the CDL door loop power the lock itself, or do I still need a power supply?
The CDL is a transfer device only. It moves low voltage power from the frame side to the electrified locking device on the leaf, so you still need the power supply and the electrified lock, strike, or exit device it feeds. Plan the loop as one item in the run, not the whole circuit.
7) What finishes does the CDL concealed door loop come in?
Two: aluminum and black, both with a durable coating. Since the loop is concealed when the door is closed, the finish only matters for the portion visible at the hinge edge when the door stands open, so pick whichever disappears against your frame or hinge.
8) Is the Command Access CDL door loop suitable for commercial doors in a school or hospital?
It is a commercial grade product, and Command Access lists it for educational facility electronic locks, healthcare security systems, government and municipal buildings, retail, industrial access points, and multi-tenant residential. Anywhere you are running power to an electrified lock and want the transfer hidden, it applies.
