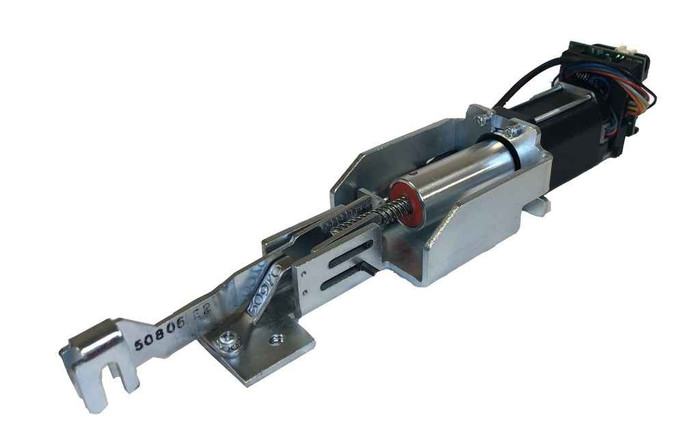

Command Access MLRK1-FAL17 Motorized Latch Retraction Kit for Falcon Dor-o-matic 1690/1790, AHT4/5, and First Choice 3600/3700 Series Exit Device

MLRK1-FAL17 Motorized Latch Retraction Kit for Falcon Dor-o-matic 1690/1790 & First Choice 3600/3700 Exit Devices

The MLRK1-FAL17 by Command Access is a robust, field-installable motorized latch retraction kit engineered for the Falcon Dor-o-matic 1690/1790, AHT4/5, and First Choice 3600/3700 Series exit devices. Designed to simplify retrofits and upgrades for access control, this kit integrates seamlessly into the push bar, with no clearance issues and only requiring a raceway drill for wiring.

Ideal for electrifying the Series 1690 Dor-o-matic exit devices, this solution brings enhanced performance and versatility while maintaining ADA compliance and egress reliability. Its 1 Touch “Push to Set” (PTS) technology makes adjustments faster than ever.

Key Features:

• MM5 Smart Module
  Provides audible diagnostics and power feedback, reducing troubleshooting time and enhancing system visibility.

• 1 TOUCH PTS Technology
  Allows quick post-installation latch engagement adjustment—just press to set.

• Electric Dogging Function
  Rated for continuous duty, and automatically re-engages dogging if the push pad is pulled away.

• Low Torque & High Torque Modes
  Easily field-switchable depending on door size and resistance—now fully supports tall vertical rod doors.

• Extended Wire Run Capability
  Supports up to 300 feet of 18-gauge wiring, ideal for installations where the power supply is located remotely.

• Quick-Connect Cabling
  Includes a 6-foot robust Molex power lead for plug-and-play installation to the MM5 control module.

• 3-Year “No Hassle” Warranty
  Full manufacturer support for peace of mind.

Electrical Specifications:

• Voltage Range: 24VDC ±10%

• System Shutdown: Triggered at >28VDC for over-voltage protection

• Standard Mode: Peak Current 900 mA / Hold Current 215 mA

• High Torque Mode: Peak Current 2A / Hold Current 250 mA

• PTS Adjustment: Approx. 1/4”

Installation & Compatibility:

• Designed for Use With:

  • Falcon Dor-o-matic 1690 & 1790 exit devices

  • AHT4/5 series

  • First Choice 3600 & 3700 exit devices

• Cutdown Details:

  • For 36" devices: trim 1-1/4"

  • For 48" devices: trim 1-1/4"

• Wiring:

  • Max run: 300’ with 18ga wire

  • Cable: 6' power lead + quick Molex connector

• Device Weight: 2 lbs

Whether you're retrofitting a Dor-o-matic 1690 panic device or upgrading to electric latch retraction on a Falcon 1690 series device, the MLRK1-FAL17 delivers top-tier reliability and ease of use—backed by the innovation and quality assurance of Command Access.

MLRK1-FAL17 Cutsheet

Installation Instruction
