Thomas & Betts BC-4 Conduit Bodies, Covers & Gaskets

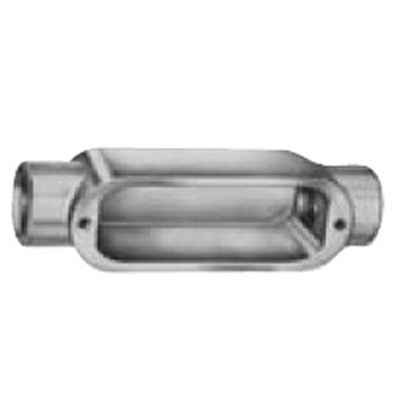

Thomas & Betts BC-4 Die Cast Aluminum Conduit Body with Covers & Gaskets for EMT Applications, 100 Pack

(No reviews yet) Write a Review

Model: BC-4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$340.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts BC-4 Die Cast Aluminum Conduit Body with Covers & Gaskets for EMT Applications

Professional EMT Conduit Connection & Wire Management Solution

The Thomas & Betts BC-4 conduit body delivers reliable electrical connections for EMT conduit systems with die cast aluminum construction and UL certification. This spacious wiring chamber provides convenient conductor pulling and splice access with smooth throats for easy wire installation and retained stainless steel cover screws for secure, long-lasting connections.

Professional Features & Benefits

  • Die Cast Aluminum Construction: Provides superior durability and corrosion resistance for long-term electrical system reliability in demanding environments.
  • 32 Cu In Volume: Spacious wiring chamber offers ample room for conductor splices and connections, reducing installation time and improving accessibility.
  • Smooth Throats: Engineered wire pulling surfaces minimize conductor damage and reduce installation effort for professional results.
  • Retained Stainless Steel Cover Screws: Prevents screw loss during maintenance and ensures consistent, secure cover attachment over time.
  • UL Certification: Meets rigorous safety and performance standards for code-compliant electrical installations.
  • EMT Conduit Compatibility: Specifically designed for seamless integration with electrical metallic tubing systems.
  • Multiple Cover Options: Available with die cast (CV-4) or stamped aluminum (SCV-4) covers plus composition (GKV-4) or neoprene (GKN-4) gaskets for application flexibility.

Technical Specifications

  • A Inches: 7 1/4
  • B Inches: 7 7/8
  • C Inches: 2 1/2
  • Cover Die Cast: CV-4
  • Cover Stamped Aluminum: SCV-4
  • D Inches: 2 1/2
  • Department: Electrical
  • E Inches: 4 3/16
  • F Inches: 3 17/32
  • G Inches: 1 3/8
  • Gasket Composition: GKV-4
  • Gasket Neoprene: GKN-4
  • Inner Package: 2
  • Material: Die Cast Aluminum
  • Order Multiple: 2
  • Outer Package: 10
  • Package Height: 7.2
  • Package Length: 14.8
  • Package Width: 9.8
  • Product Group: Electrical Boxes
  • Product Subgroup: Box Covers
  • T B Sold In Uom: Each
  • T B Weight Per Uom: 1.73 lbs. Each
  • Trade Size Inches: 1/1/04
  • Volume Cu In: 32

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Networks
  • Residential Electrical Installations
  • Institutional Building Projects
  • Retrofit and Maintenance Applications
  • EMT Conduit System Extensions
  • Junction and Splice Point Requirements

Why Choose Thomas & Betts Quality?

Thomas & Betts conduit bodies deliver proven reliability with UL certification and die cast aluminum construction for long-term performance. The precision-engineered design ensures consistent installation results and dependable electrical connections that meet professional standards for safety and durability.

Manufacturer Resources

Product Specs

A Inches:
7 1/4
B Inches:
7 7/8
C Inches:
2 1/2
Cover Die Cast:
CV-4
Cover Stamped Aluminum:
SCV-4
D Inches:
2 1/2
E Inches:
4 3/16
F Inches:
3 17/32
G Inches:
1 3/8
Gasket Composition:
GKV-4
Gasket Neoprene:
GKN-4
Inner Package:
2
Order Multiple:
2
Outer Package:
10
Package Height:
7.2
Package Length:
14.8
Package Width:
9.8
Product Group:
Conduit & Raceway
T B Sold In Uom:
Each
T B Weight Per Uom:
1.73 lbs. Each
Trade Size Inches:
1/1/04
Volume Cu In:
32
Department:
Electrical
Product Subgroup:
Conduit Bodies & Covers
Product Material:
Die Cast Aluminum
Product Type:
Type C Conduit Body

Thomas & Betts BC-4 – Frequently Asked Questions

1) What is a Type C conduit body like the Thomas & Betts BC-4 used for?
A Type C body is an inline pull and splice point. It sits between two runs of conduit on the same straight axis and gives you an opening to pull conductors through or make a splice without cutting in a box. The BC-4 is die cast aluminum and built for EMT systems. If you need to turn a corner instead of running straight through, a C body is the wrong shape for the job.
2) Will the BC-4 conduit body connect to EMT, or do I need a rigid fitting?
The BC-4 is made for electrical metallic tubing. It's listed as an EMT conduit body, so it mates into EMT runs directly. For threaded rigid or IMC you would want a threaded conduit body instead. Crouse-Hinds also builds a combination EMT Type C body, the C15MTC-6 in the Condulet Series 5 line, if you need another option for the same inline application.
3) How much wire fill does the BC-4 conduit body give me for splices?
32 cubic inches of interior volume. That is what you work from when you run your box fill calculation for the conductors and splices landing inside it, and it's generous enough to make up several connections rather than just pull through.
4) Which cover and gasket part numbers go with the Thomas & Betts BC-4?
Two cover choices: CV-4 die cast aluminum, or SCV-4 stamped aluminum. Gaskets are GKV-4 in composition or GKN-4 in neoprene. Pick the neoprene gasket where you need a tighter seal against moisture; the composition gasket is the general-purpose option. Cover screws on the BC-4 are retained stainless steel, so they stay with the cover when you open it up for maintenance.
5) What is the Crouse-Hinds equivalent to the Thomas & Betts BC-4 conduit body?
The closest cross-brand counterpart is the Crouse-Hinds C15MTC-6 Condulet, which is also a Type C conduit outlet body built for combination EMT connection. The Thomas & Betts BC-4 is likewise a Type C conduit body, so both serve the same purpose - a straight-through pull and splice point in an EMT run with a removable cover for access. The BC-4 is die cast aluminum with a 32 cubic inch wiring chamber, so confirm the C15MTC-6 trade size and volume match the run you are tying into before swapping one for the other.
6) How much clearance do I need to mount a BC-4 conduit body?
Lay it out from the published case dimensions: A is 7-1/4 inches, B is 7-7/8 inches, C and D are both 2-1/2 inches, E is 4-3/16 inches, F is 3-17/32 inches and G is 1-3/8 inches. That body is large enough that it needs real room off the wall and along the run, so check it against tight ceiling spaces or behind-equipment locations before you commit the layout.
7) Is the BC-4 conduit body ordered individually or in multiples?
Thomas & Betts sells the BC-4 each, but the order multiple is 2, so quantities go up in pairs. Inner packs hold 2 and the outer carton holds 10. If you are buying for a large job, work your count in twos to avoid a short line.
8) Is die cast aluminum the right material for the BC-4 in a damp or industrial space?
Die cast aluminum resists corrosion and holds up in industrial and commercial environments, which is why the BC-4 is specified for plant conduit networks as well as commercial and institutional buildings. In wash-down or wet locations, pair it with the GKN-4 neoprene gasket rather than the composition GKV-4. Aluminum is not the choice for direct contact with wet concrete or highly caustic chemical exposure.
9) I need to change direction in an EMT run - is a Type C body like the BC-4 the right part?
No. The Thomas & Betts BC-4 and the Crouse-Hinds C15MTC-6 Condulet are both Type C bodies, which are straight-line pull and splice fittings with the opening on the side of the run, not angle fittings. For a turn you want an LB, LL, LR or T style body in the matching trade size. Use the BC-4 where you need access in a continuous run, such as a splice or junction point in an EMT extension.
10) If I standardize on one brand of Type C body across a facility, what should I check between the BC-4 and the Crouse-Hinds C15MTC-6?
Check three things. First, trade size - both are EMT Type C bodies, but the fitting has to match the tubing already run. Second, wiring volume, since the BC-4 offers a 32 cubic inch chamber and your conductor fill calculation is tied to that number. Third, the cover and gasket family, because the BC-4 uses CV-4 or SCV-4 covers while the C15MTC-6 is part of the Crouse-Hinds Condulet Series 5. Picking one family keeps a single set of covers and gaskets on the maintenance shelf.
11) How heavy is a BC-4 conduit body for overhead support planning?
1.73 pounds each. That is body weight only, so add your cover and gasket on top of it. At that weight an unsupported inline body hanging in a long overhead EMT run should be strapped close on both sides rather than carried by the tubing alone.
