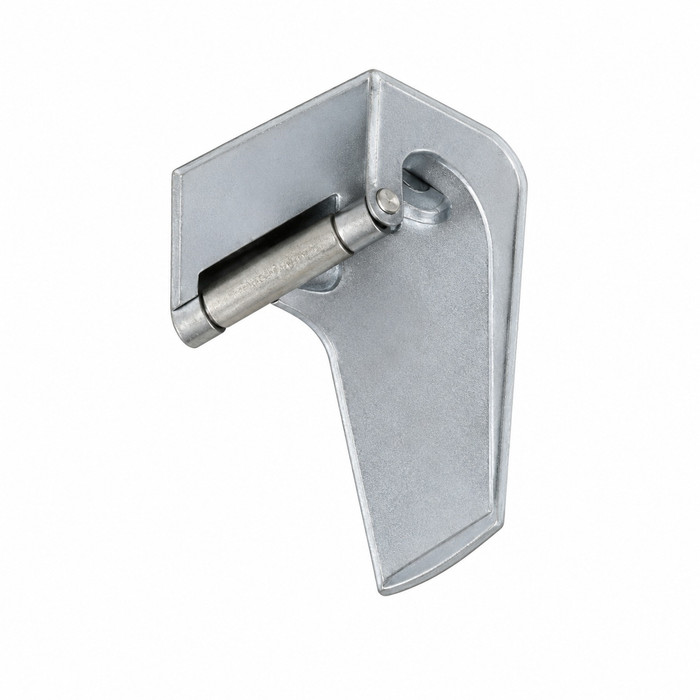

Corbin Russwin 392F24 Grade 1 ED7000 Vertical Rod Top Strike, Hold Back

Corbin Russwin 392F24 Vertical Rod Top Strike with Hold Back for ED7000 Crossbar Exit Devices

Commercial-Grade Vertical Rod Top Strike Accessory for ED7000 Series Exit Devices

The Corbin Russwin 392F24 is a precision-engineered Vertical Rod Top Strike with Hold Back designed specifically for use with ED7000 Crossbar Exit Devices. This replacement component is also standard on ED6400 Devices with Latch Hold-Back, making it a versatile accessory for compatible Corbin Russwin exit device installations. The strike measures 2-3/32" x 1-3/4" x 2-5/32" and includes mounting screws for straightforward integration into compatible door hardware assemblies. Corbin Russwin's commitment to ANSI/BHMA Grade 1 commercial hardware ensures this component meets the rigorous demands of commercial and institutional facilities.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device components are manufactured to ANSI/BHMA Grade 1 standards, delivering the commercial-grade reliability that demanding institutional and commercial facilities require. The 392F24 Vertical Rod Top Strike reflects Corbin Russwin's dedication to precision-engineered door hardware, with exact dimensional specifications of 2-3/32" x 1-3/4" x 2-5/32" ensuring proper fit and function within compatible exit device assemblies. Engineered for professional installation in high-traffic commercial applications where consistent, dependable performance is essential.
