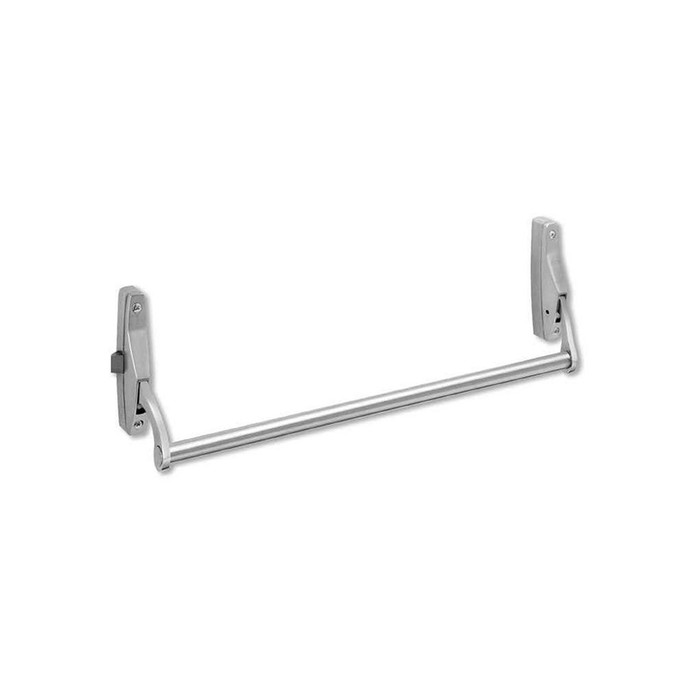

Corbin Russwin ED7200 Grade 1 48" Narrow Stile Crossbar Rim Exit Device

Corbin Russwin ED7200 WO48 48" Narrow Stile Crossbar Rim Exit Device

ED7000 Series Commercial-Grade Crossbar Rim Exit Device for High-Use Applications

The Corbin Russwin ED7200 WO48 is a 48" Narrow Stile Crossbar Rim Exit Device from the trusted ED7000 Series, engineered for high-use, high-abuse applications on narrow and regular stile doors. Designed to accommodate doors up to 48" (1219mm) wide with a minimum stile width of 2-1/2" (64mm), this Grade 1 commercial exit device features heavy cast cases measuring 7-1/2" (191mm) x 1-1/4" (32mm) and a 5/8" (16mm) throw pivoted latchbolt. Constructed from base metals including brass, bronze, and stainless steel, the ED7200 WO48 delivers dependable egress performance across schools, healthcare facilities, government buildings, and commercial properties.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Schools and Universities
• Healthcare Facilities
• Government and Municipal Buildings
• Commercial Office and Retail Establishments
• Industrial and Warehouse Facilities
• Hotels and Conference Centers
• Transportation and Utility Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin ED7000 Series exit devices are built with heavy-duty construction using base metals — brass, bronze, and stainless steel — to deliver exceptional durability in high-use, high-abuse environments. The ED7200 WO48 carries a Grade 1 commercial rating and is backed by a 5 Year Limited warranty, reflecting Corbin Russwin's commitment to rigorous life safety and security standards. Engineered for demanding commercial applications where dependable egress performance and long-term reliability are essential, the ED7000 Series continues Corbin Russwin's legacy of meeting the most stringent requirements across a wide range of facility types.
