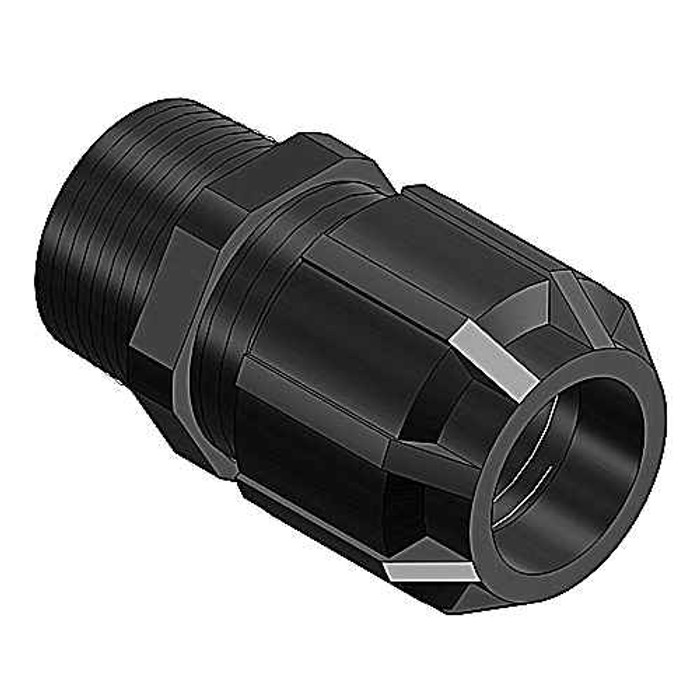

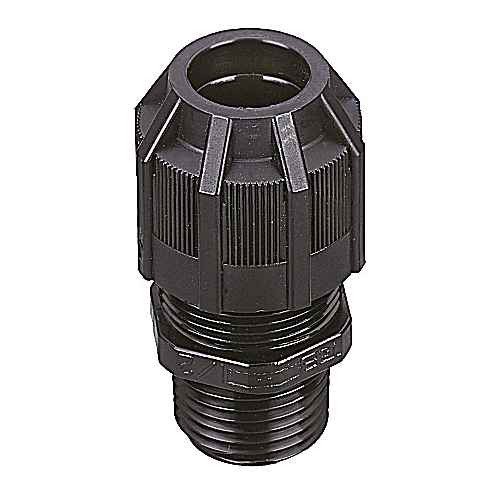

Thomas & Betts 3/4 Inch NPT Straight Cord Connector w/ IP65 Protection

Thomas & Betts 3/4 Inch NPT Straight Cord Connector with IP65 Protection

Professional Cable Entry Solution with Superior Strain Relief

The Thomas & Betts straight cord connector delivers reliable cable entry performance for electrical enclosures with 3/4 inch NPT threading and IP65 environmental protection. Constructed from durable Polyamide/Nylon 6.6 material, this connector accommodates conductor ranges from 0.125 to 0.375 inch (3.2-9.5mm) while providing superior strain relief and gland nut design to restrict cable bending in ordinary, wet, or dry locations.

Professional Features & Benefits

• 3/4 Inch NPT Threading: Standard pipe thread connection ensures secure mounting and compatibility with common electrical enclosures.
• IP65 Environmental Protection: Provides dust-tight and water-resistant sealing for reliable performance in challenging conditions.
• Polyamide/Nylon 6.6 Construction: Delivers exceptional durability and chemical resistance for long-term service life.
• Wide Temperature Range (-34 to +105�C): Maintains performance across extreme temperature conditions for versatile applications.
• Superior Strain Relief Design: Gland nut configuration restricts cable bending and protects conductor integrity.
• Conductor Range 3.2-9.5mm: Accommodates various cable diameters for flexible installation requirements.
• UL E13938 & CSA 52391 Listed: Meets rigorous safety standards for professional electrical installations.

Technical Specifications

• Color: Black
• Colour: Black
• Conductor Range: 0.125 Inch/3.2mm to 0.375 Inch/9.5mm
• Degree Of Protection Ip: IP65
• Department: Electrical
• Environmental Conditions: Ordinary, Wet, or Dry Locations
• Etim: EC000441 Cable screw gland
• Inner Dimensions Inches: 5x4.5x3
• Inner Quantity: 10
• Material: Polyamide/Nylon 6.6
• Material Quality: Polyamide (PA)
• Nominal Thread Size Inch Gas Pipe Thread: 3/4 inch
• Operating Temperature: -34-+105�C
• Outer Dimensions Inches: 16.4x11.1x5.8
• Outer Quantity: 100
• Product Details: Cord Connectors-Straight
• Product Group: Connectors
• Product Model: Straight
• Product Subgroup: Electrical Connectors
• Product Type: Cord Connectors-Straight
• Standard: UL E13938, CSA 52391
• Strain Relief: Y
• Suitable For Cable Diameter: 3.2-9.5mm
• Temperature Rating: -34 to +105 Degrees C
• Thread Length: 15.875mm
• Thread Type: NPT
• Unspsc: 39121431 Cable gland connector
• Weight Uom: 8.56 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Electrical Enclosures
• Commercial Building Electrical Systems
• Manufacturing Equipment Cable Entry
• Outdoor Electrical Installations
• Process Control and Automation Systems
• Marine and Harsh Environment Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts cord connectors deliver proven reliability with UL E13938 and CSA 52391 listings, ensuring compliance with professional electrical standards. The reduced overall size design fits into tighter spaces while maintaining IP65 environmental protection and extended temperature range performance from -34 to +105�C for demanding applications.
