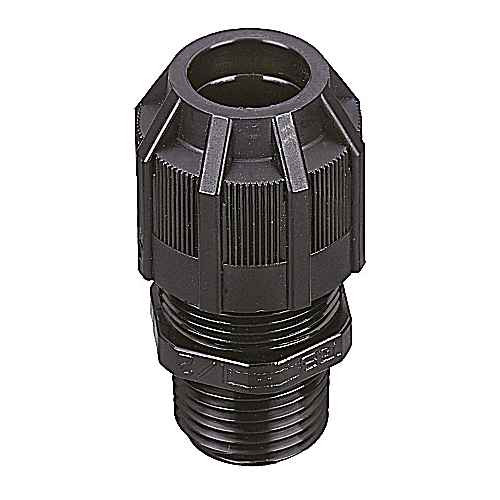

Thomas & Betts 3/4 Inch NPT Straight Cord Connector with IP65 Protection

Thomas & Betts 3/4 Inch NPT Straight Cord Connector with IP65 Protection

Professional Cable Entry Solution for Wet and Dry Locations

The Thomas & Betts 3/4 inch NPT straight cord connector delivers reliable cable entry protection with IP65 rating for ordinary, wet, or dry locations. Constructed from durable Polyamide/Nylon 6.6 material, this black cord connector accommodates cable diameters from 12.7-19.0mm (0.500-0.750 inch) with superior strain relief and reduced overall size for tight space installations.

Professional Features & Benefits

• IP65 Protection Rating: Provides dust-tight and water-resistant sealing for reliable performance in challenging environments.
• 3/4 Inch NPT Threading: Standard pipe thread connection ensures secure mounting and compatibility with common enclosures.
• Polyamide/Nylon 6.6 Construction: Delivers exceptional durability and chemical resistance for long-term reliability.
• Superior Strain Relief Design: Gland nut restricts cable bending while providing extended range strain relief protection.
• Wide Temperature Range: Operates reliably from -34�C to +105�C for diverse environmental conditions.
• UL and CSA Listed: Meets UL E13938 and CSA 52391 standards for professional electrical installations.
• Compact Design: Reduced overall size fits into tighter spaces while maintaining full functionality.

Technical Specifications

• Color: Black
• Colour: Black
• Conductor Range: 0.500 Inch/12.7mm to 0.750 Inch/19.0mm
• Degree Of Protection Ip: IP65
• Department: Electrical
• Environmental Conditions: Ordinary, Wet, or Dry Locations
• Etim: EC000441 Cable screw gland
• Inner Dimensions Inches: 6x4.5x3
• Inner Quantity: 10
• Material: Polyamide/Nylon 6.6
• Material Quality: Polyamide (PA)
• Nominal Thread Size Inch Gas Pipe Thread: 3/4 inch
• Operating Temperature: -34-+105�C
• Outer Dimensions Inches: 12.75x11x8.75
• Outer Quantity: 100
• Product Details: Cord Connectors-Straight
• Product Group: Connectors
• Product Model: Straight
• Product Subgroup: Electrical Connectors
• Product Type: Cord Connectors-Straight
• Standard: UL E13938, CSA 52391
• Strain Relief: Y
• Suitable For Cable Diameter: 12.7-19.0mm
• Temperature Rating: -34 to +105 Degrees C
• Thread Length: 15.875mm
• Thread Type: NPT
• Unspsc: 39121431 Cable gland connector
• Weight Uom: 7.63 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Enclosures
• Outdoor Electrical Equipment Installations
• Commercial Building Electrical Systems
• Manufacturing Equipment Cable Entry
• Marine and Harsh Environment Applications
• HVAC Control System Connections
• Process Control and Automation Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts cord connectors deliver proven reliability with UL E13938 and CSA 52391 listings, ensuring compliance with professional electrical standards. The IP65 protection rating and Polyamide/Nylon 6.6 construction provide long-term durability in demanding environments, while the wide operating temperature range from -34�C to +105�C ensures consistent performance across diverse applications.
