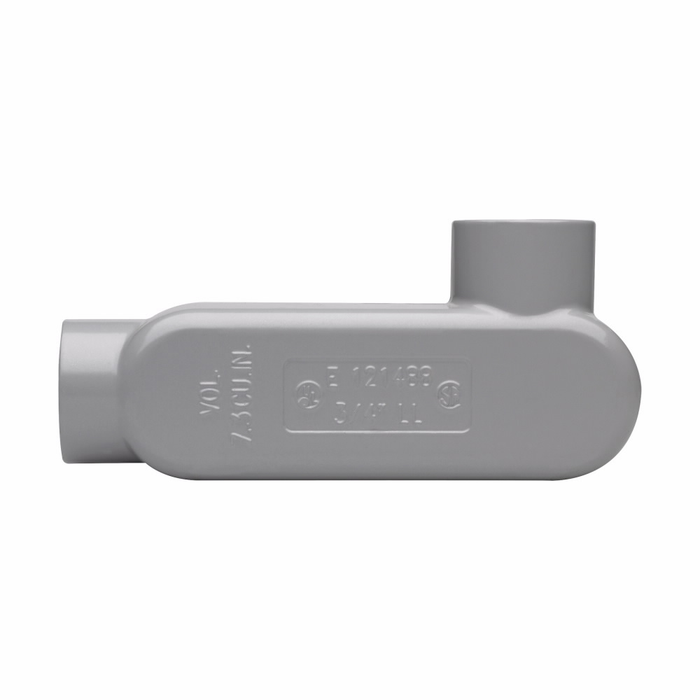

Crouse-Hinds Condulet Series 5 Type LL Conduit Outlet Body, Copper-Free Aluminum

Crouse-Hinds Condulet Series 5 Type LL Conduit Outlet Body, Copper-Free Aluminum

(No reviews yet) Write a Review

Model: LL15

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds Condulet Series 5 Type LL Conduit Outlet Body, Copper-Free Aluminum

The Crouse-Hinds Condulet Series 5 Type LL Conduit Outlet Body is a rugged, code-compliant fitting engineered to provide pull, junction, and wiring access points in Rigid and IMC conduit runs. Built from copper-free aluminum, this LL-shape body resists corrosion while keeping installed weight low compared to cast iron alternatives, making it a preferred choice for commercial and industrial raceway systems. This family is available in trade sizes ranging from 1/2" through 1-1/2", allowing electricians to standardize on a single, trusted Condulet design across a variety of conduit runs. The LL configuration provides a left-hand outlet orientation, simplifying conductor pulls and 90-degree direction changes where straight-through bodies cannot be used.

Key Features

  • Trade Size Range: Available from 1/2" through 1-1/2" to fit a wide range of Rigid and IMC conduit installations.
  • Durable Construction: Copper-free aluminum body resists corrosion and reduces installed weight versus traditional cast iron or malleable iron fittings.
  • Rigid/IMC Compatibility: Threaded hubs are sized for direct connection to Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC) systems.
  • LL Shape Design: The Type LL outlet configuration provides a left-hand 90-degree access point, simplifying conductor routing and pulling at direction changes.
  • Condulet Series 5 Engineering: Part of the long-established Crouse-Hinds Condulet product line, recognized industry-wide for dependable conduit outlet body performance.
  • Removable Cover Access: Provides a serviceable access point for pulling, splicing, and inspecting conductors without disturbing the conduit run.

Technical Specifications

  • Product Type: Conduit
  • Material: Copper-Free Aluminum
  • Shape: LL
  • Trade Sizes: 1/2", 1-1/2"
  • Conduit Compatibility: Rigid/IMC

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Rigid and IMC Conduit Raceway Systems
  • Conductor Pull Points and Direction Changes
  • Junction and Splice Access on Conduit Runs
  • New Construction and Retrofit Conduit Systems

Why Crouse-Hinds?

Crouse-Hinds has built the Condulet Series 5 line on decades of proven conduit outlet body design, and the Type LL body continues that reputation with copper-free aluminum construction suited for demanding Rigid and IMC conduit systems. Electricians rely on the Condulet name for consistent thread engagement, dependable cover sealing, and long-term corrosion resistance in the field. Choosing Crouse-Hinds means specifying a fitting built to perform reliably across the full range of trade sizes offered in this Series 5 LL family.

Manufacturer Resources

Product Specs

list_batch:
CRS-20260917
Product Type:
Conduit Body
Product Material:
Copper-Free Aluminum
Configuration:
LL
Product Size:
1/2" - 1-1/2"
Department:
Electrical
Product Subgroup:
Electrical

Crouse-Hinds LL15 – Frequently Asked Questions

1) What does a Type LL conduit body do that a Type C or Type T body won't?
The LL shape gives you a left-hand 90 degree outlet, so you get an access opening at a direction change rather than straight through the run. A C body is a straight-through pull point and a T body branches three ways. If you need to turn the raceway and still have a place to pull or splice conductors, the LL is the body for it. Crouse-Hinds also builds the mirror-image LR with the opening on the right, so pick based on which side of the conduit you need to reach once the body is mounted.
2) Will a Crouse-Hinds LL Condulet thread onto IMC, or is it rigid only?
Both. The threaded hubs on the Series 5 LL body are sized for direct connection to Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC), which share the same NPT-style conduit thread per trade size. Pulling onto EMT would need a separate threaded adapter or compression connector, since EMT is unthreaded.
3) What trade sizes does the Crouse-Hinds Series 5 LL conduit body come in?
The copper-free aluminum LL family runs 1/2 inch through 1-1/2 inch trade size. The two orderable bodies are LL15 at 1/2 inch and LL55 at 1-1/2 inch, so match the part number to the conduit you are landing rather than to the box size you want.
4) Is copper-free aluminum a problem in a corrosive or wash-down area?
Copper-free aluminum is specified precisely because the low copper content resists corrosion, and it keeps installed weight down compared with cast or malleable iron fittings on the same run. For heavy chemical exposure many specifiers still call out iron or a coated body, so check the spec on your drawing. For general commercial and industrial raceway, the aluminum LL is the standard choice.
5) Does the LL Condulet come with a cover and gasket, or do I order those separately?
The LL body is supplied as the body itself with a removable cover for pulling, splicing and inspecting conductors. Covers and gaskets for Condulet bodies are sold as separate line items in the Crouse-Hinds catalog by body size, so if your install needs a specific cover type (blank, neoprene-gasketed, or wedge-nut) or a replacement gasket, order it to match the trade size of the body.
6) Can I use an LL body as a pull point instead of installing a 90 degree elbow and a junction box?
That is what it is for. The LL gives you the direction change and the wiring access in one fitting, so you avoid an elbow plus a separate box on the run. Keep in mind it is an outlet body, not a device box, and conductor fill and pull geometry still have to work for the wire size you are pulling in that trade size, 1/2 inch through 1-1/2 inch.
7) I'm standardizing fittings across a building. Can I spec one Condulet LL design for all the conduit sizes in the job?
Yes, within 1/2 inch to 1-1/2 inch. The Series 5 LL family carries the same copper-free aluminum body design across that range, so a property manager or MRO buyer can hold one fitting style and just stock the sizes in use. Above 1-1/2 inch you move outside this family and need a larger body line.
8) Which Crouse-Hinds part number do I order for a 1/2 inch LL aluminum body?
LL15 is the 1/2 inch copper-free aluminum Type LL body. The 1-1/2 inch version is LL55. Those are the manufacturer part numbers to quote to a distributor.
